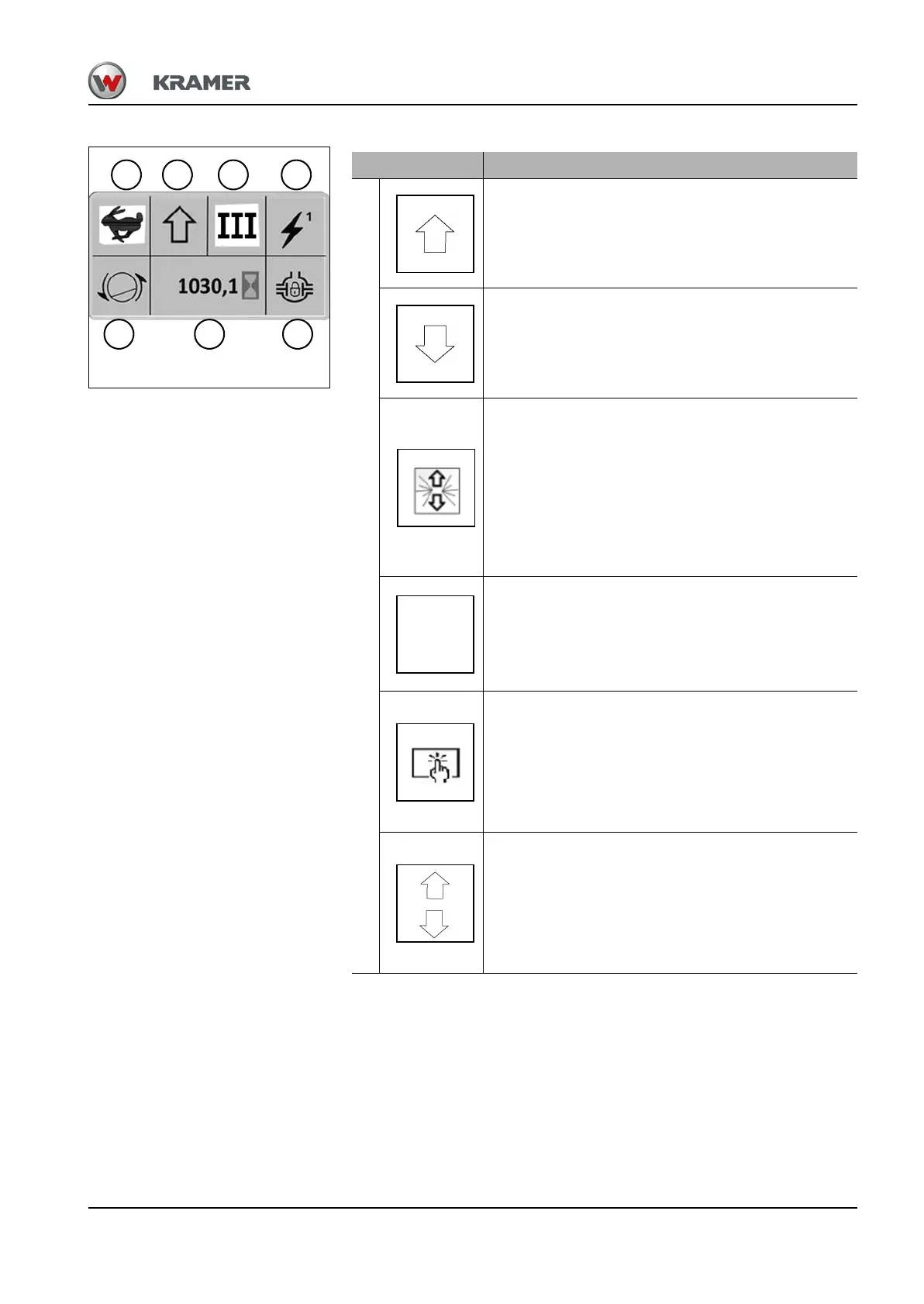

Putting into operation 4
Indication Meaning
B
Indicator display – forward travel direction
Illuminates if the forward travel direction is enabled.
– see chapter 5 “Selecting a travel direction and
starting machine travel” on page 5-13
Indicator display – reverse travel direction
Illuminates if the reverse travel direction is enabled.
– see chapter 5 “Selecting a travel direction and
starting machine travel” on page 5-13
Indicator display – neutral check
Illuminates after the machine is turned on and
electronics check whether all the control elements of
the machine are in neutral.
➥ During the neutral check, both turn indicators
flash in the display.
➥ The indicator display extinguishes when the
machine is ready for travel operation.
Indicator display – neutral travel direction
Illuminates when the travel direction has been
disabled and the machine is in neutral
– see chapter 5 “Slowing the machine and stopping”
on page 5-15.
Warning indicator– Error "STOP"
Illuminates if the machine electronics report a critical
error during operation.
➥ An error message is displayed in the digital
display 45 in area F as error code.
➥ Warning light 39 illuminates.
Warning indicator – CAN-Bus outage
Illuminates if the CAN-Bus has failed and no more
warnings can be issued.
➥ A warning signal sounds
for approx. 10 seconds.
➥ The warning light 39 illuminates.
