Wacker Neuson KRAMER 5055e

BA 357-00 * 3.0 * 35700_05_Bedienung.fm 5-59
Operation 5
Fitting attachments with hydraulic function
to KRAMER quickhitch
A hydraulic attachment (for example a multipurpose bucket)
can be operated with the 3rd control circuit.
To do this, connect the flexible lines.
NOTICE
In order to avoid damage, do not connect the hydraulic lines crosswise,
otherwise the attachment functions are inverted and the hydraulic lines
are squeezed by tilting the attachment in and out.
► Check the attachment for correct function after connecting.
1. Fitting attachments similar to those without hydraulic function
– see "Fit and lock attachments without any hydraulic function to
KRAMER quickhitch" on page 5-57.
2. Connecting hydraulic lines to the machine
– see "Connecting hydraulic lines between machine and attachment"
on page 5-40.
Check the functioning of the attachment
The function of switch 52 on the joystick is described as seen in travel
direction!

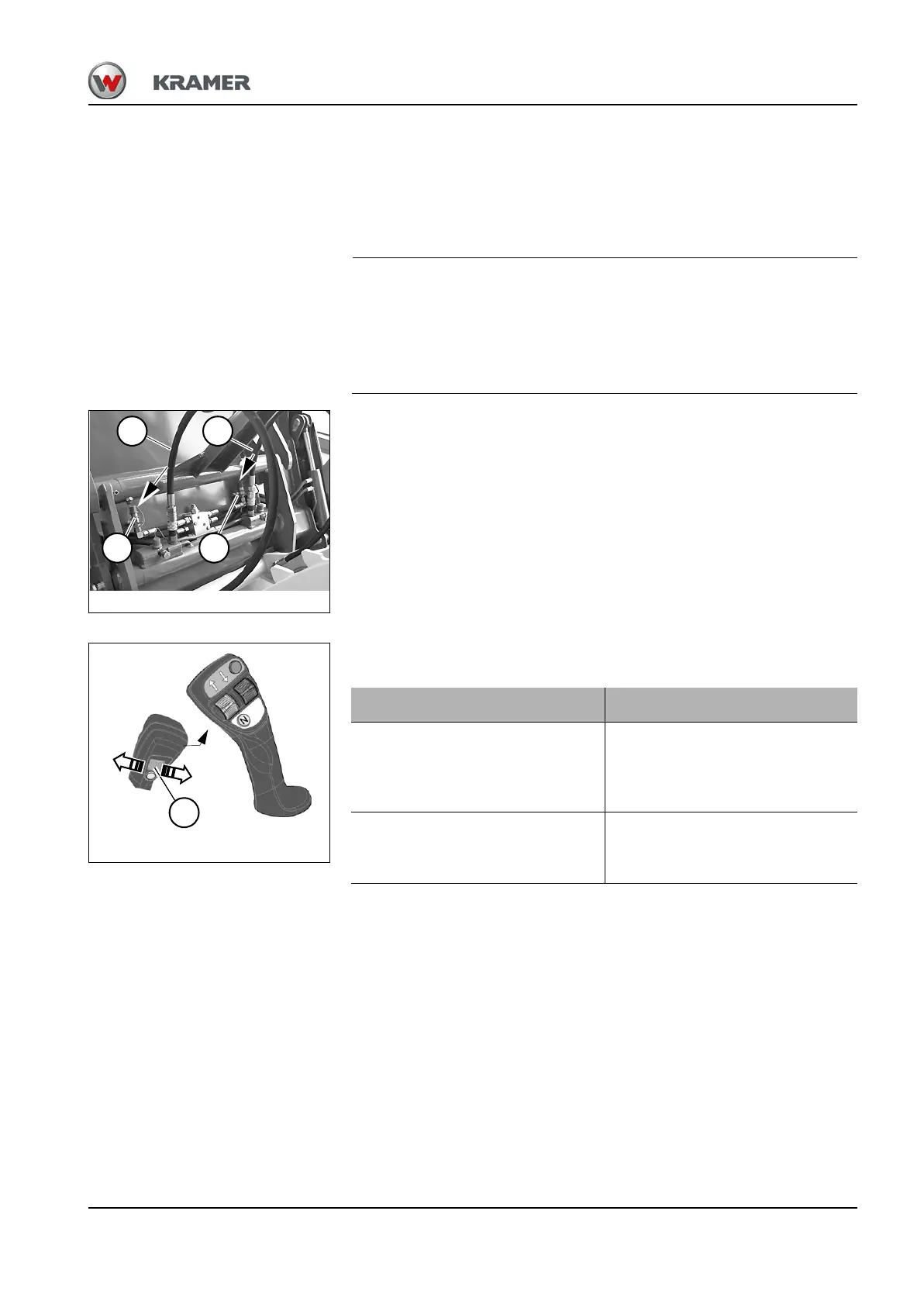

Fig. 142
CD
B A
Fig. 143
52
B
A
Operation via 3rd control circuit Result
Press switch 52 on the
joystick to the right B.
This applies pressure to the
hydraulic line (blue) on the right
and opens the multipurpose
bucket, for example.
Press switch 52 on the
joystick to the left A.
This applies pressure to the
hydraulic line (red) on the left and
closes the multipurpose bucket.
