Control Features and Connections – Rear Panel microQ Keyboard
11 Waldorf microQ User´s Manual

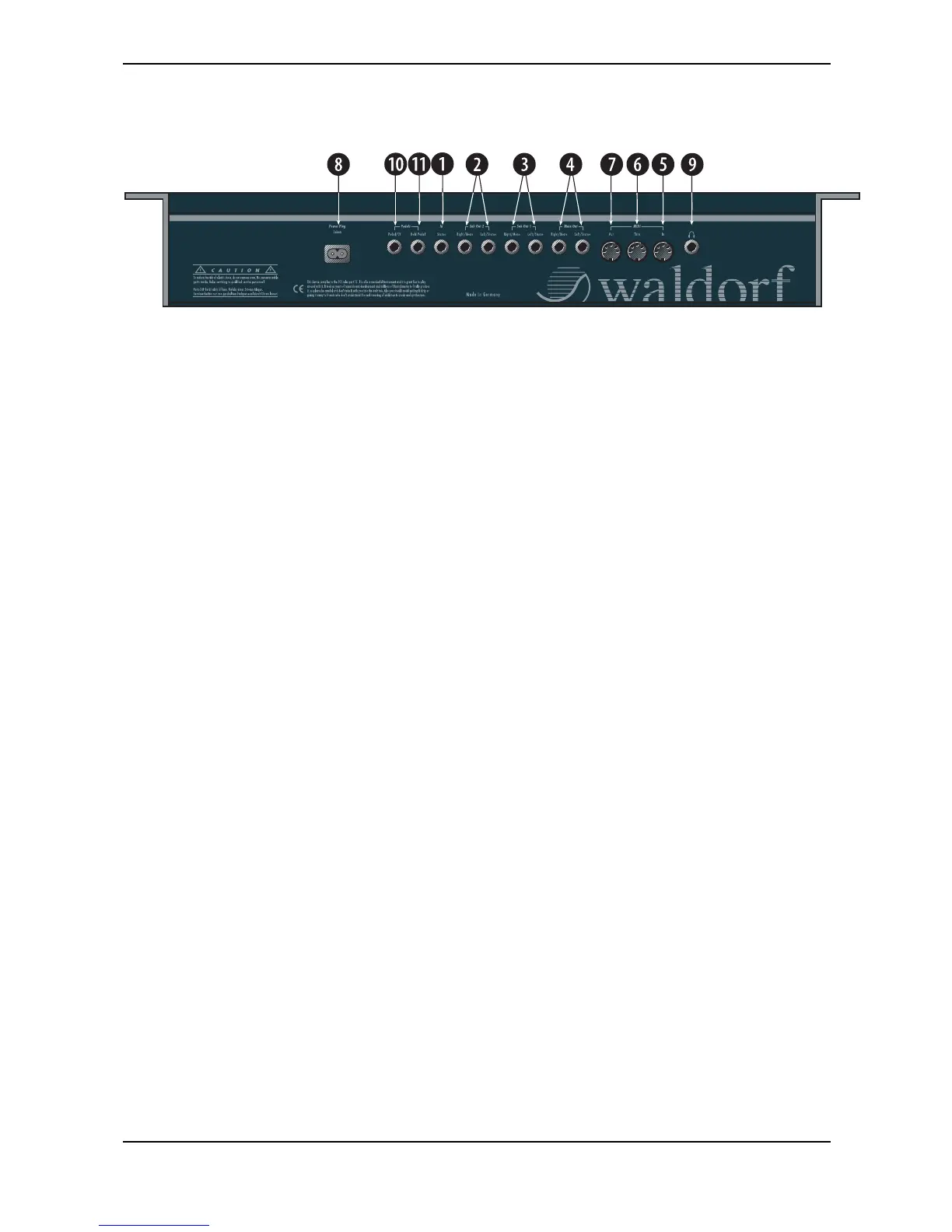

Rear Panel microQ Keyboard
4. Rear Panel microQ Keyboard
Stereo External In jack for feeding external audio
signals into the Mixer section.
Main Out jacks. Deliver a stereo line level
output signal for connection to a mixing desk or
amplifier.
Sub Out 1 jacks. Deliver a stereo line level
output signal for connection to a mixing desk or
amplifier.
Sub Out 2 jacks. Deliver a stereo line level
output signal for connection to a mixing desk or
amplifier.
MIDI In jack. Used to receive MIDI data from an
external device.
MIDI Thru jack. Echoes MIDI data received at
the MIDI In.
MIDI Out jack. Used to transmit MIDI data to an
external device.
Power supply socket 100…240V AC
Stereo Headphone jack
Control Pedal/CV In jack for connecting foot
controllers or analog control voltages
Hold pedal jack for connecting sustain pedals
