Control Features and Connections - Rear Panel microQ Rack version
Waldorf microQ User´s Manual 10
Rear Panel microQ Rack version

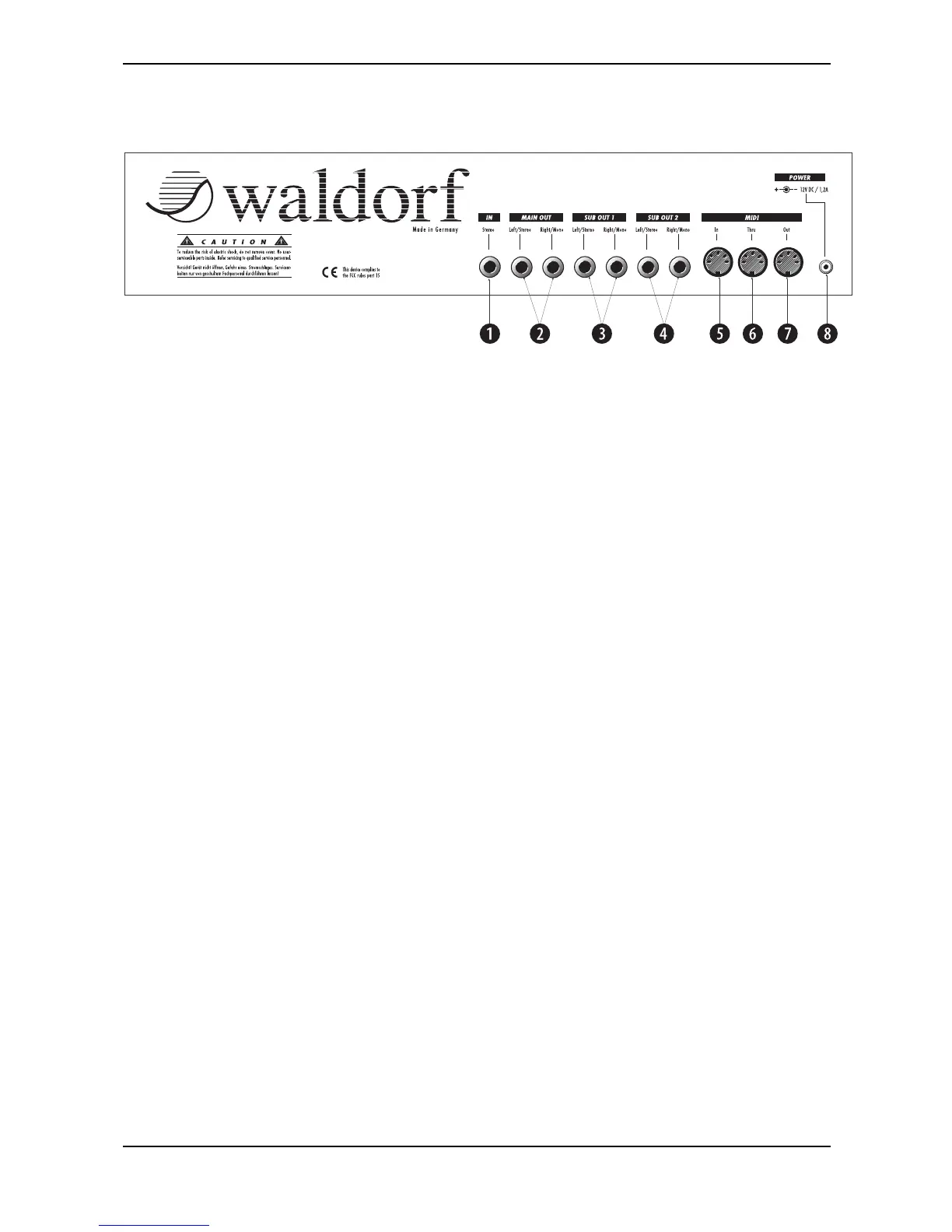

Picture 3: Rear Panel
쐃 Stereo External In jack for feeding external audio
signals into the Mixer section.
쐇 Main Out jacks. Deliver a stereo line level
output signal for connection to a mixing desk or
amplifier.
쐋 Sub Out 1 jacks. Deliver a stereo line level
output signal for connection to a mixing desk or
amplifier.
쐏 Sub Out 2 jacks. Deliver a stereo line level
output signal for connection to a mixing desk or
amplifier.
쐄 MIDI In jack. Used to receive MIDI data from an
external device.
쐂 MIDI Thru jack. Echoes MIDI data received at
the MIDI In.
쐆 MIDI Out jack. Used to transmit MIDI data to an
external device.
쐊 Power supply socket 100…240V AC
