Assembly

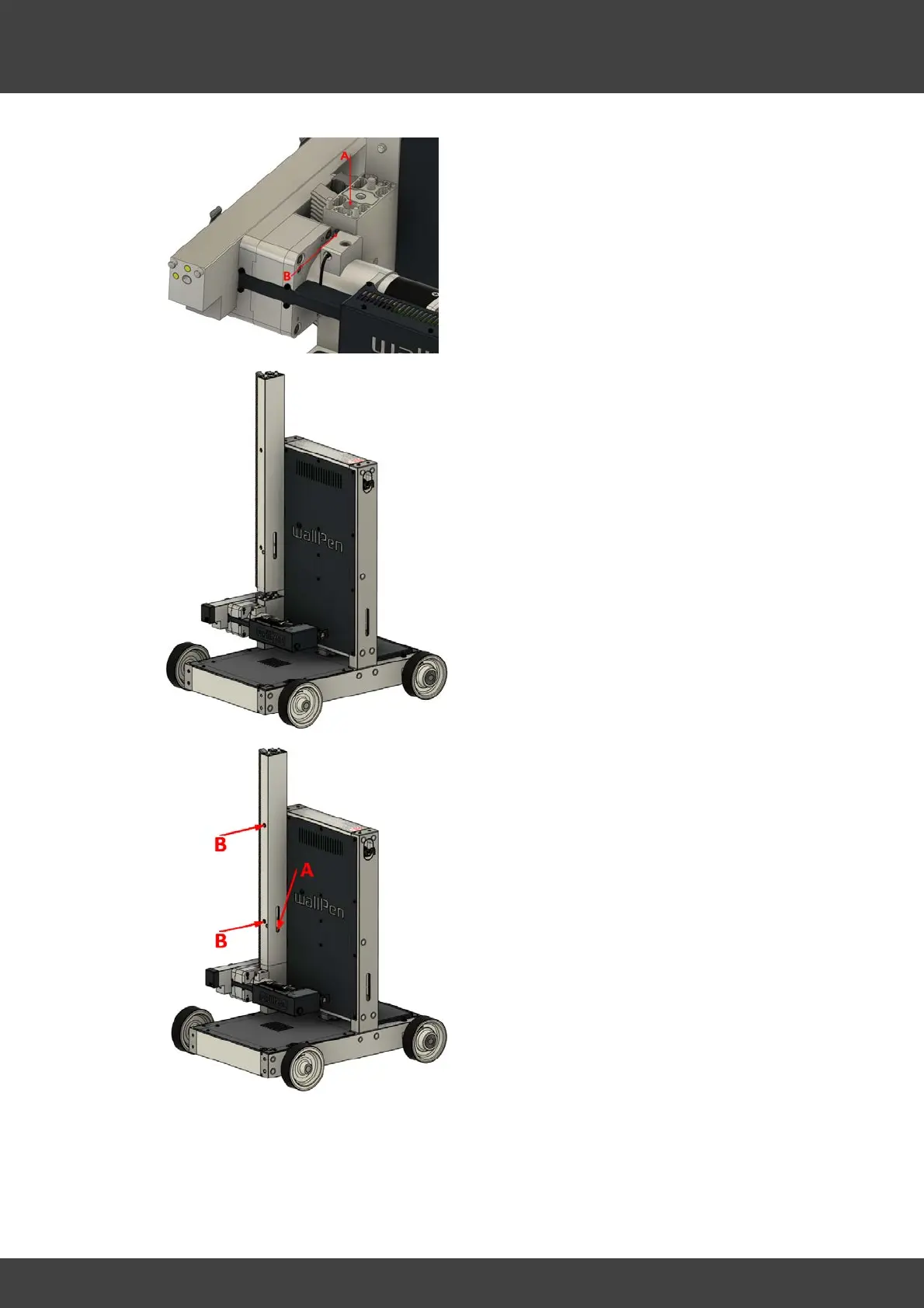

First tighten screw "A" only very lightly.
Then gently tighten screw "B" and do the
same with screw "A".
Hold the base axis - as shown in the figure
- approx. 3 cm above the slide profile
against the control cabinet profile. Here,
the axis is guided by two locating pins.
Carefully lower the base axis onto the slide
profile und gently tighten screw "A" and
then the two screws "B".
