Wisotronic 1-channel
Operating instructions
7.2.1.15 Active during leave?
Here you can activate or deactivate the sun control during your leave.
To change this setting, set or delete the checkmark in the line
[Active during leave?] by turning the touchwheel.
The [---] function button deletes the checkmark; the [Stand.] function but-
ton sets the factory setting.
7.2.1.16 Active during absence?
Here you can activate or deactivate the sun control during your absence.
To change this setting, set or delete the checkmark in the line
[Active during absence?] by turning the touchwheel.
The [---] function button deletes the checkmark; the [Stand.] function but-
ton sets the factory setting.
7.2.1.17 Measured value photo
The line “Measured value Photo” indicates the outdoor brightness currently
measured and is for information only.
7.2.1.18 Correct use of the sun
control
The setting values for the sun control described above are addressed below
in more detail. Using an example, the following graphic demonstrates sche-
matically how the outdoor brightness can change in the course of a certain
time period:

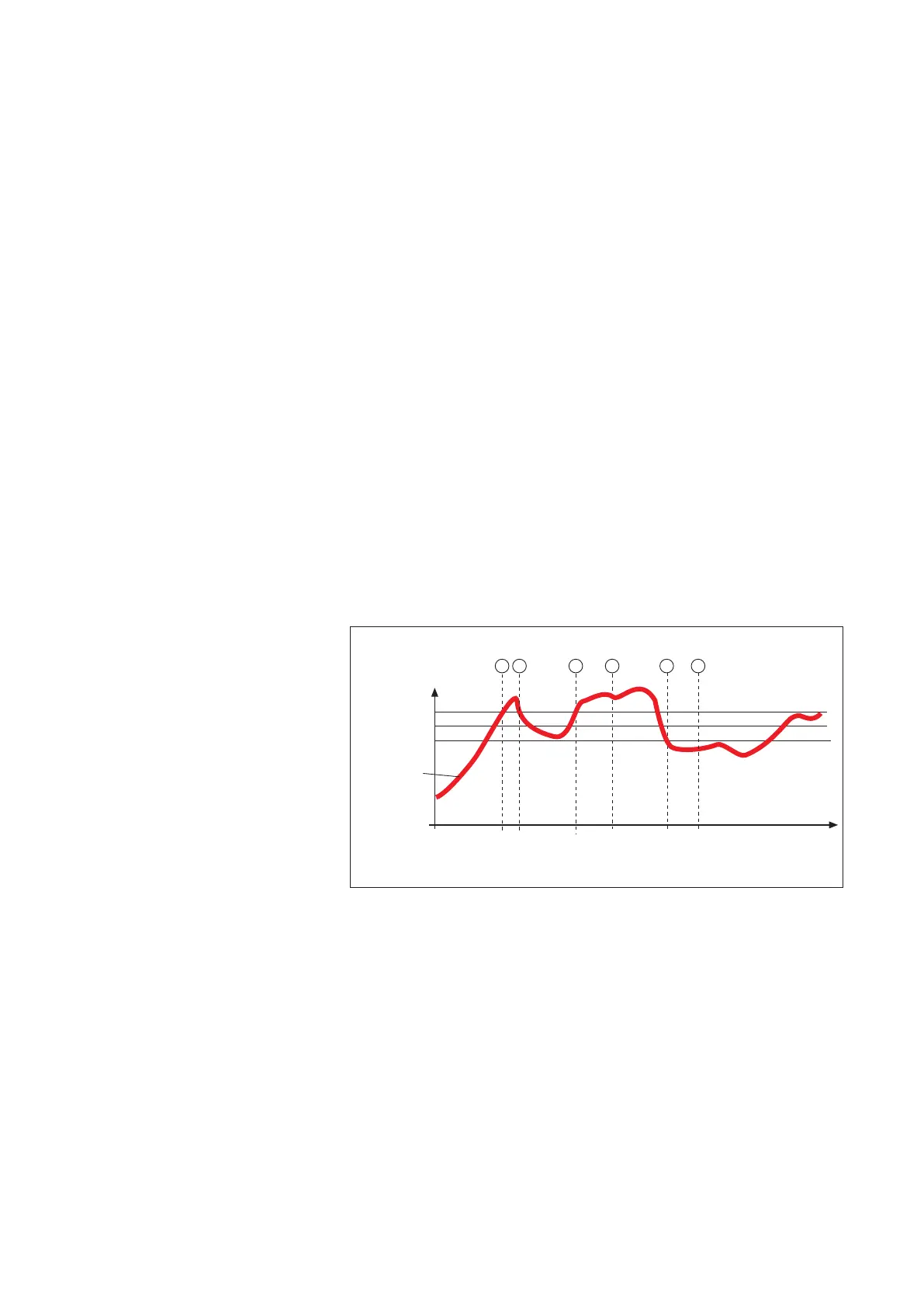

Brightness curve
Brightness in klx
Limit value SUN
Limit value CLEAR
Limit value CLOUD
Time
< 2 Min
= 2 Min = 2 Min
Delay CLEAR
Delay SUN
1 2 3 4 5 6
Delay CLOUD
Fig. 12 Brightness curve and movement behaviour
The bold black curve represents the course of brightness; the three horizon-
tal lines are the limit values you have set for raising or lowering the sun shad-
ing product. The vertical dashed lines mark the activation or deactivation
delay times. Assuming you have set 2 minutes for these
delay times, the following reaction of the sun shading will occur:
Sun control
