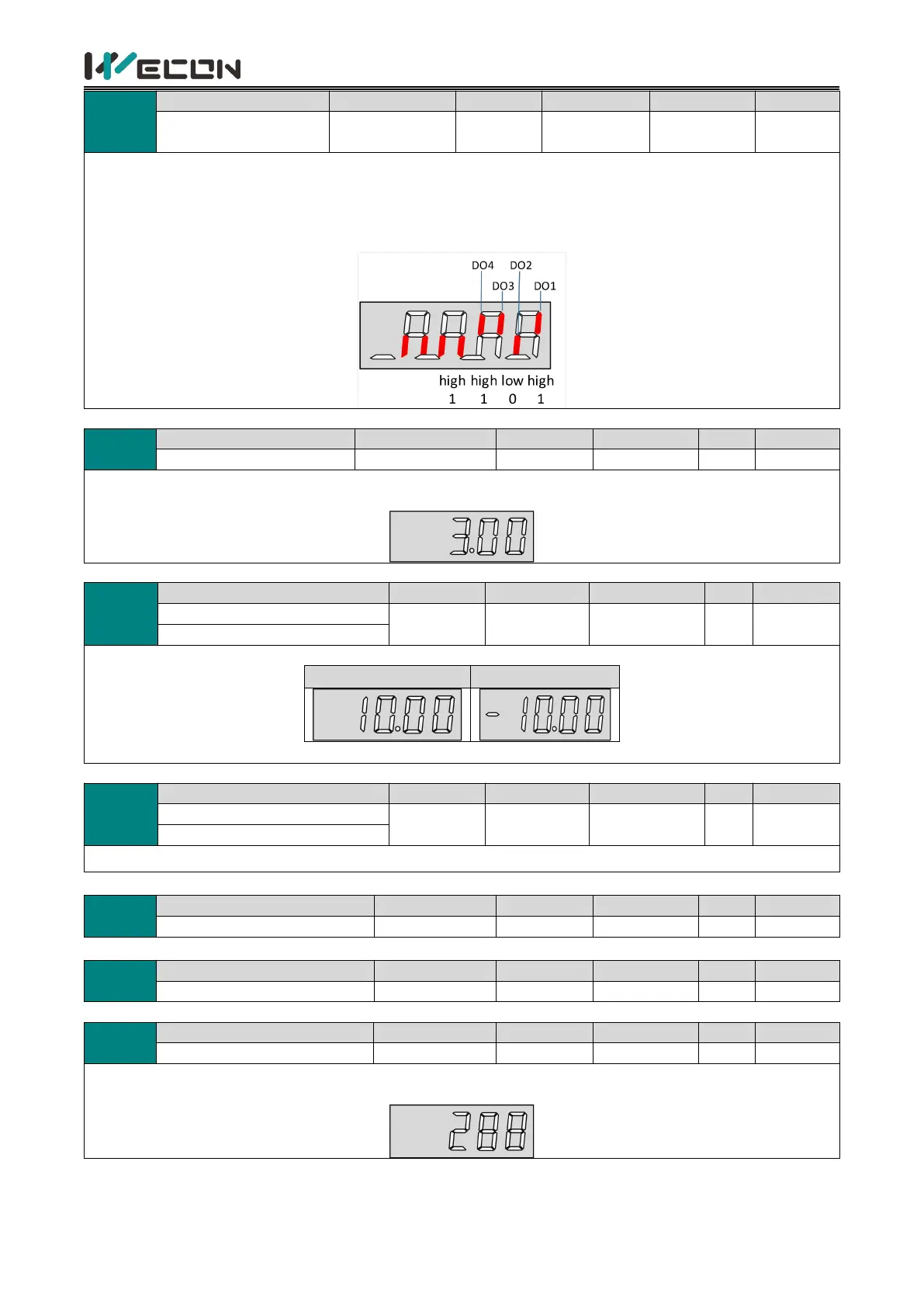

Wecon VD2F-010SA1P - Page 97

Wecon VD2 SA Series Servo Drives Manual (Lite V1.1)
WECON technology Co., Ltd
91
U0-19
Monitoring name
Range
Category
Panel display
Unit
Data type
DO output signal status
00000000 to
00001111
Universal
Binary
Encoder unit
16-bit
Display the current level status of 4 DO terminals. The upper part of the digital tube of servo drive panel is lit up
to indicate a high level (denoted by "1"). The lower part is lit up to indicate a low level (denoted by "0").
Take the DO1, DO2 and DO3 terminals as the high level and DO2 as the low level as an example. The
corresponding binary code is "1101", and Wecon servo upper computer debugging software U0-17 displays the
current binary value is 0b0000 1101. The panel of servo drive is displayed as below.
U0-20
Monitoring name
Range
Category
Panel display
Unit
Data type
Real-time load inertia ratio
0 to 1000000
Universal
Decimal
%
16-bit
Display the current load inertia ratio. If the load inertia ratio is 3 times (300%) , the panel of servo drive is
displayed as below.
U0-21
Monitoring name
Range
Category
Panel display
Unit
Data type
AI1 input voltage value
-
Universal
Decimal
V
16-bit
Reserved☆
Display the actual sampling voltage of analog channel 1.
10.00V display
-10.00V display
“
☆
” indicates that the VD2F servo drive does not have this monitoring.
U0-22
Monitoring name
Range
Category
Panel display
Unit
Data type
AI2 input voltage value
-
Universal
Decimal
V
16-bit
Reserved☆
“
☆
” indicates that the VD2F servo drive does not have this monitoring.
U0-23
Monitoring name
Range
Category
Panel display
Unit
Data type
Vibration Frequency
-
Universal
Decimal
Hz
16-bit
U0-24
Monitoring name
Range
Category
Panel display
Unit
Data type
Vibration amplitude
-
Universal
Decimal
rpm
16-bit
U0-25
Monitoring name
Range
Category
Panel display
Unit
Data type
Forward torque limit value
0 to 300
Universal
Decimal
%
16-bit
Display the set value of P01-15 (forward torque limit) of servo drive. If U0-25 is 288%, the panel of servo drive is
displayed as below.
