Wecon VD2 SA Series Servo Drives Manual (Lite V1.1)
WECON technology Co., Ltd

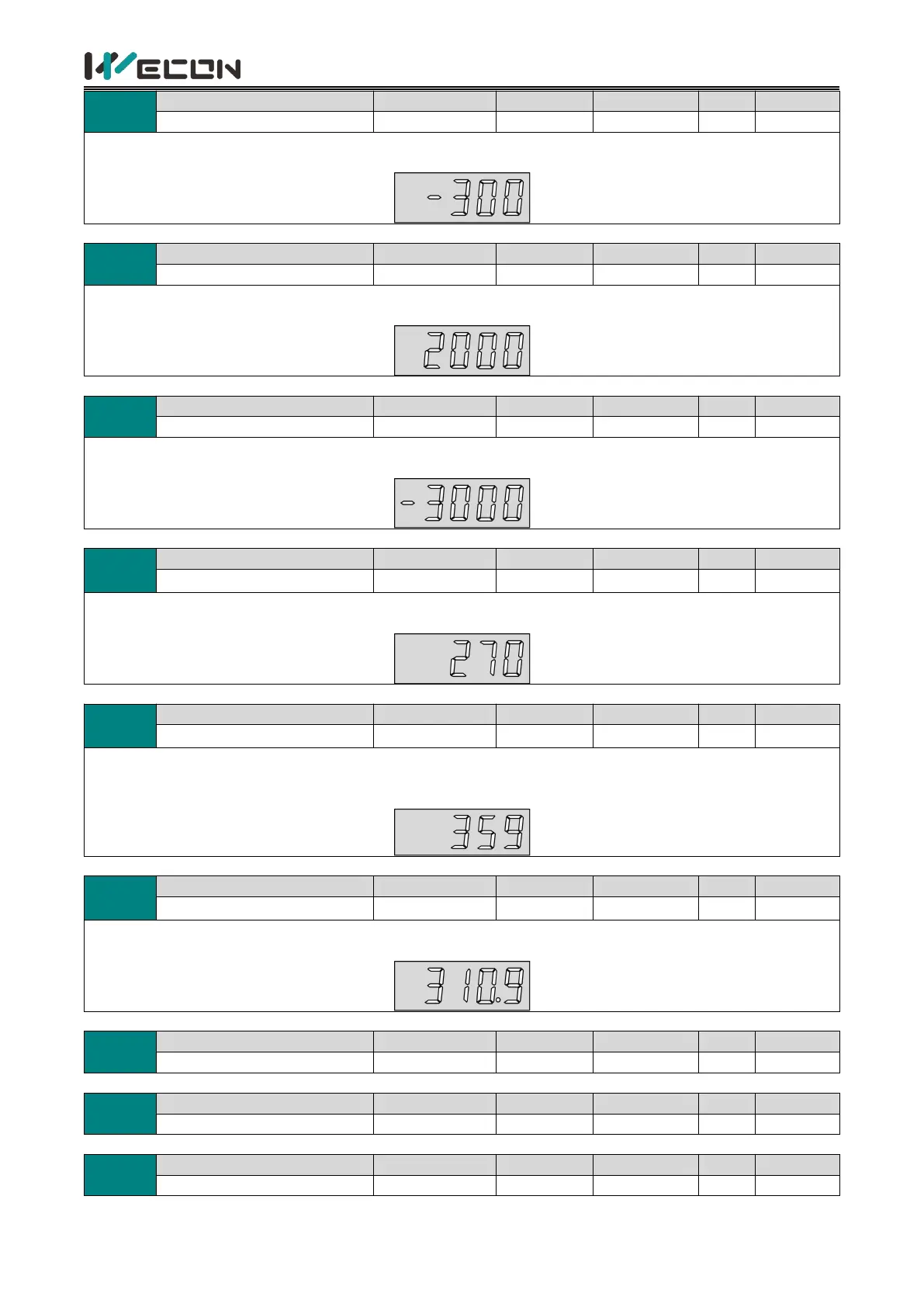

92
U0-26
Monitoring name
Range
Category
Panel display
Unit
Data type
Reverse torque limit value
0 to 300
Universal
Decimal
%
16-bit
Display the set value of P01-16 (reverse torque limit) of servo drive. If U0-26 is 300%, the panel of servo drive is
displayed as below.
U0-27
Monitoring name
Range
Category
Panel display
Unit
Data type
Forward speed limit value
0 to 5000
Universal
Decimal
rpm
16-bit
Display the set value of P01-12 (forward speed threshold) of servo drive. If P01-12 is set to 2000, the panel of
servo drive is displayed as below.
U0-28
Monitoring name
Range
Category
Panel display
Unit
Data type
Reverse speed limit value
-5000 to 0
Universal
Decimal
rpm
16-bit
Display the set value of P01-13 (reverse speed threshold) of servo drive. If P01-13 is set to 3000, the panel of
servo drive is displayed as below.
U0-29
Monitoring name
Range
Category
Panel display
Unit
Data type
Mechanical angle
0 to 359
Universal
Decimal
°
16-bit
Display current mechanical angle of motor. 0 corresponds to a mechanical angle of 0 degree.
If the mechanical angle is 270
°
, the panel of servo drive is displayed as below.
U0-30
Monitoring name
Range
Category
Panel display
Unit
Data type
Electrical angle
0 to 359
Universal
Decimal
°
16-bit
Display current electrical angle of motor. The accuracy is 1
°.
When the motor rotates, the angle range is 360
°.
When the motor is 4 poles, every time the motor is rotated one turn, it undergoes a change process of 0° to
359° four times.
U0-31
Monitoring name
Range
Category
Panel display
Unit
Data type
Bus voltage
-
Universal
Decimal
V
16-bit
Display the DC bus voltage of the main circuit input voltage of servo drive after rectification. If the bus voltage is
310.9, the panel of servo drive is displayed as below.
U0-32
Monitoring name
Range
Category
Panel display
Unit
Data type
Radiator temperature
-
Universal
Decimal
°C
16-bit
U0-33
Monitoring name
Range
Category
Panel display
Unit
Data type
Instantaneous output power
-
Universal
Decimal
W
16-bit
U0-34
Monitoring name
Range
Category
Panel display
Unit
Data type
Average output power
-
Universal
Decimal
W
16-bit
