上海维宏电子科技股份有限公司
Weihong Electronic Technology Co., Ltd.
- 16 - Specialized, Concentrated, Focused

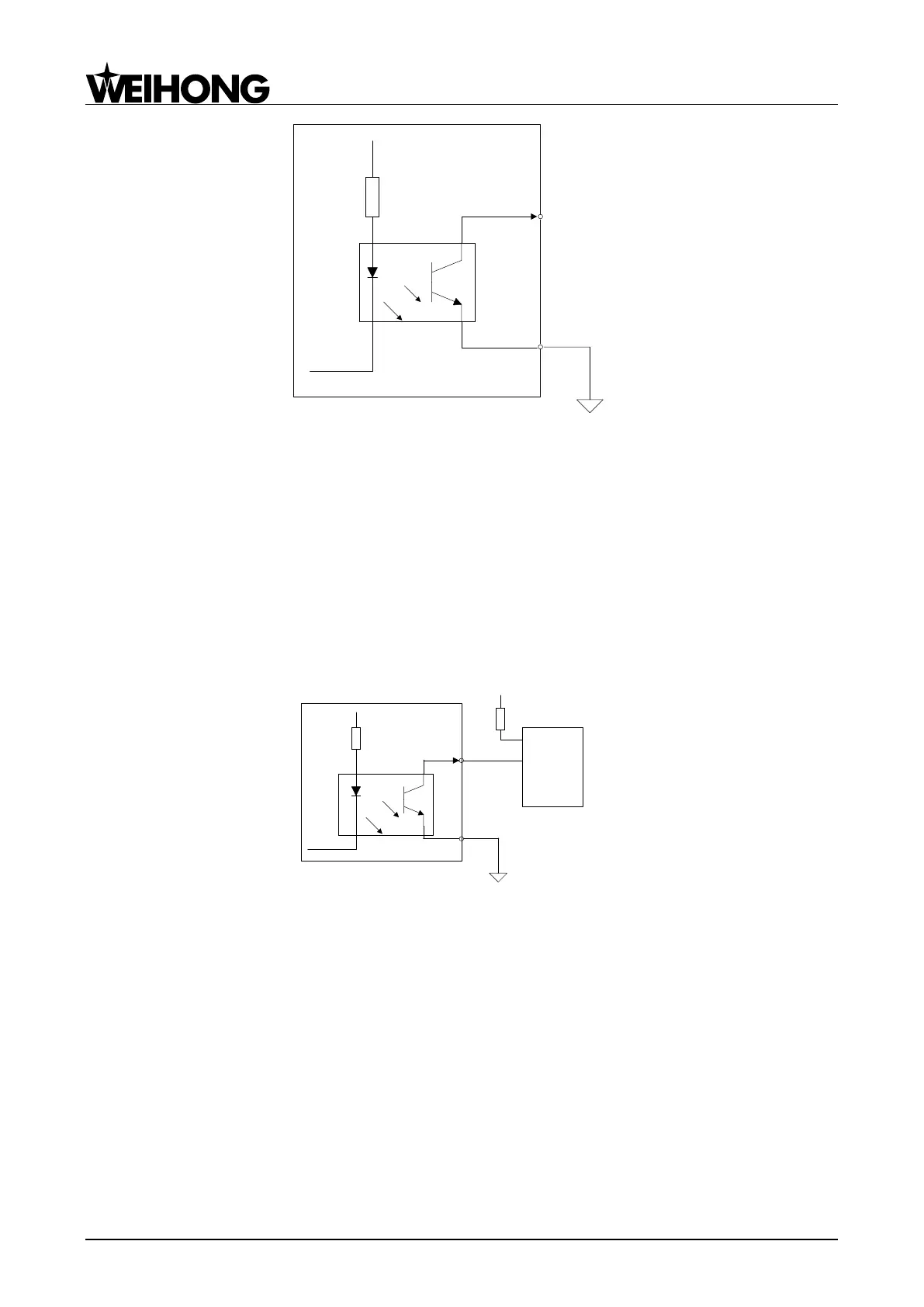

Fig. 2-5 Equivalent circuit of binary output interface
Technical Parameter
1) Supply voltage: 24VDC
2) Binary open-collector output
OC (open-collector) outputs drive capability with maximum allowable operating voltage 30VDC and
maximum allowable current 20mADC; so when the output terminal is active low, the maximum allowable
sucked current is 20mA.
Connection of Binary Output and External Circuit
The connection of solid-state relay and binary output is shown in Fig. 2-6.
+
-
DC-SSR
COM
Solid-state Relay
I/O Card
OUTX
+24V
2K
Fig. 2-6 Connection of solid-state relay and binary output
The connection of binary output and optical coupler is shown in Fig. 2-7.
