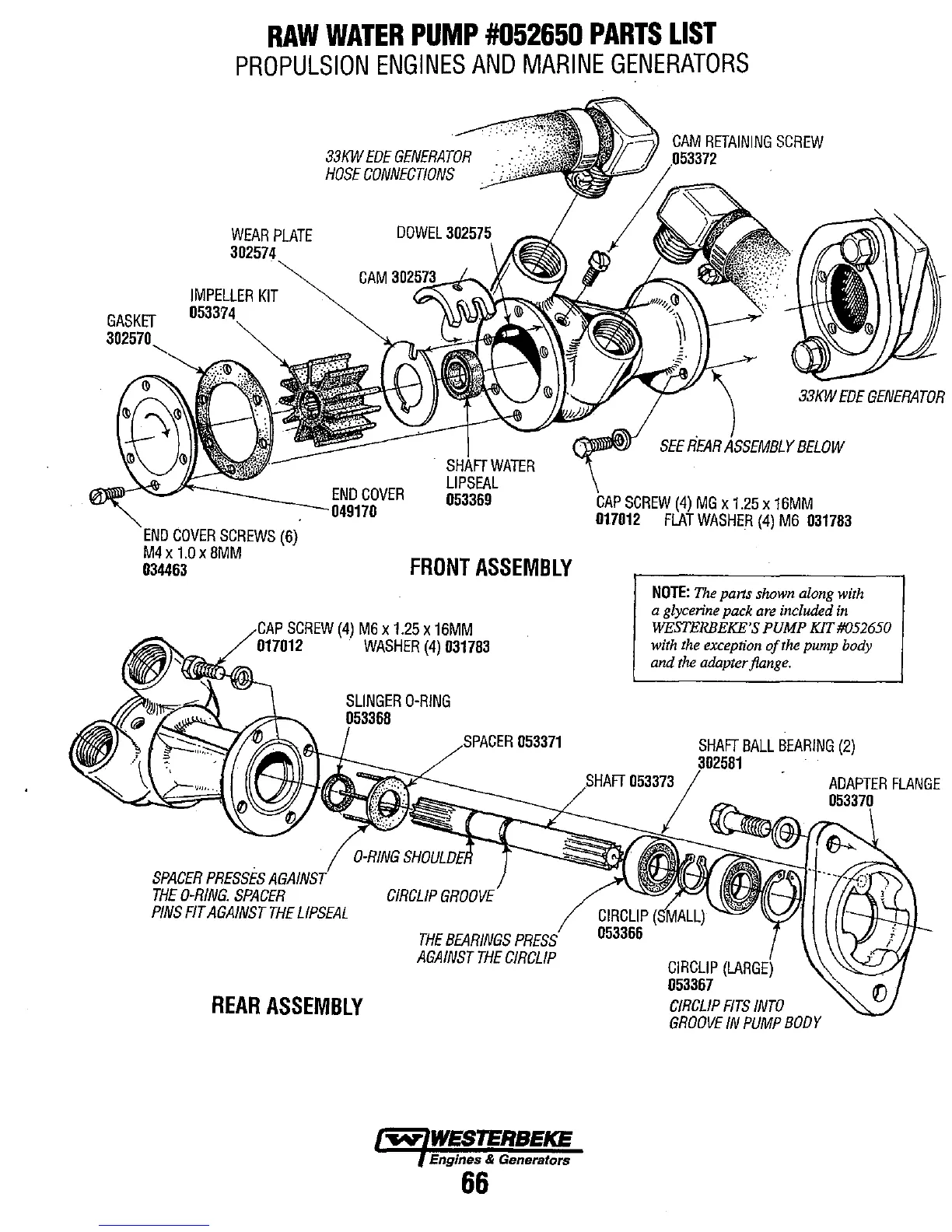

RAW WATER PUMP #052650 PARTS LIST
PROPULSION ENGINES AND MARINE GENERATORS
GASKET
WEAR PLATE
302574
IMPELLER KIT
33KW EOE GENERATOR
HOSE CONNECTIONS
~_~ END COVER
049170
END COVER SCREWS (6)
M4x 1.0x8MM
FRONT ASSEMBLY 034463
SCREW (4) M6 X 1.25 X 16MM
017012 WASHER (4) 031783
O-RING ~nUULU'~H
SPACER PRESSES AGAIN:;7
THE O-RING. SPACER
PINS FIT AGAINST THE LlPSEAL
REAR ASSEMBLY
CIRCLIP GRO,OVE'
THE BEARINGS
AGAINST THE CIRCLIP
~ WESTERBEKE
Engines & Generators
66
CAM RETAINING SCREW
SEE REAR ASSEMBLY BELOW
SCREW (4) MG x 1.25 x 16MM
017012 FLAT WASHER (4) M6 031783
NOTE: The parts slwwn along with
a glycerine pack are included in
WESTERBEKE'S PUMP KiT#052650
with the exception of the pump body
and the adapter flange.
SHAFT BALL BEARING (2)
CIRCLIP I"'V",LLI
053366
CIRCLIP FITS INTO
GROOVE IN PUMP BODY
