(1)
~~('~
(3)
(4) (5) (6) (7) (8)
(9)
t~t~t\@'
_ .
~(2)
,
"
~
Ii
~
I?,§
((==-:J)
~
~ ~
:;
® <!)
(4)
(5)
(6)
A=
=tJ
~j~~
(1) (2) (3) (7) (8)

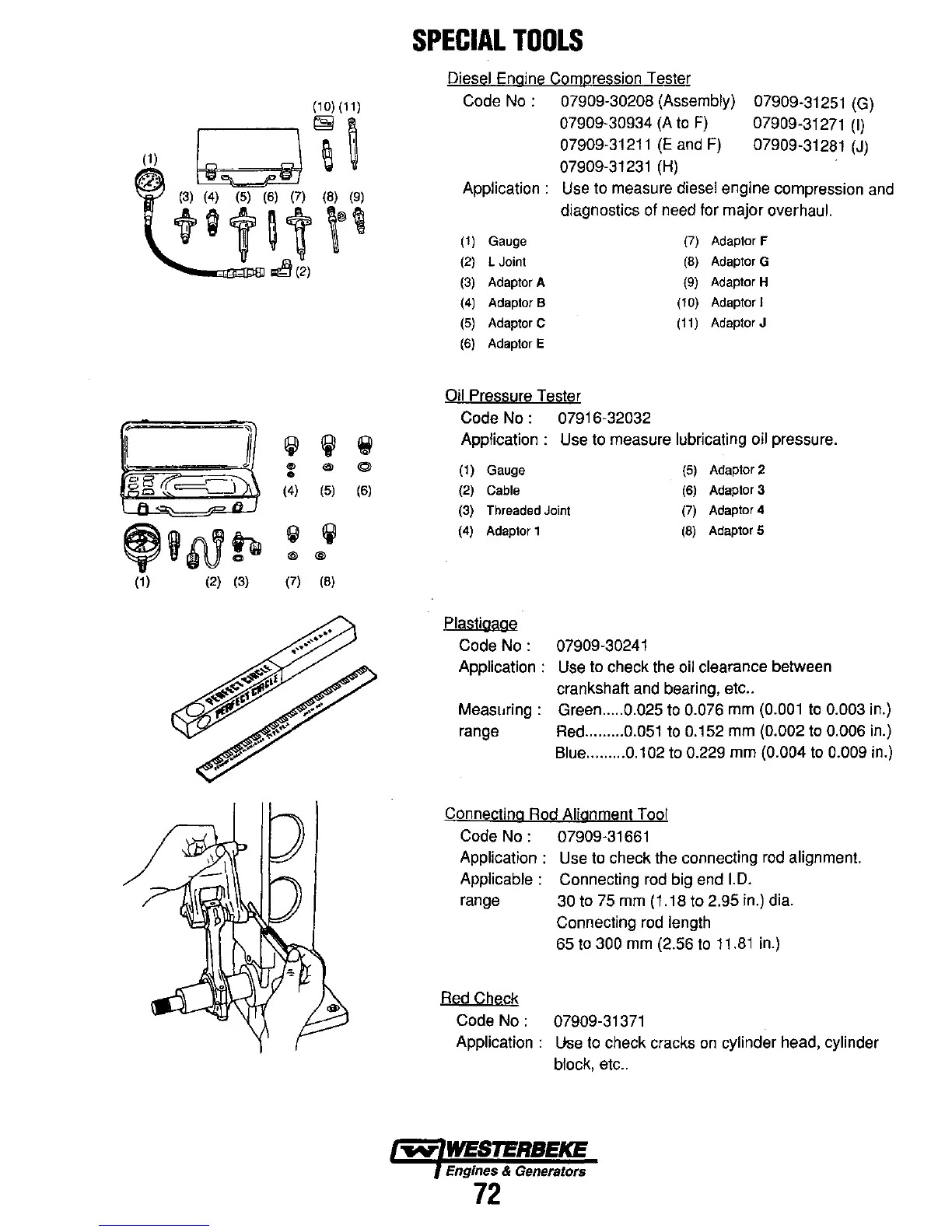

SPECIAL
TOOLS
Diesel Engine Compression Tester
Code
No
: 07909-30208 (Assembly)
07909-30934
(A
to
F)
07909-31211
(E
and
F)
07909-31231
(H)
07909-31251 (G)
07909-31271
(I)
07909-31281 (J)
Application: Use to measure diesel engine compression and
diagnostics of need for major
overhaul.
(1
)
Gauge
(7) Adaptor F
(2) L
Joint
(8) Adaptor G
(3)
Adaptor A (9)
Adaptor H
(4)
Adaptor B
(10) Adaptor t
(5)
Adaptor C
(11
)
Adaptor J
(6) Adaptor E
Oil Pressure Tester
Code No :
07916-32032
Application:
Use to measure lubricating oil pressure.
(1) Gauge
(2) Cable
(3) Threaded Joint
(4) Adaptor 1
Plastigaae
Code No : 07909-30241
(5) Adaptor 2
(6)
Adaptor 3
(7)
Adaptor 4
(8)
Adaptor 5
Application: Use to check the oil clearance between
Measl.ring :
range
crankshaft and bearing, etc
..
Green ..... 0.025 to 0.076 mm (0.001
to
0.003 in.)
Red .........
0.051 to 0.152 mm (0.002
to
0.006 in.)
Blue ......... 0.102 to 0.229 mm (0.004
to
0.009 in.)
Connecting Rod
Alignment Tool
Code
No:
07909-31661
Application:
Use to check the connecting
rod
alignment.
Applicable:
Connecting rod big end
1.0.
range 30 to
75
mm (1.18 to 2.95 in.) dia.
Connecting rod
length
65
to
300 mm (2.56
to
11.81
in.)
Red Check
Code No :
07909-31371
Application:
Use to check cracks
on
cylinder head, cylinder
block,
etc
..
...v:
WESTERBEKE
Engines & Generators
72
