SPECIAL TOOLS

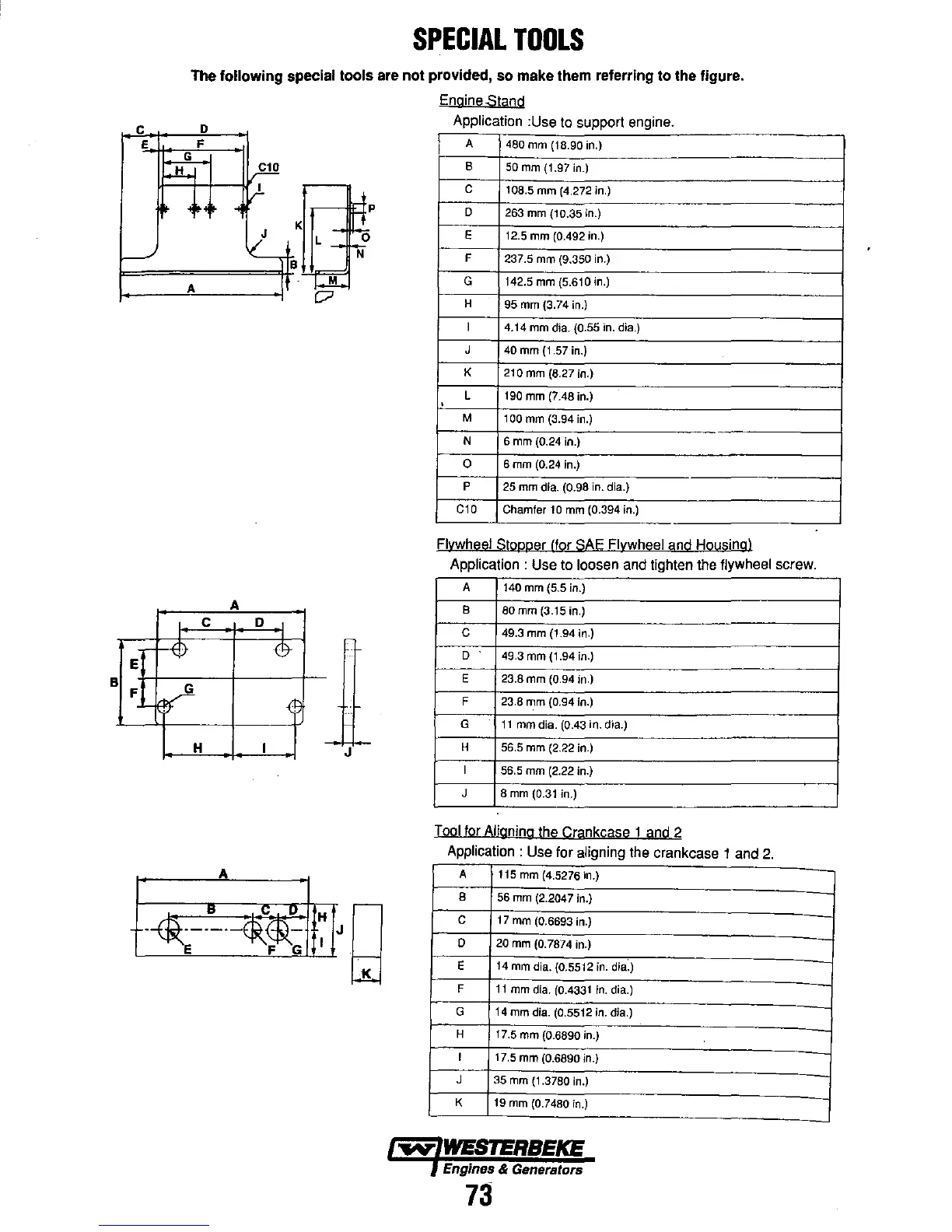

The following special tools are not provided, so make them referring to the figure.
D
F
G
f-'!.. ~
If
~. .---III:IP
:/
K
1B
A
J
A
I
C
o I
'¥
{l1-
r
{
H I
J
Engine Stand
Application :Use to support engine.
A
480 mm (18.90 in.)
B
50 rnm (1.97 in.)
C
10B.S mm (4.272 in.)
0
263 mm (10.35 in.)
E
12.5 mm (0.492 in.)
F
237.5 mm (9.350 in.)
G
142.5 mm (5.610 in.)
H
95 rnm (3.74 in.)
I
4.14 mm dia. (o.S5 in. dia.)
J
40 rnm (1.57 in.)
K
210 mm (8.27 in.)
L
,
190 mm (7.48 in.)
M
100 mm (3.94 in.)
N
6 mm (0.24 in.)
0 6 mm (0.24 In.)
p
25 mm dia. (0.98 in. dia.)
C10
Chamfer 10 mm (0.394 in.)
Flywheel Stopper (for SAE Flywheel and Housing)
Application:
Use to loosen and tighten the flywheel screw.
A 140 mm (5.5 in.)
B
aOmm(3.15in.)
C 49.3 mm (1.94 in.)
0 49.3 mm (1.94 in.)
E
23.8 mm (0.94 in.)
F 23.8 mm (0.94 in.)
G
11 mm dia. (0.43 in. dia.)
H
56.5 mm (2.22 in.)
I
56.5 mm (2.22 in.)
J 8 mm (0.31 in.)
Tool for Aligning the Crankcase 1 and 2
Application:
Use for aligning the crankcase 1 and 2
A
115 mm (4.5276 In.)
B
56 mm (2.2047 in.)
C
17 mm (0.6693 in.)
0
20 mm (0.7874 in.)
E
14 mm dia. (0.5512 in. dla.)
F
11 mm dia. (0.4331 In. dia.)
G
14 mm dia. (0.5512 in. dia.)
H
17.5 mm (0.6890 in.)
I
17.5 mm (0.6890 in.)
J
35 mm (1.3780 in.)
K
19 mm (0.7480 in.)
