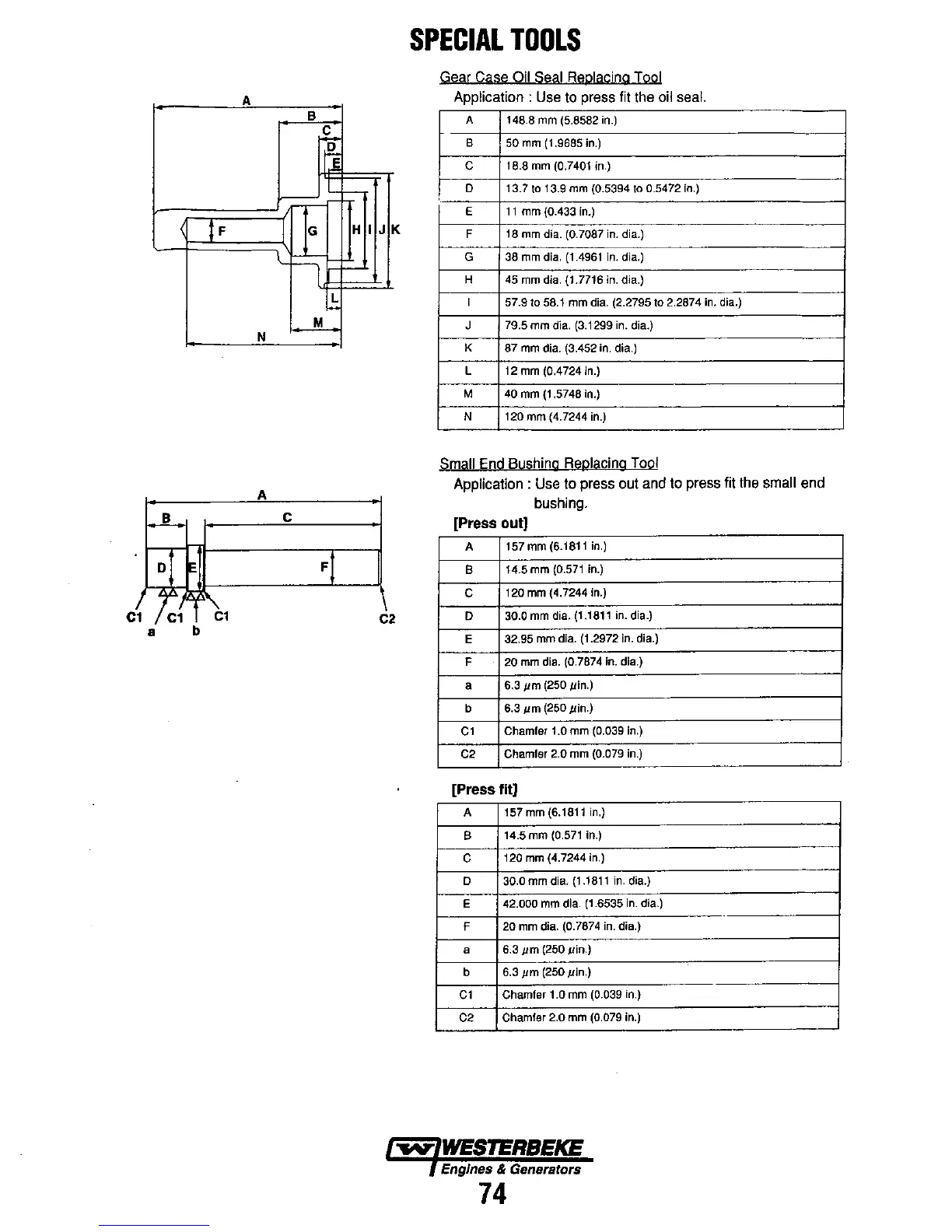

SPECIAL TOOLS
Gear Case Oil Seal Replacing Tool
Application: Use to press fit the oil seal.
A 148.8 mm (5.8582 in.)
B
50 mm (1.9685 in.)
C
18.8 mm (0.7401 in.)
D
13.7 to 13.9 mm (0.5394 to 0.5472 in.)
E
11 mm (O.433 in.)
F 18 mm dia. (0.7087 in. dia.)
G 38 rnm dia. (1.4961 in. dia.)
H
45 rnm dia. (1.7716 in. dia.)
I 57.9 to 58.1 mm dis. (2.2795 to 2.2874 in. dia.)
J
79.5 mm dia. (3.1299 in. dia.)
K
87 mm dia. (3.452 in. dia.)
L 12 mm (0.4724 In.)
M
40 mm (1.5748 In.)
N 120 mm (4.7244 in.)
Small End Bushing Replacing Tool
Application:
Use to press out and to press fit the small end
bushing.
[Press oul)
A
157mm(6.1811 in.)
B
14.5 mm (0.571 in.)
C
120 mm (4.7244 in.)
D
30.0 mm dis. (1.1811 in. dia.)
E
32.95
mm dia. (1.2972 in. dia.)
F
20 mm dla. (0.7874 in. dia.)
a
6.3 Jim (250 #In.)
b
6.3 tim (250 pin.)
C1
Chamfer 1.0 mm (0.039 in.)
C2
Chamfer 2.0 mm (0.079 in.)
[Press Iii)
A
157mm(6.1811 in.)
B
14.5 mm (0.571 in.)
C
120 mm (4.7244 in.)
D
30.0 mm dia. (1.1811 in. dia.)
E
42.000 mm dla. (1.6535 in. dia.)
F
20 mm dia. (0.7874 in. dia.)
a
6.3 pm (250 pin.)
b
6.3 pm (250 /lin.)
C1
Chamfer 1.0 mm (0.039 in.)
C2
Chamfer 2.0 mm (0.079 in.)
