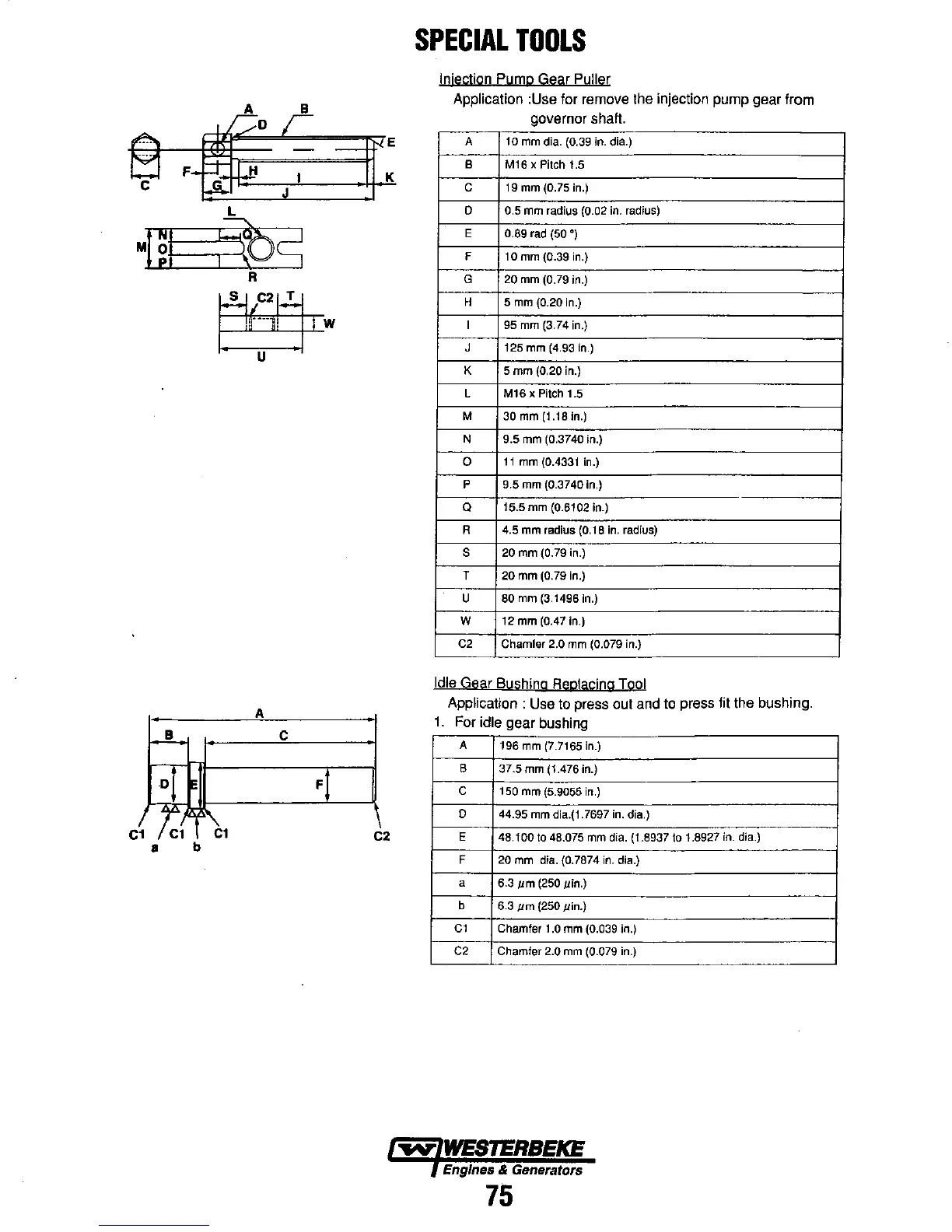

SPECIAL TOOLS
Injection Pumo Gear Puller
Application
:Use for remove the injection pump gear from
governor shaft.
A 10 rnm dia. (0.39 in. dia.)
B M16 x Pitch 1.5
C 19 mm (0.75 in.)
0 0.5 mm radius (0.02 in. radius)
E 0.89 rad (50 ")
F 10 mm (O.39 in.)
G 20 mm (0.79 in.)
H 5 mm (0.20 In.)
I 95 mm (3.74 in.)
J 125 rnm (4.93 in.)
K
5 mm (0.20 in.)
L M16 x Pitch 1.5
M 30 mm (1.18in.)
N 9.5 mm (0.3740 in.)
0
11 mm (0.4331 in.)
p
9.5 mm (0.3740 in.)
Q
15.5 mm (0.6102 in.)
R 4.5 mm radius (0.1 B in. radius)
S 20 mm (0.79 in.)
T 20 mm (0.79 in.)
U
80 mm (3.1496 In.)
W 12 rnm (0.47 in.)
C2 Chamfer 2.0 mm (0.079 in.)
Idle Gear Bushing Replacing Tool
Application:
Use to press out and to press fit the bushing.
1. For idle gear bushing
A
196 mm (7.7165 in.)
B 37.Smm (1.476 In.)
C
150 mm (5.9055 in.)
0 44.95 mm dia.{1.7697 in. dia.)
E 48.100 to 48.075 mm dia. (1.8937 to 1.8927 in. dia.)
F 20 mm dia. (0.7874 in. dia.)
a
6.3 lim (250 liin.)
b
6.3 Jim (250 Jiin.)
Cl Chamfer 1.0 mm (0.039 in.)
C2 Chamfer 2.0 mm (0.079 in.)
