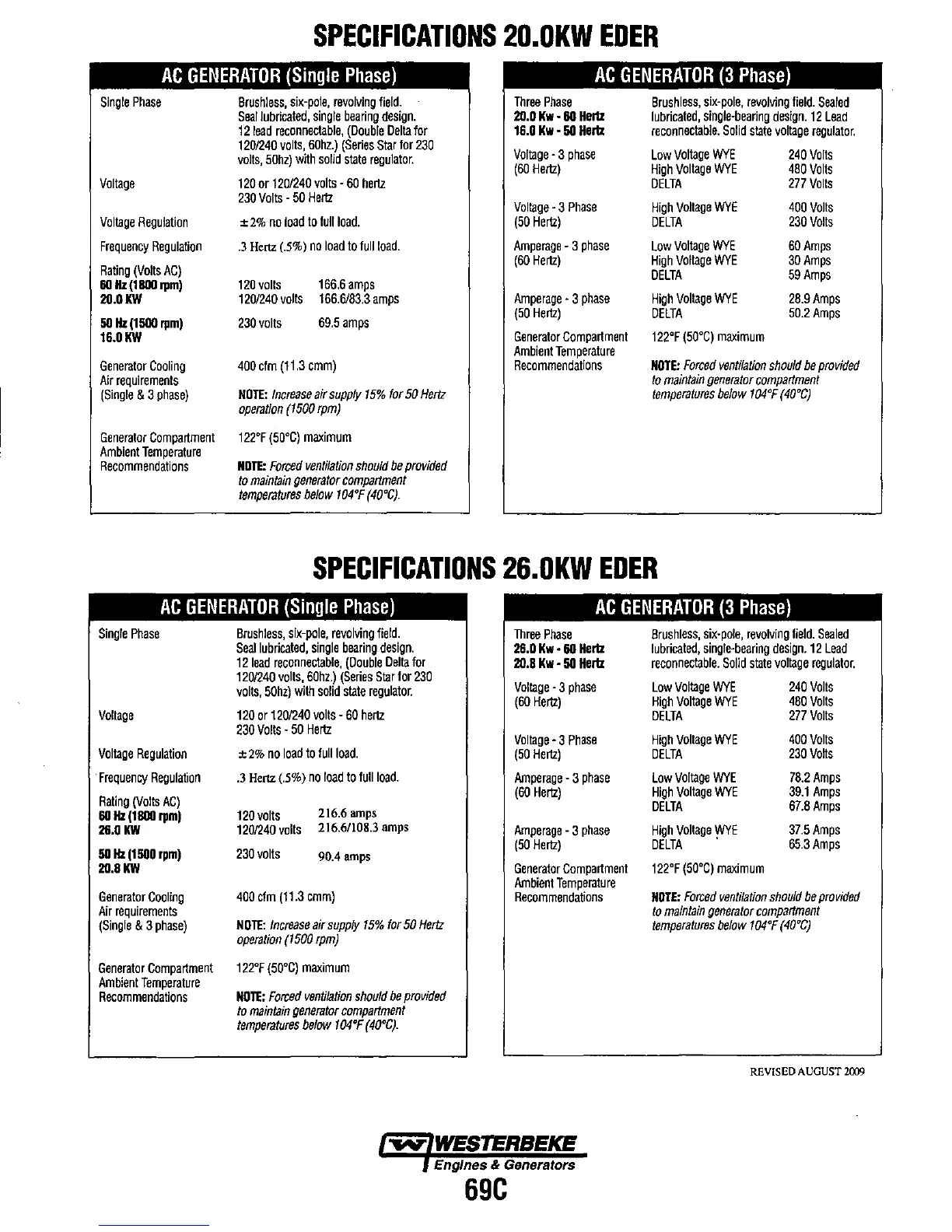

Westerbeke 65A-FOUR - Specifications· 28.5 Kw EDER

SPECIFICATIONS 20.0KW EDER
AC GENERATOR (Single Phase) AC GENERATOR (3 Phase)
Single Phase
Vollage
Vollage Regulation
Frequency Regulation
Rating (Volts AC)
60 Hz (18011 rpm)
2O.0KW
50 Hz (1500 rpm)
16.0KW
Generator Cooling
Air requirements
(Single & 3 phase)
Generator Compartment
Ambient Temperature
Recommendations
Brushless. six·pole. revolving field.
Seal lubricated. single bearing design.
12 lead reconneclable. (Double Della for
1201240 volts. 60hz.) (Series Slar for 230
volts, 50hz) with solid slate regulator.
120 or 1201240 volts - 60 hertz
230 Volts - 50 Hertz
± 2% no load to full load.
.3 Henz (.5%) no load to full load.
120 volts 166.6 amps
1201240 volts 166.6/83.3 amps
230 volts
69.5 amps
400 cfm (11.3 cmm)
NOTE: Increase air supply 15% for 50 Hertz
operation (1500 rpm)
122°F (50°C) maximum
NOTE: Forced ventilation should be provided
to maintain generator compattment
temperatures below 104°F (40°C).
Three Phase
20.0 Kw - 60 Hertz
16.0 Kw - 50 Hertz
Vollage -3 phase
(60 Hertz)
Vollage -3 Phase
(50 Hertz)
Amperage - 3 phase
(60 Hertz)
Amperage -3 phase
(50 Hertz)
Generator Compartment
Ambient Temperature
Recommendations
Brushless, six-pole, revolving field. Sealed
lubricated, single-bearing design. 12 Lead
reconnectable. Solid state voltage regulator.
Low Vollage WYE 240 Volts
High Vollage WYE 480 Volts
DELTA
277 Volts
High Voltage WYE 400 Volts
DELTA
230 Volts
Low Vollage WYE 60 Amps
High Vollage WYE 30 Amps
DELTA 59 Amps
High Vollage WYE 28.9 Amps
DELTA
50.2 Amps
122°F (50°C) maximum
NOTE: Forced ventilation should be provided
fa maintain generator compartment
temperatures below 104°F (40°C)
SPECIFICATIONS 26.0KW EDER
AC GENERATOR (Single Phase)
AC GENERATOR (3 Phase)
Single Phase
Voltage
Vollage Regulation
Frequency Regulation
Rating (Volts AC)
60 Hz (18011 rpm)
26_0 KW
50 Hz (1500 rpm)
2O.8KW
Generator Cooling
Air requirements
(Single & 3 phase)
Generator Compartment
Ambient Temperature
Recommendations
Brushless, six-pole, revolving field.
Seal lubricated, single bearing design.
12 lead reconneclable, (Double Della for
1201240 volts, 60hz.) (Series Slar for 230
volts, 50hz) with solid slate regulator.
120 or 1201240 volts - 60 hertz
230 Volts - 50 Hertz
± 2% no load to tuilioad.
.3 Hertz (.5%) no load to full load.
120 volts 2t6.6 amps
1201240 volts 216.6/108.3 amps
230 volts 90.4 amps
400cfm (11.3 cmm)
NOTE: Increase air supply 15% for 50 Hertz
operation (1500 rpm)
12n (50°C) maximum
NOTE: Forced ventilation should be provided
to maintain generator compartment
temperatures below 104°F (40°C).
Three Phase
26.0 Kw - 60 Hertz
20.8 Kw - 50 Hertz
Vollage -3 phase
(60 Hertz)
Vollage -3 Phase
(50 Hertz)
Amperage - 3 phase
(60 Hertz)
Amperage -3 phase
(50 Hertz)
Generator Compartment
Ambient Temperature
Recommendations
Engines & Generators
69C
Brushless, six-pole, revolving field. Sealed
lubricated, single-bearing design. 12 Lead
reconnectable. Solid slate vollage regulator.
Low Vollage WYE 240 Volts
High Vollage WYE 480 Volts
DELTA 277 Volts
High Voltage WYE
DELTA
Low Vollage WYE
High Vollage WYE
DELTA
High Voltage WYE
DELTA .
122'F (50°C) maximum
400 Volts
230 Vans
78.2 Amps
39.1 Amps
67.8 Amps
37.5 Amps
65.3 Amps
NOTE: Forced ventilation should be provided
to maintain generator compartment
temperatures below 104°F (40°C)
REVISED AUGUST 2(09
