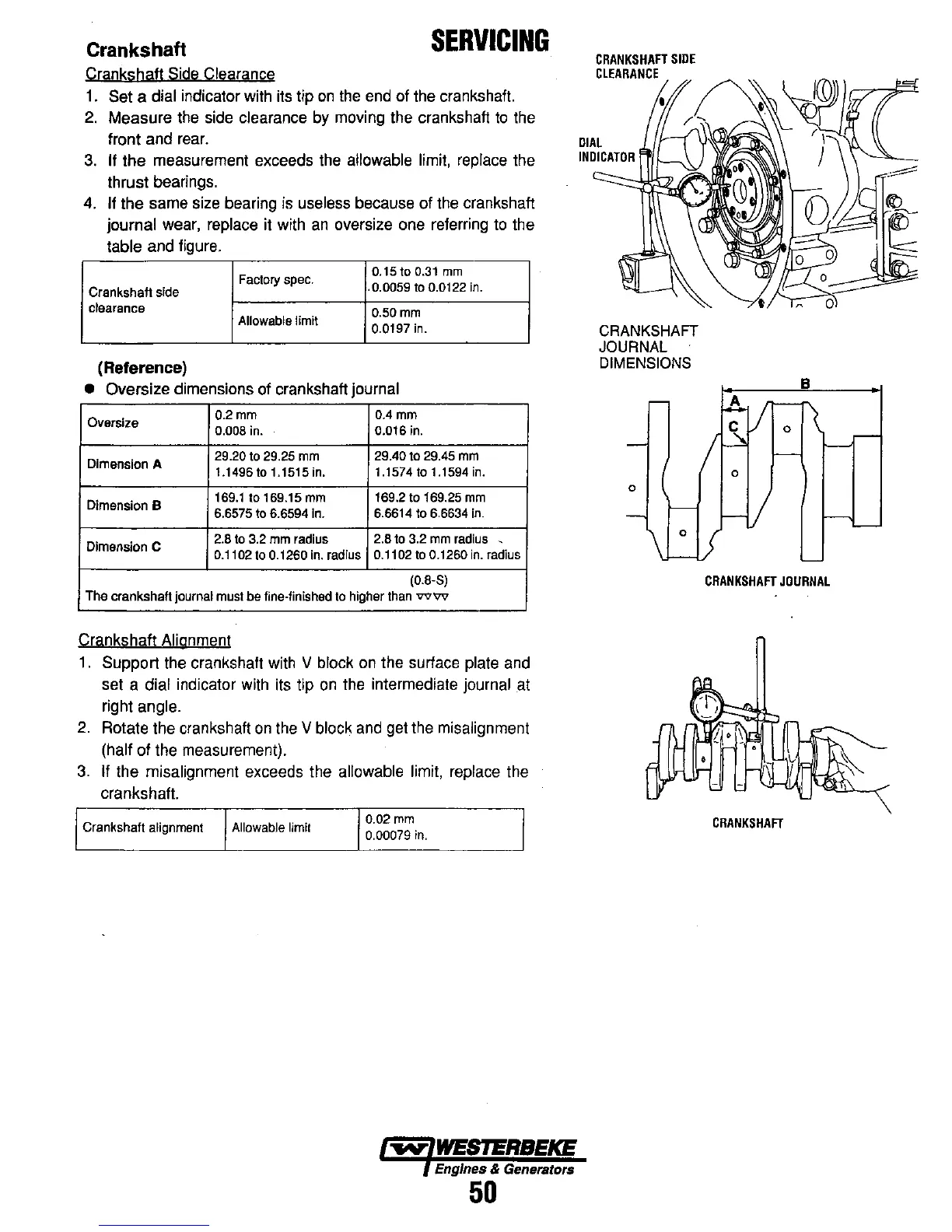

Crankshaft
SERVICING
Crankshaft Side Clearance
1.
Set a dial indicator with its tip
on
the end of the crankshaft.
2.
Measure the side clearance by moving the crankshaft
to
the
front and rear.
3.
If the measurement exceeds the allowable limit, replace the
thrust bearings.
4.
If the same size bearing
is
useless because of the crankshaft
journal wear, replace it with
an
oversize one referring
to
the
table and figure.
Factory
spec.
0.15 to 0.31
mm
Crankshaft
side
.0.0059 to 0.0122
in.
clearance
0.50mm
Allowable
limit
0.0197 in.
(Reference)
• Oversize dimensions of crankshaft journal
Oversize
O.2mm O.4mm
0.008
in.
0.016 in.
Dimension
A
29.20 to 29.25 mm 29.40
to
29.45
mm
1.1496101.1515 in. 1.1574 to 1.1594
in.
Dimension
B
169.1
to 169.15
mm
169.2 to 169.25
mm
6.6575 to 6.6594
In.
6.6614 to 6.6634
in.
Dimension
C
2.8
to
3.2
mm
radius
2.8
to
3.2
mm
radius
,
0.1102 to 0.1260 in. radius 0.1102
to
0.1260
in.
radius
(O.B-S)
The
crankshaft
journal
must
be
fine-finished
to
higher
than
V'ilVV
Crankshaft Alignment
1.
Support the crankshaft with V block on the surface plate and
set a
dial indicator with its tip
on
the intermediate journal at
right
angle.
2.
Rotate the crankshaft
on
the V block and get the misalignment
(half
of
the measurement).
3.
If the misalignment exceeds the allowable limit, replace the
crankshaft.
Crankshaft
alignment
Allowable
limit
0.02mm
0.00079
in
.
...v:
WESTERBEKE
Engines & Generators
50
CRANKSHAFT
SIDE
CLEARANCE
DIAL
INDICATOR
CRANKSHAFT
JOURNAL
DIMENSIONS
o
CRANKSHAFT
JOURNAL
•
~
/
CRANKSHAFT
