o
E
F
""
f2
Cl
C~
C
A
B
C
1

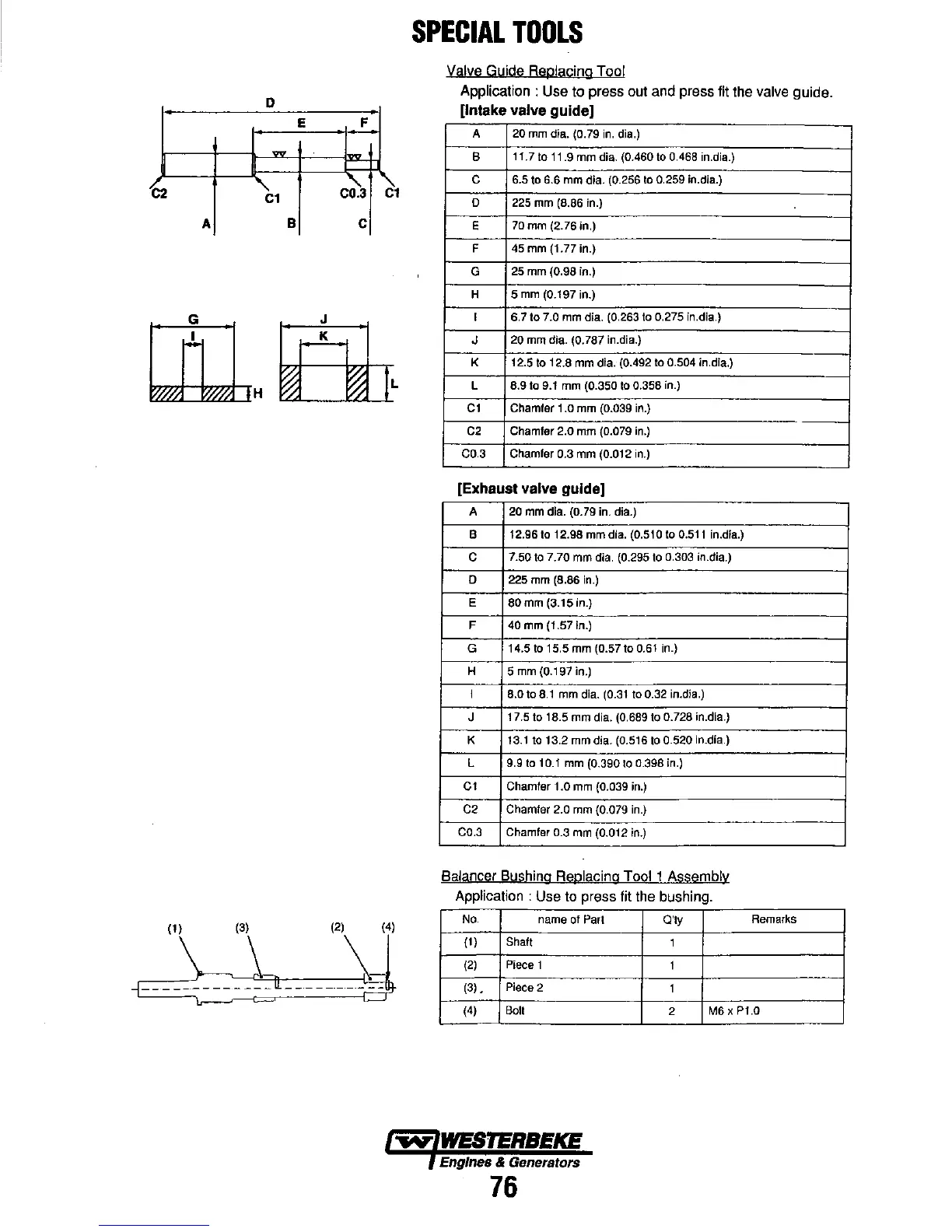

SPECIAL
TOOLS
Valve Guide Replacing Tool
Application: Use to press out and press fit the valve guide.
[Intake valve guide]
A 20
mm
dia. (0.79 in. dia.)
B 11.7 to 11.9
mm
dia. (0.460 to 0.468 in.dia.)
C 6.5 to 6.6
mm
dia. (0.256
to
0.259 in.dia.)
0 225
mm
(8.86 in.)
E
70 mm (2.76 in.)
F
45
mm (1.77 in.)
G
25
mm
(O.9B
in.)
H
5mm(O.197in.)
I
6.7
to
7.0
mm
dia. (0.263 to 0.275 in.dia.)
J
20
mm
dia. (0.787 in.dia.)
K 12.5
to
12.8
mm
dia. (0.492 to 0.504 in.dia.)
L
B.9
to
9.1
mm (0.350 to 0.358 in.)
Cl
Chamfer 1 .0
mm
(0.039 in.)
C2
Chamfer
2.0
mm
(O.079 in.)
CO.3
Chamfer 0.3
mm
(0.012 in.)
[Exhaust valve guide]
A 20
mm
dla. (0.79
in.
dia.)
B
12.96 to 12.98
mm
dia. (0.510 to 0.511 in.dia.)
C
7.50
to
7.70
mm
dia. (0.295 to 0.303 in.dia.)
0 225
mm
(8.66 in.)
E
80
mm (3.15 in.)
F 40
mm
(1.57 in.)
G
14.5 to 15.5
mm
(0.57 to 0.61 in.)
H 5
mm
(0.197 in.)
I 8.0 to
8.1
mm
dia. (0.31 to 0.32 in.dia.)
J
17.5 to 18.5
mm
dia. (0.689
to
0.728 in.dla.)
K
13.1 to
13.2
mm
dia. (0.516 to
0.520
in.dia.)
L 9.9 to 10.1
mm
(0.390 to 0.398 in.)
Cl
Chamfer
1.0
mm
(0.039 in.)
C2 Chamfer
2.0
mm
(0.079 in.)
CO.3
Chamfer 0.3
mm
(0.012 in.)
Balancer Bushing Replacing Tool 1 Assembly
Application: Use to press fit the bushing.
No.
name
of ParI Q'ly
(1)
Shaft
1
(2) Piece 1
1
(3).
Piece 2
1
Remarks
(4)
Boll
2
M6
x
Pl.0
~
WESTERBEKE
EngInes & Generators
76
