WinGD X92DF - Control Box E70 with Option SPC

4.14.3.2 Control box E70
The control box E70 is installed on the engine and has switches and visual indicators.

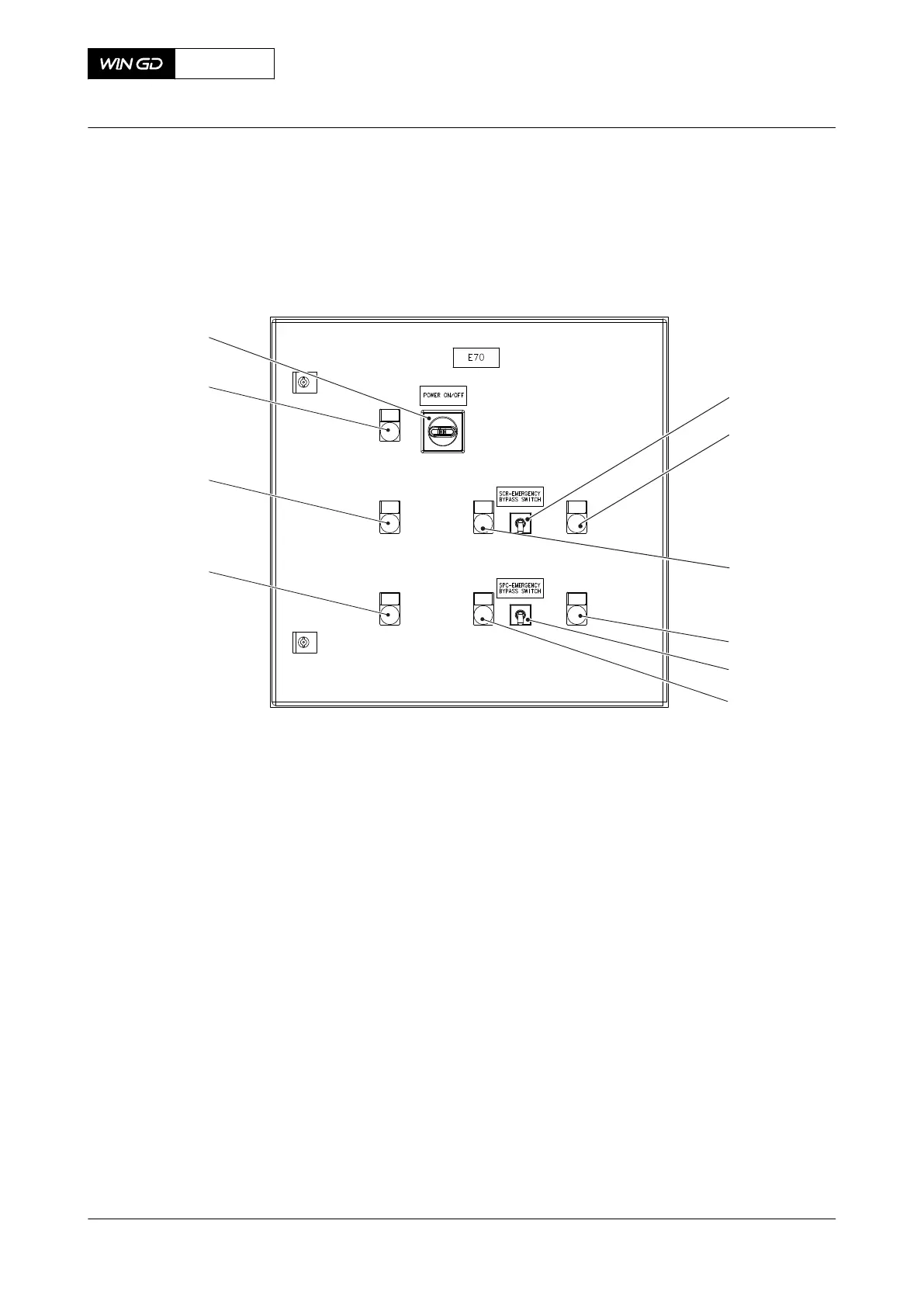

Fig 4-18 Control box E70 with option SPC
001
002
003
004
005
006
007
008
009
010
Legend
001 SCR bypass switch 006 Indication (orange) - SPC bypass
002 Indication (red) - SCR failure 007 Indication (green) - SPC running
003 Indication (orange) - SCR bypass 008 Indication (green) - SCR running
004 Indication (red) - SPC failure 009 Indication (green) - Power on
005 SPC bypass switch 010 Power switch
