5.9.3 Oil mist detector
The oil mist detection system continuously monitors the concentration of oil mist in the
crankcase, in the supply unit drive and in the supply unit. If there is a high oil mist concentration,
the oil mist detector activates an alarm. Thus damage to the bearings can be quickly found and
explosions in the crankcase can be prevented.
The system includes the sensors (002, Figure 5-57) and the control unit (003) on the engine.

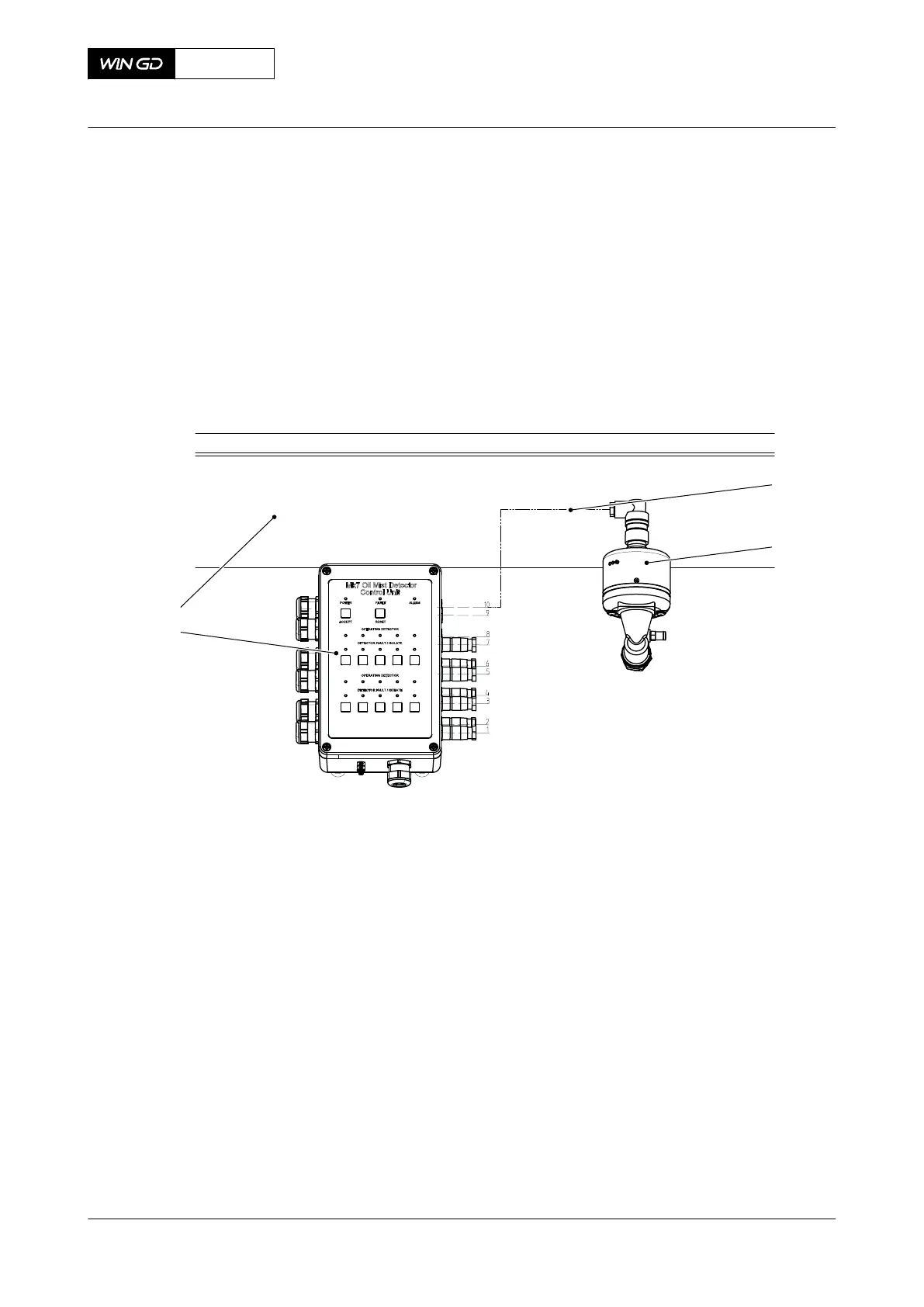

Fig 5-57 Oil mist detector (example)
004
003
001
002
Legend
001 Data cable 003 Control unit E15.1
002 Sensor 004 Column
Each sensor monitors the concentration of oil mist. Each sensor has a self-test function to make
sure that there are no internal faults.
