6.10.4 Failures and defects of WECS-9520 components
Failures and defects of WECS-9520 components cause failure messages, which are
transmitted to the operator flexView and alarm and monitoring system (AMS).
The tables that follow will help you understand all failure indications. A two-digit LED display for
the failure ID is given on the FCM-20.
NOTE: The two-digit LED display shows the failure ID code. For a three-digit number the
display shows one or two dots for the first digit (e.g. 2.5 for 125, 5.8. for 258).
6.10.4.1 FCM-20

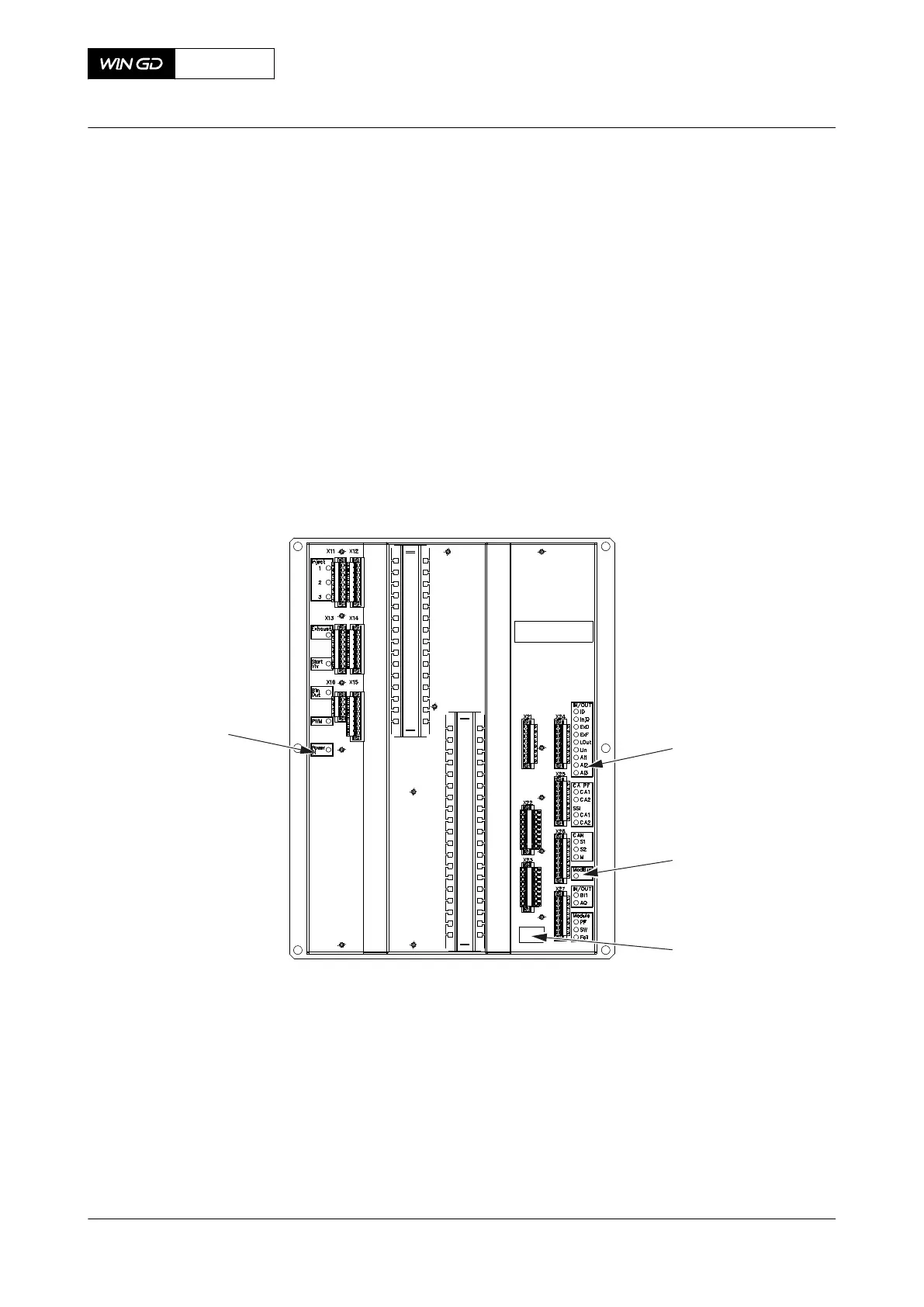

The front view of a FCM-20 is shown in the figure that follows.
Fig 6-67 Failure ID and LED indications on FCM-20
001
002
001
001
Legend
1 LED 2 Two-digit LED display
6.10.4.2 Failure groups
All WECS-9520 failure indications are part of the failure groups that follow and are always
shown together with the related group.
X92DF
AA00-0000-00AAB-410C-A
Operation Manual Failures and defects of WECS-9520 components
Winterthur Gas & Diesel Ltd.
- 420 - Issue 002 2020-08
