5.4.6 Local maneuvering stand - Option C
The local maneuvering stand has the local control cabinet E26 (001, Figure 5-30) and other
terminal boxes. They are attached to the engine at the free end. The terminal boxes have the
components necessary for engine operation. Some components can look different because the
remote control manufacturer supplies the terminal boxes.
For data about maneuvering instructions, refer to section 8.8 Maneuver the ship - general.

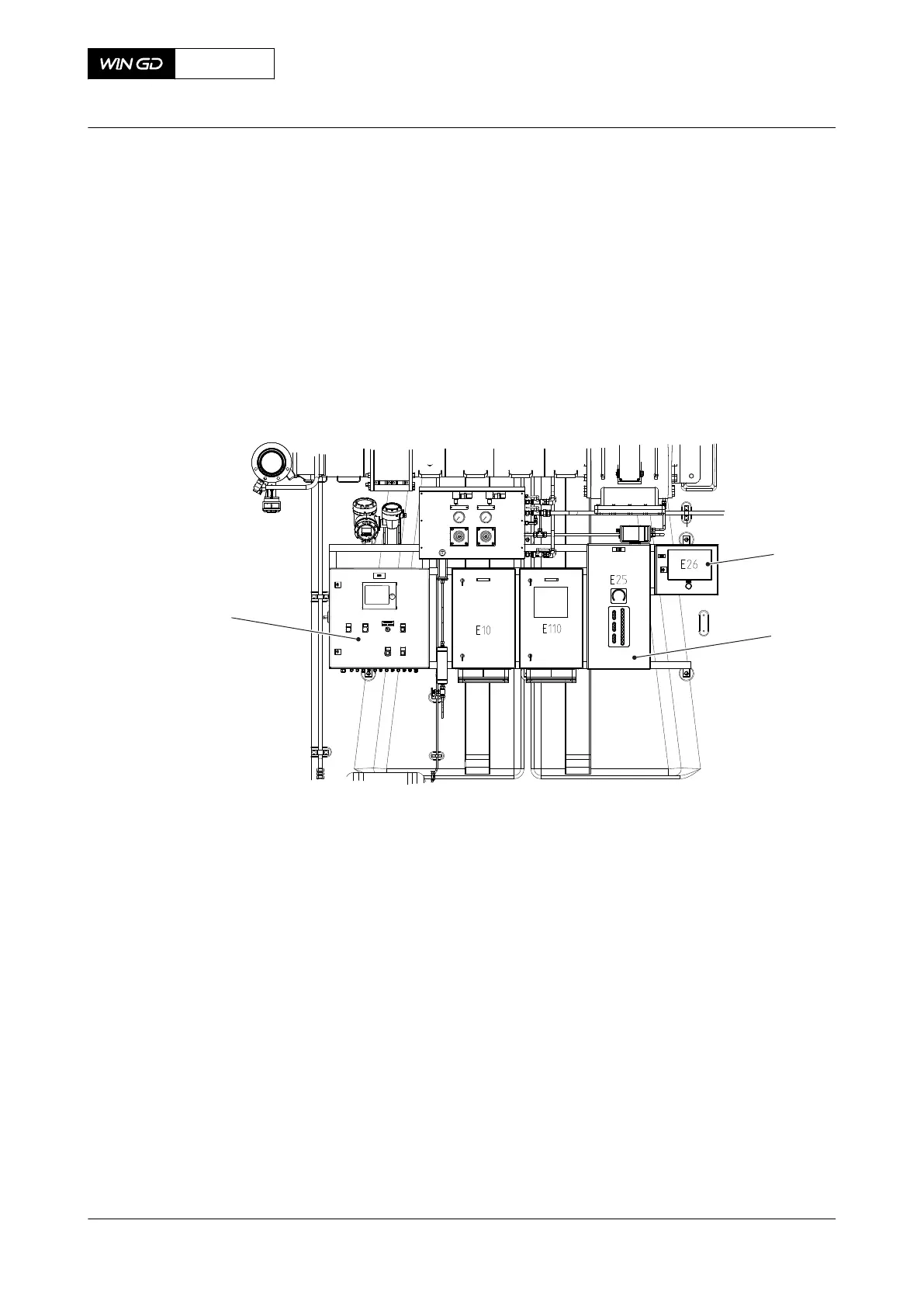

Fig 5-30 Local maneuvering stand
001
002
003
Legend
001 Local control cabinet E26 003 Control panel for gas pressure regulation (if
applicable)
002 Terminal box E25
