WinGD X92DF - Fuel Pump (Example) - Connect; Fuel Pump (Example) - Cut in

PROCEDURE

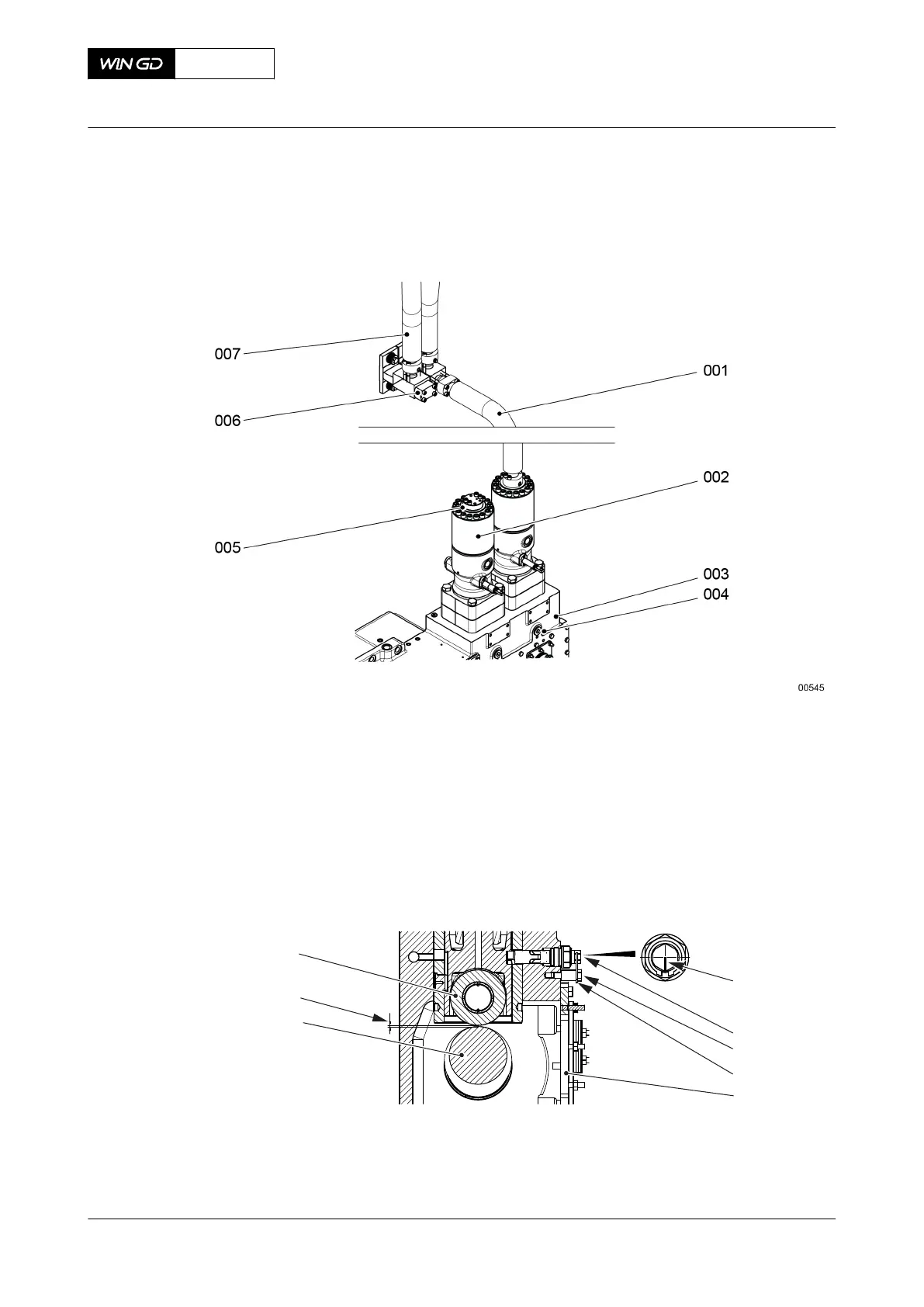

Fig 10-8 Fuel pump (example) - connect
1 Release the pressure and drain the related HP fuel pipe (007, Figure 10-8).
2 Remove the flange (005) from the fuel pump (002).
3 Remove the flange (006) from the HP fuel pipe (007).
4 Install the related HP fuel pipe (001) to the fuel pump (002). For the applicable
procedure, refer to the Maintenance Manual.
5 Remove the related cover from the supply unit (003).
Fig 10-9 Fuel pump (example) - cut in
007
002
X
006
001
003
004
005
00546
X92DF
AA00-5556-00AAA-730B-A
Operation Manual Connect the fuel pump
