5.3.5 Connecting rod and connecting rod bearing
The connecting rod connects the crosshead with the crankshaft and converts the linear
movement of the piston into a circular movement of the crankshaft.
The bearing shells are installed on the connecting rod for the bottom end bearing and the top
end bearing. The top bearing cover is lined with white metal.
Crosshead lubricating oil flows through the guide shoe into the crosshead pin. A hole in the
crosshead pin lets lubricating oil flow into the bearing shells.

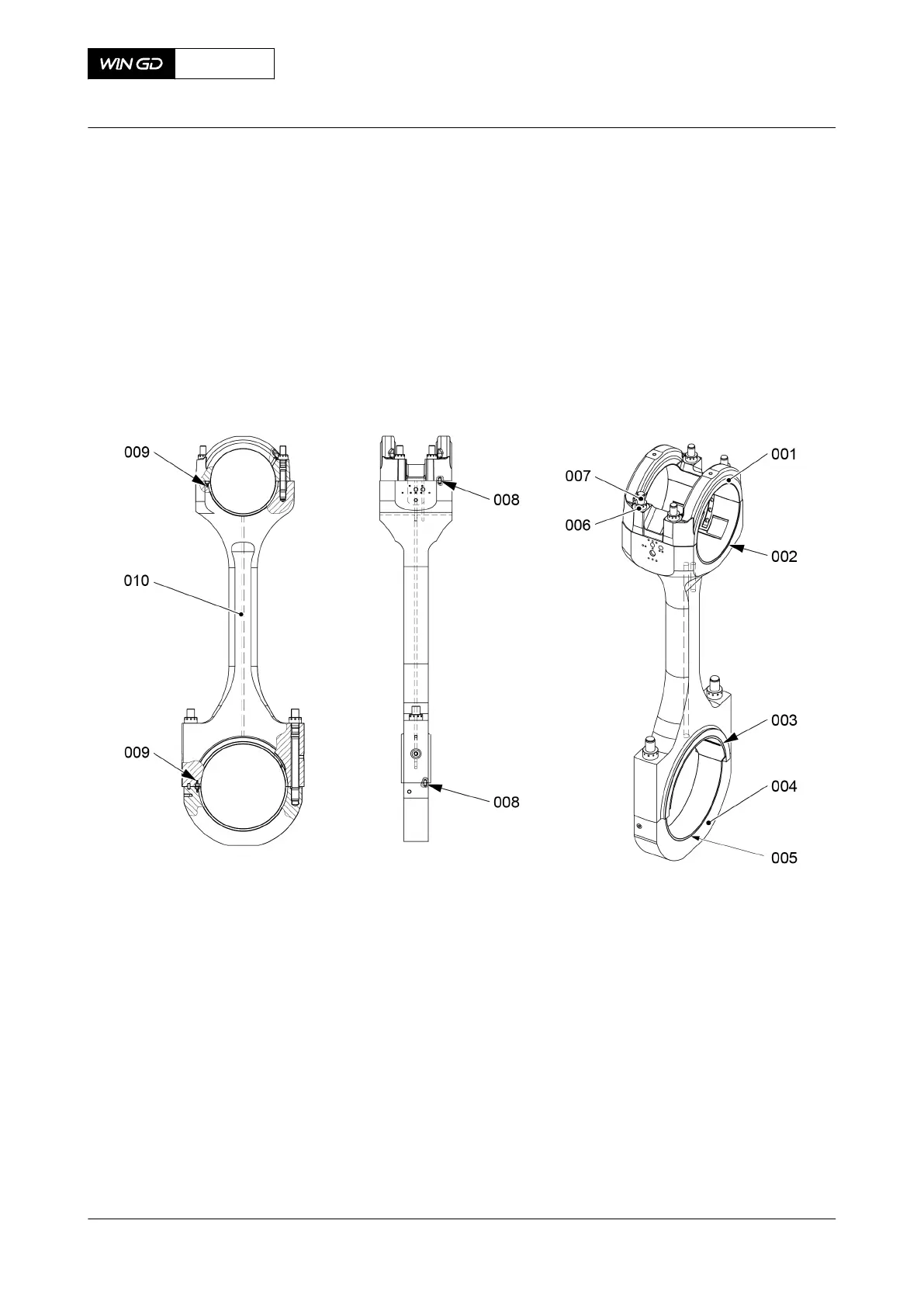

Fig 5-22 Connecting rod and connecting rod bearing (generic)
Legend
001 Top bearing cover 006 Round nut
002 Bearing shell (top end bearing) 007 Elastic bolt
003 Top bearing shell (bottom end bearing) 008 Dowel pin
004 Bottom bearing cover 009 Allen screw
005 Bottom bearing shell (bottom end bearing) 010 Oil bore
