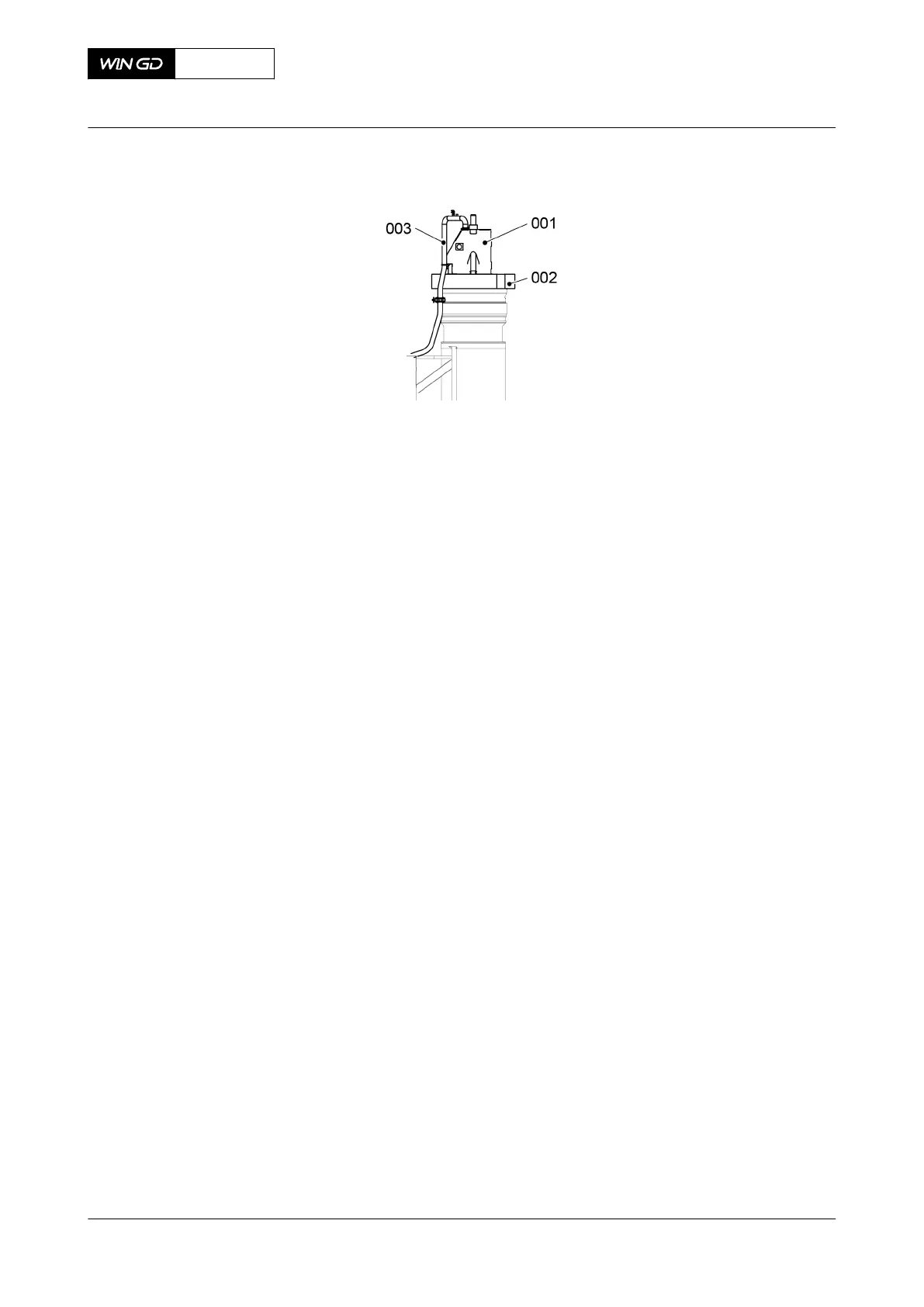

Fig 5-7 Cylinder - cooling water outlet (generic)
Legend
001 Exhaust valve cage 003 Cooling water outlet
002 Cylinder cover
Cooling water flows from the bottom water guide jacket to the top water guide jacket. Then the
cooling water flows into the cylinder cover (002, Figure 5-7) and the exhaust valve cage (001).
The cooling water flows back through the cooling water outlet (003) to the cooling water system
of the plant.
To prevent unwanted tension in the top part of the cylinder liner (004, Figure 5-6), the
temperature of the cooling water must stay in the permitted range:
•
±2°C at constant load
•
±4°C during load changes.
X92DF
AA00-2124-00AAA-043A-A
Operation Manual Cylinder liner
Winterthur Gas & Diesel Ltd.
- 159 - Issue 002 2020-08
