5.2.2 Lubricating quill
The lubricating quills spray oil onto the cylinder liner wall. The lubricating quills are installed on
the circumference of the cylinder liner.
The cylinder lubricating pump supplies a specified quantity of cylinder oil at high pressure
through the cylinder oil inlet (006, Figure 5-8) into the lubricating quills. The non-return
valve (009) opens and the cylinder oil flows out of the nozzle tip (003) and the lubricating point
(004) as a spray. Some of the cylinder oil flows into the grooves of the cylinder liner wall. The
non-return valve (009) prevents the exhaust gas to flow back into the oil pipe.

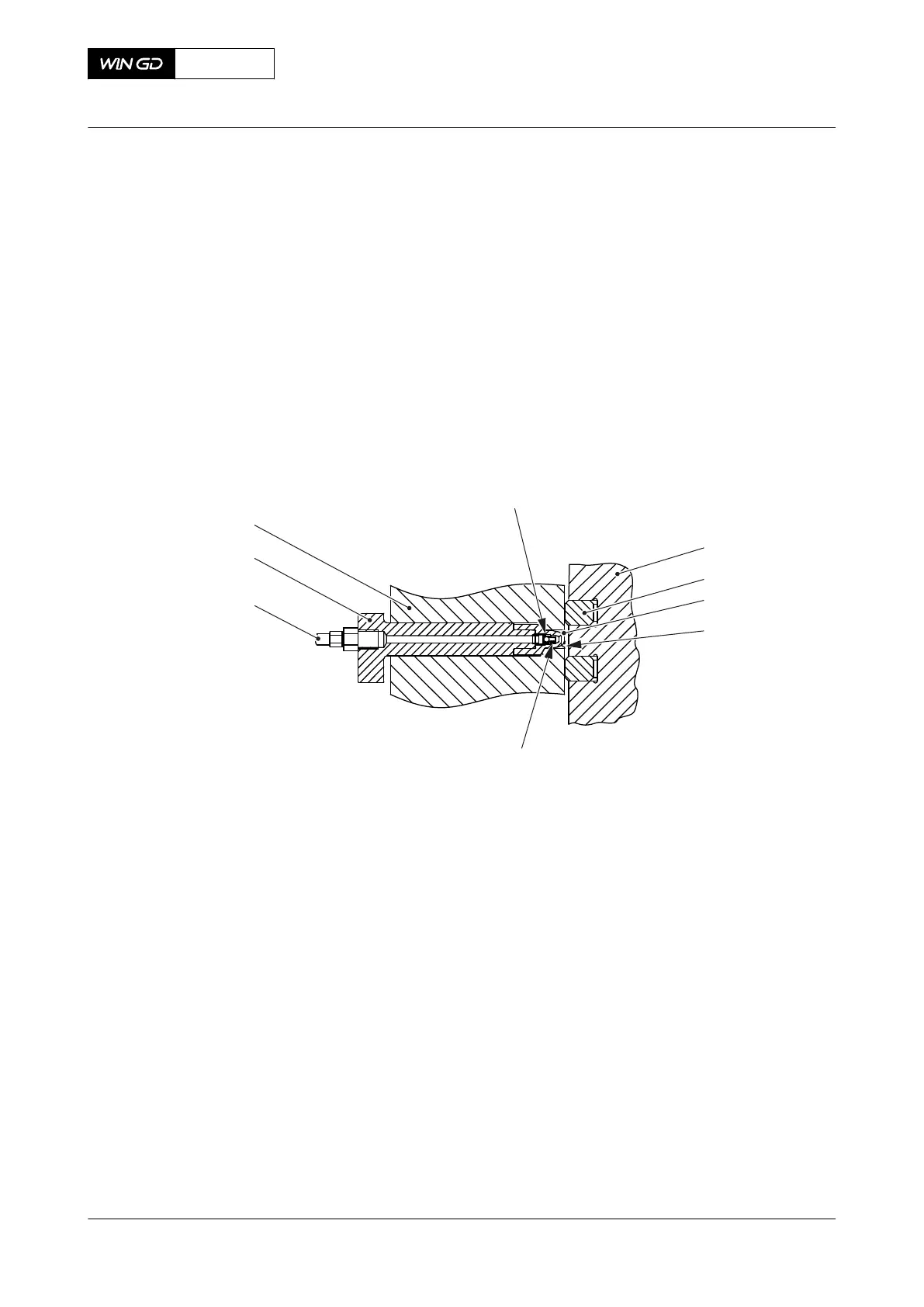

Fig 5-8 Lubricating quill (generic)
001
002
003
004
008
007
006
009
005
Legend
001 Piston 006 Cylinder oil inlet
002 Piston ring 007 Holder
003 Nozzle tip 008 Cylinder liner
004 Lubricating point in cylinder liner 009 Non-return valve
005 Compression spring
X92DF
AA00-2138-00AAA-043A-A
Operation Manual Lubricating quill
Winterthur Gas & Diesel Ltd.
- 160 - Issue 002 2020-08
