5.4.5 Local maneuvering stand - Option B
The local maneuvering stand has the local control panel (001, Figure 5-29) and the instrument
panel (002) and is attached to the engine at the free end. The local control panel has the
components necessary for engine operation. Some components can look different because the
remote control manufacturer supplies the local control panel (001).
For data about maneuvering instructions, refer to section 8.8 Maneuver the ship - general.

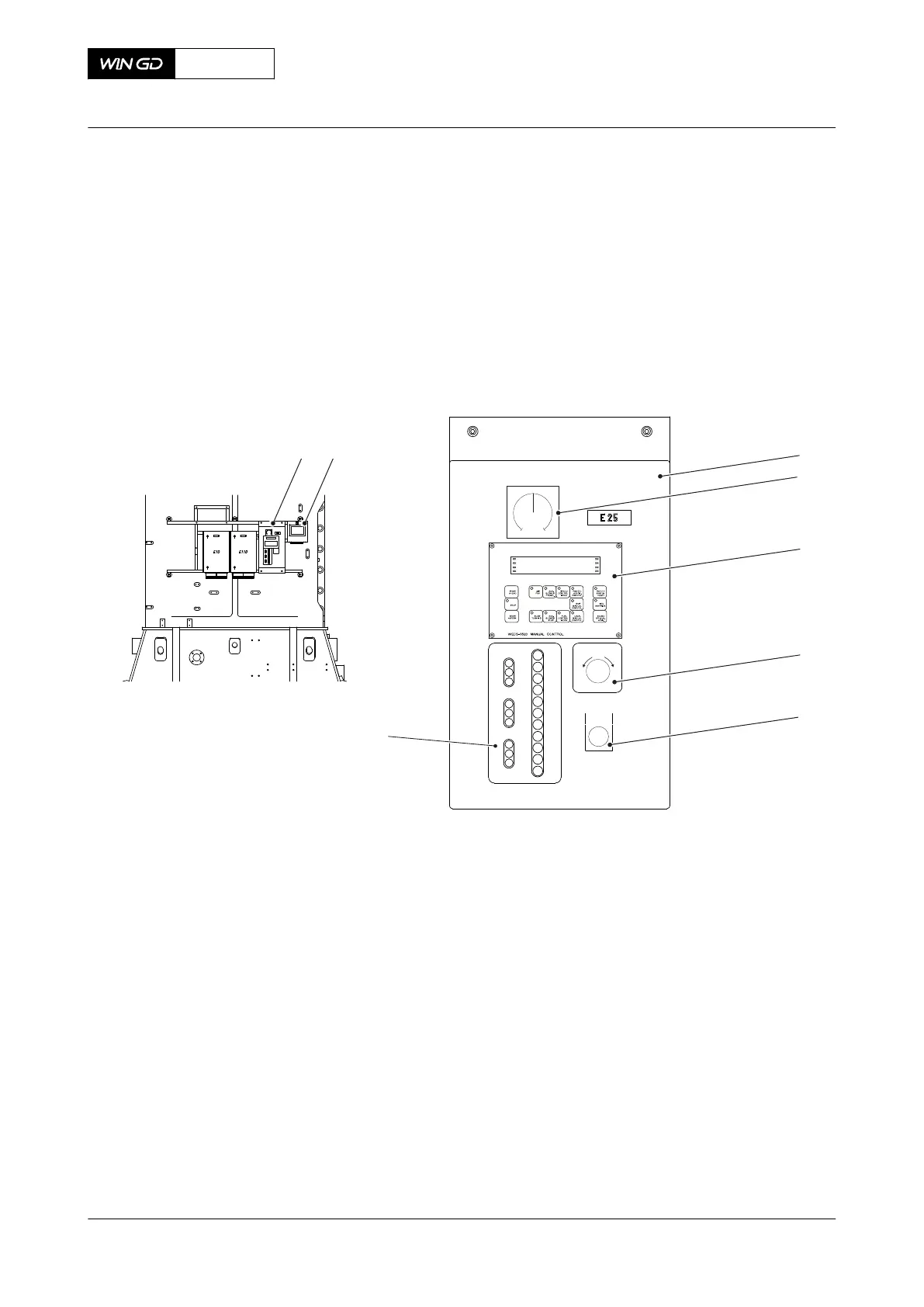

Fig 5-29 Local maneuvering stand (generic)
SPEED / FUEL
AST. AHD.
RPM
EMERG.
STOP
001 002
001
004
005
006
003
007
Legend
001 Local control panel 005 Rotary knob
002 Instrument panel 006 Emergency stop button
003 ME tachometer 007 Telegraph
004 WECS-9520 manual control panel
X92DF
AA00-4618-00AAB-043A-A
Operation Manual Local maneuvering stand - Option B
Winterthur Gas & Diesel Ltd.
- 200 - Issue 002 2020-08
