WinGD X92DF User Manual

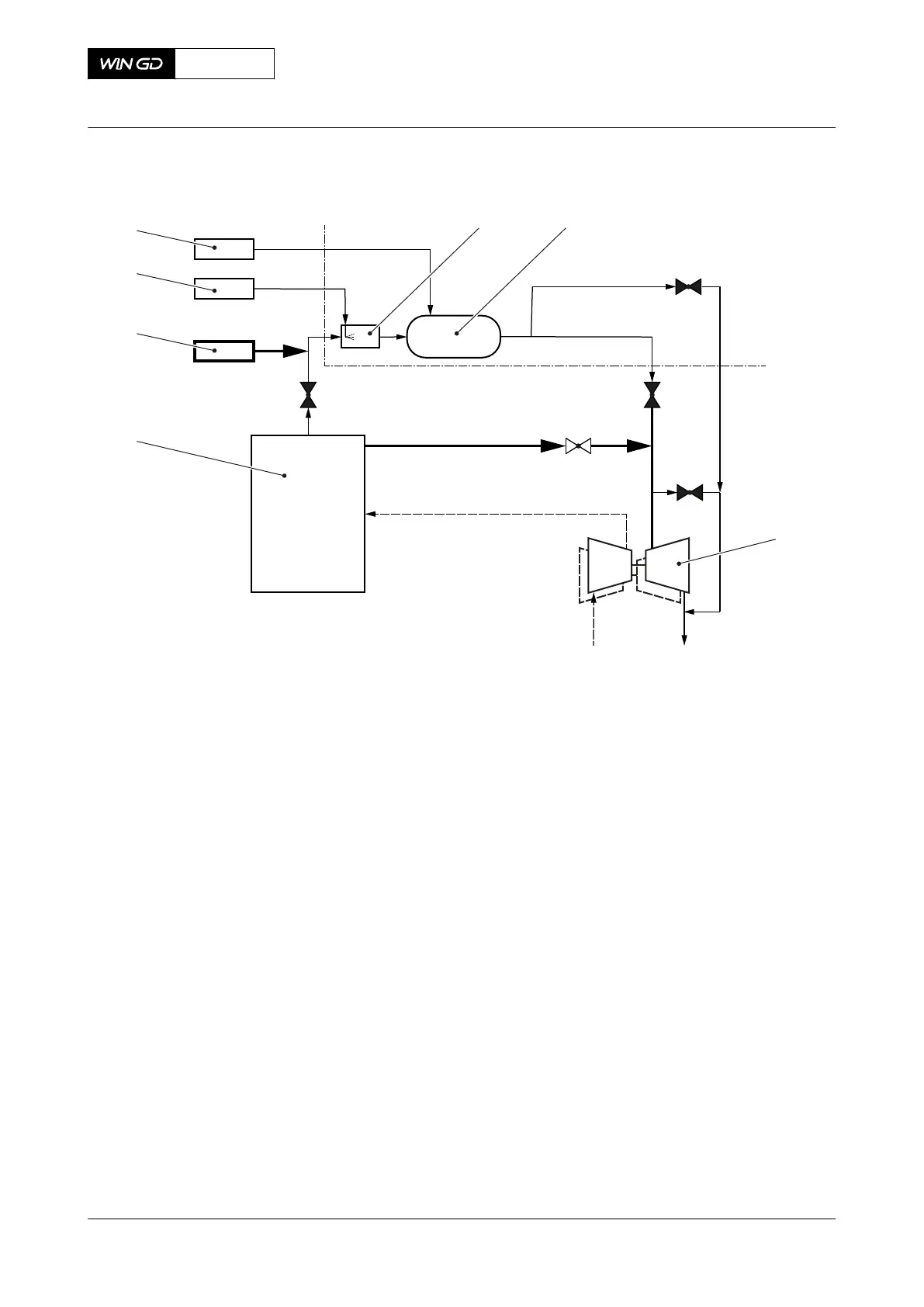

Fig 4-30 HP SCR system - emergency bypass
V1 V2
V3
V7
V4
003
001
007
006
005
004
002
Legend
001 Mixing duct 005 Venting/sealing unit
002 Reactor 006 Urea solution supply unit
003 Turbine of turbocharger 007 Soot blowing unit
004 Engine
X92DF
AA00-9270-00AAA-043A-A
Operation Manual HP Selective catalytic reduction system
Winterthur Gas & Diesel Ltd.
- 126 - Issue 002 2020-08
