4.15.3.2 Control box E49
The control box E49 is installed in the engine control room and has switches below the LDU-20.

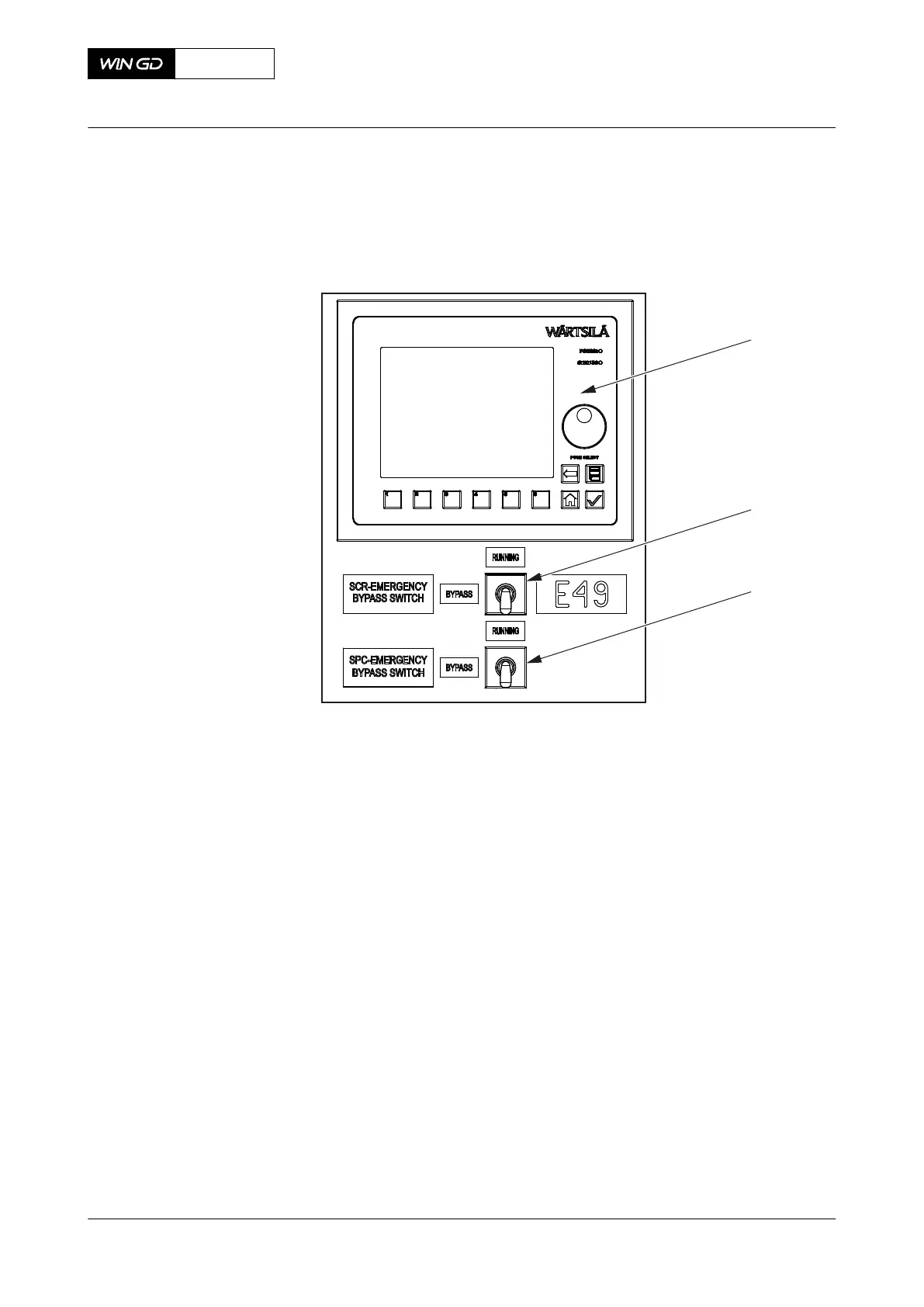

Fig 4-35 Control box E49
00562
001
002
003
Legend
001 LDU-20 003 Option SPC - SPC bypass switch
