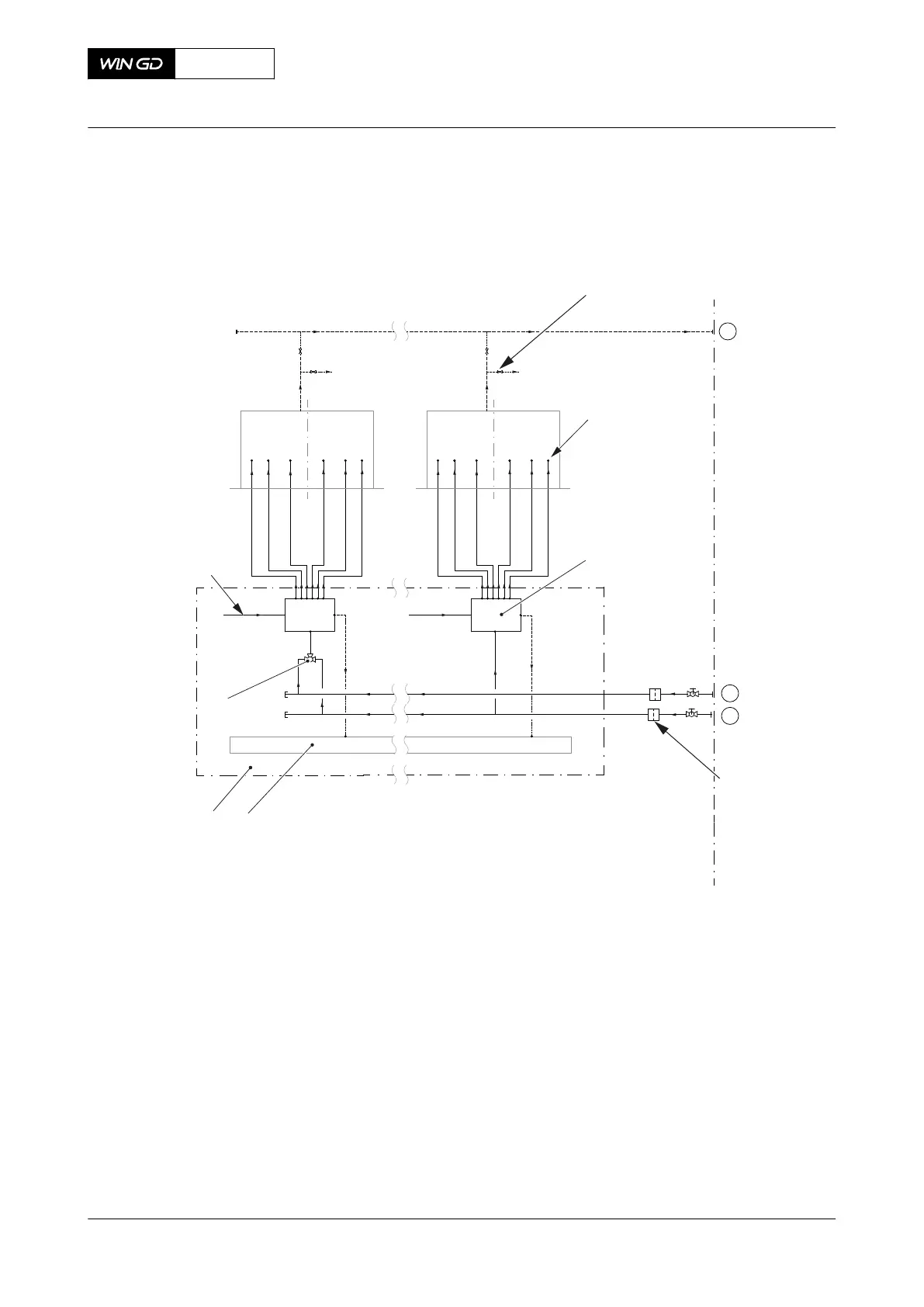

Fig 4-6 Cylinder oil system (generic and simplified, with and without iCAT)
ENGINE
PLANT
33
32
36
Cyl. 1 Cyl. n
005006
008
iCAT
007
004
003
002
001
Legend
001 Oil sample valve 005 Square collector pipe
002 Lubricating quill 006 Rail unit
003 Cylinder lubricating pump 007 Change-over valve
004 Duplex oil filter 008 Servo oil supply
X92DF
AA00-0000-00AAA-043R-A
Operation Manual Cylinder oil system
Winterthur Gas & Diesel Ltd.
- 89 - Issue 002 2020-08
