Planning
3066501_201910 WOLF GmbH | 29
DWTK
≥ 150 cm²
min. 2500
min. 600
max.1000
min. 605
max.2000
min. 600
max.1000
min. 600
max.1000

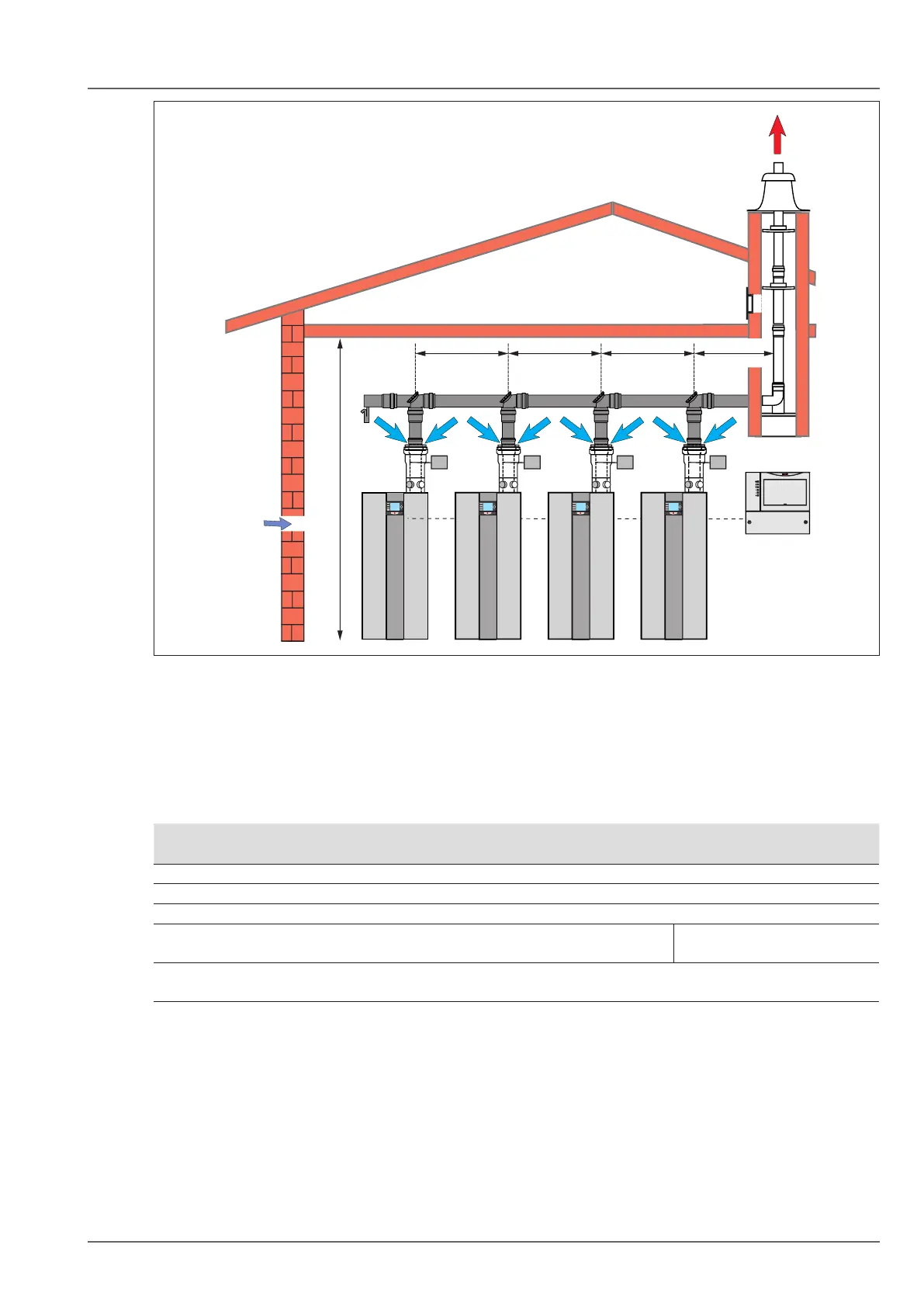

Table 4.12 Cascade control with header
Maximumheight-uegasroutingwithheader
Conditions for calculation:
➠ Maximum length of ue between individual heat generators 1 m
➠ Maximum length of ue after the nal heat generator 2 m
➠ Geodetic height: 325 m
► If the conditions at the installation site are different, an individual calculation is required.
Number 2 x 2 x 3 x 4 x 2 x 3 x 4 x
COB-2 29 29 29 29 40 40 40
Installation Type B23
Flue internal diameter DN 110 160 160 160 160 160 160
Total ue gas mass ow rate g/s 26.6 26.6 40.0 53.3 35.0 52.5 70.0
Maximum ue gas
temperature
°C 76 83
Maximum effective building
height
m 30
Table 4.13 Maximumheight-uegasroutingwithheader
Min.
Min.
Max. Max. Max. Max.
Min. Min. Min.
