5.10.5 Connecting the terminal box
► Make the electrical connection at the rear of the heat generator as shown in the image.
 

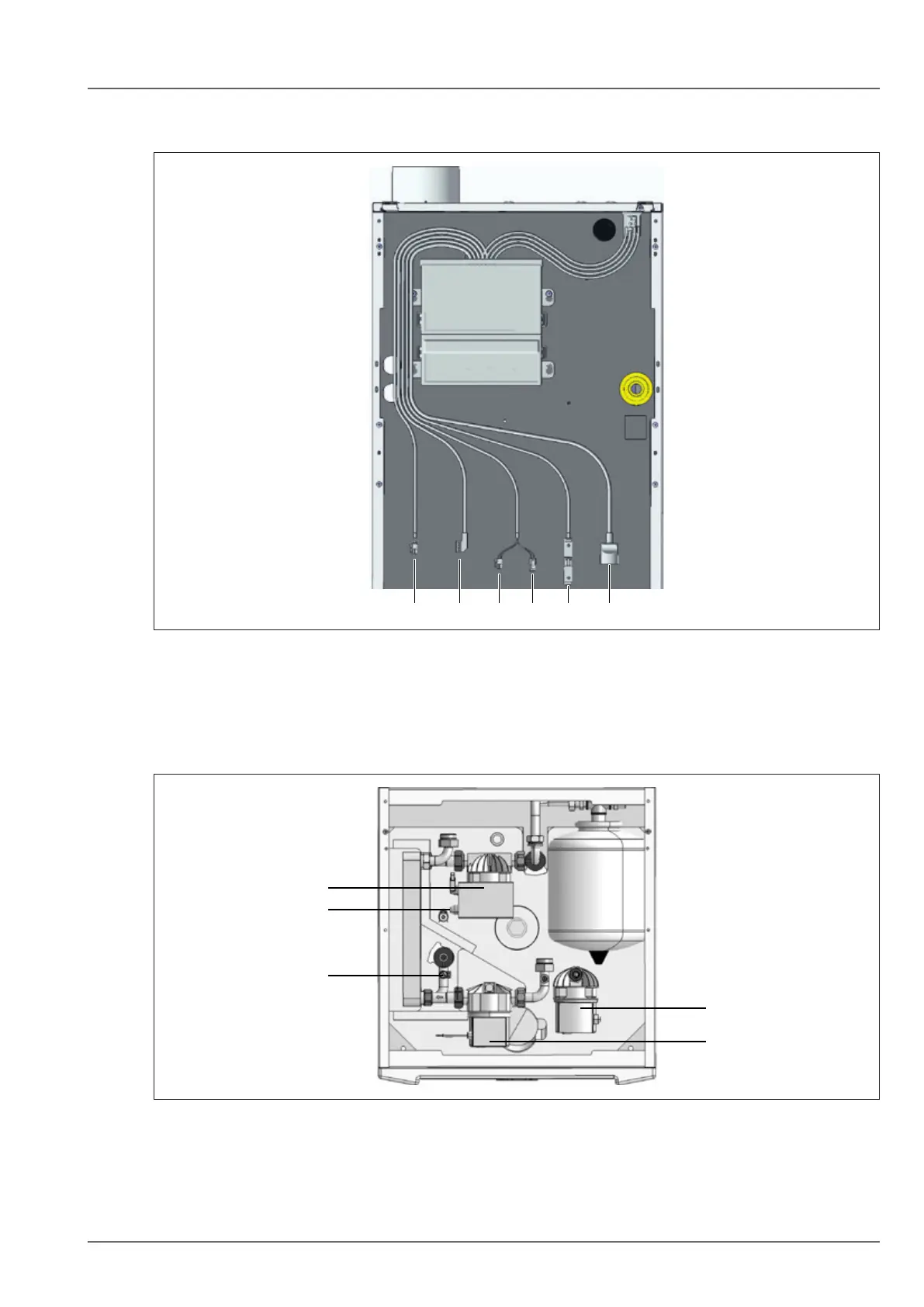

Fig. 5.21 Electrical connection at the rear of the oil condensing boiler
q PWM signal for variable speed heating circuit
pump
w Regulated TS stratication pump
e Control signal, stratication pump
r Stratication sensor
t Alarm switch, condensate pump
y Power plug, condensate pump
► Make the electrical connection at the TS stratication cylinder as shown in the image.





Fig. 5.22 ElectricalconnectionattheTSstraticationcylinder
q Regulated TS stratication pump
w Control signal, stratication pump
e Stratication sensor
r A1 programmable output
t Cylinder primary pump (PP)
► Make the electrical connection at the terminal box as shown in the image.
