Installation
36 | WOLF GmbH 3066501_201910
► use an I/O module (extension module) for two congurable inputs/outputs (accessory).
► Connect anti-lift valve to output A3.
► Connect and congure A3 (7.2.27 HG58: Output A3).
Alternative:
► Use the adaptor plug.
► Connect the adapter between the oil pump motor and the motor plug.
5.8 Connecting the condensate drain
DANGER
Escapeofuegases!
Risk of asphyxiation or severe to life-threatening poisoning.
► The trap and neutralising box must be lled with water prior to commissioning.
5.8.1 Connecting the trap
► Remove the sealing plug on the trap plug so that the condensate can drain freely. Otherwise, this
leads to an operating fault.
► Connect the trap to the connectors on the combustion chamber pan.
► Connect a drain hose to the trap and the on-site drain.
► Make sure that the line has a consistent downward incline and is properly ventilated.



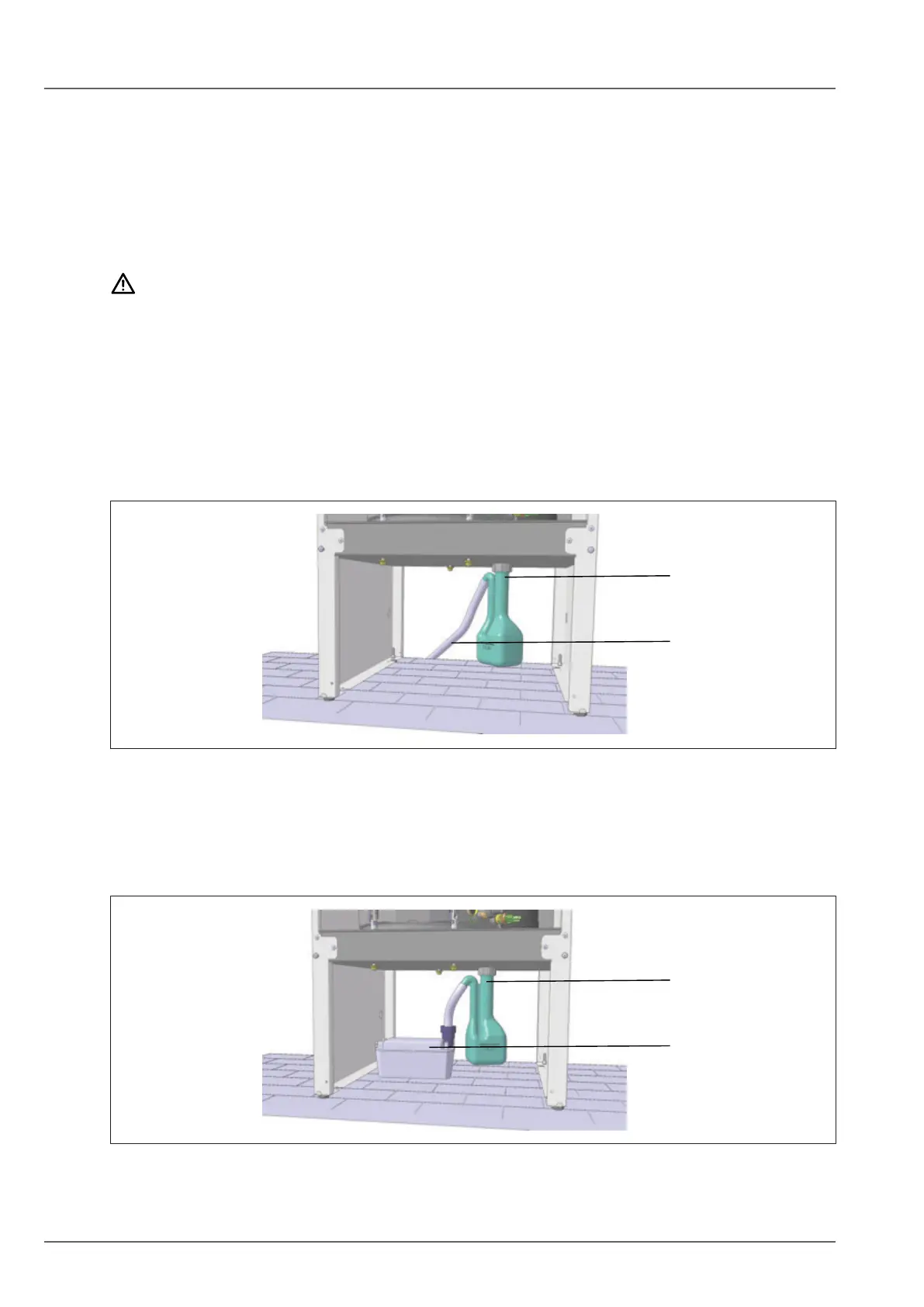

Fig. 5.11 Trap with drain hose
q Trap w Drain hose
5.8.2 Connecting the condensate pump
► Feed the drain hose of the trap into the condensate pump.
► Connect the condensate pump and the on-site drain.




Fig. 5.12 Trap with condensate pump
q Trap w Condensate pump
