Wolf COB-2 - Product Description; Boiler and Cylinder Components

Description
3066501_201910 WOLF GmbH | 09
3 Description
3.1 Layout of COB-2-TS oil condensing boiler
AB















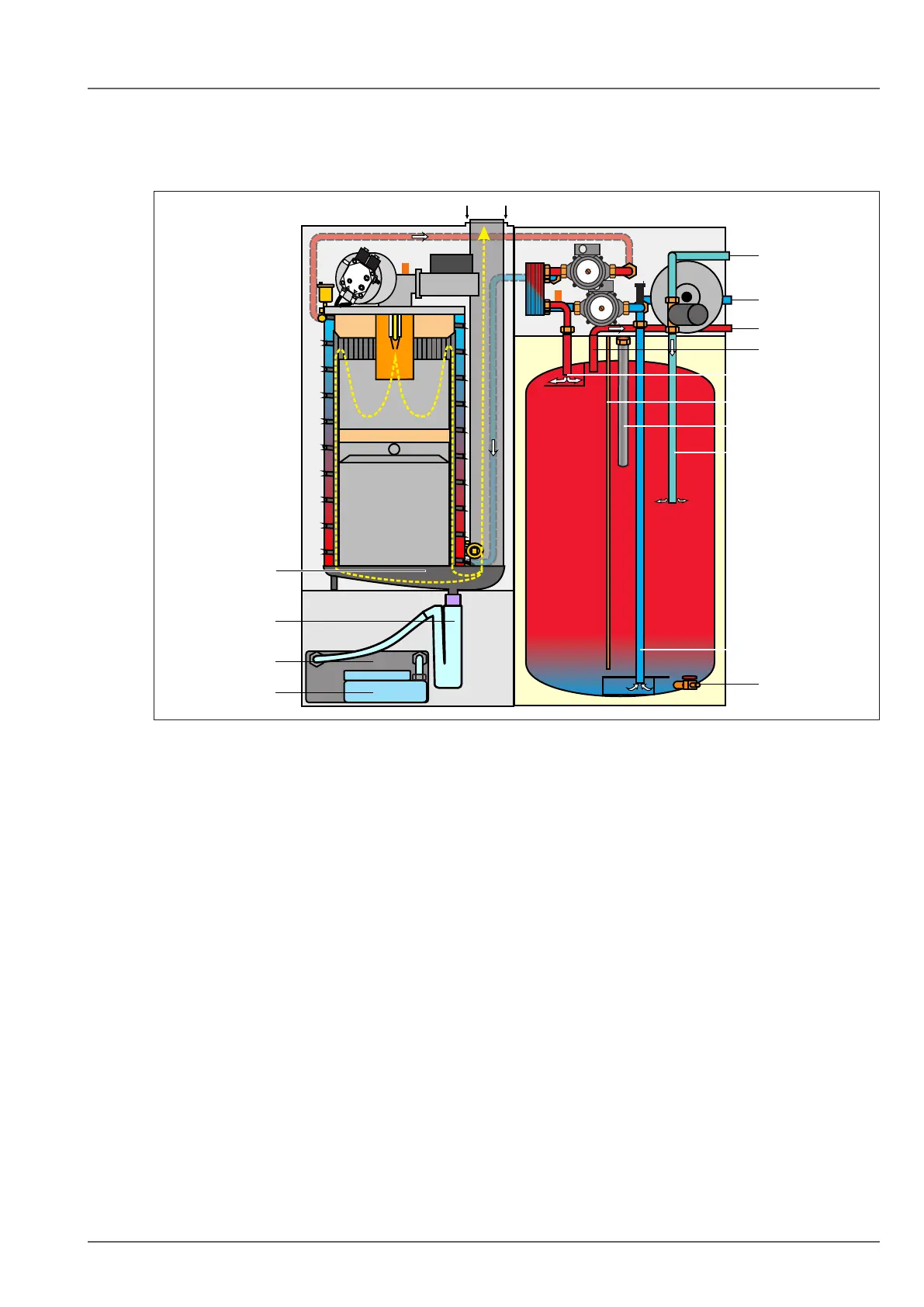

Fig. 3.1 Layout of COB-2-TS oil condensing boiler
A COB-2-15/20/29/40 oil condensing boiler
B TS-15/20/29 stratication cylinder
q Condensate pan
w Trap
e Neutralising system (accessory)
r Condensate pump (accessory)
t Circulation
y Cold water
u Domestic hot water
i DHW draw-off at the highest point
o Cylinder heating from above with deector and
divider
a Sensor well for cylinder temperature sensor
s Protective magnesium anode
d Circulation line
f CW stratication pipe
g Drain (in standard delivery)
