Xerox COLORQUBE 8570 Service Manual

October 2012
4-9
ColorQube 8570/8870 Service Manual
REP 1.9
Repairs and Adjustments
Xerox Internal Use Only - Revised, 3rd Revision
REP 1.9 Ink Loader Bezel
Parts List on PL 1.1 Item 9
Removal
1. Remove the Control Panel Cover (REP 1.5).
2. Remove the Left Side Cover (REP 1.10).
3. Remove the Right Side Cover (REP 1.11).
4. Remove the Exit Cover (REP 1.7).
5. Remove the Ink Loader (REP 1.8).
6. Open the Ink Loader Cover.
7. Push the Ink Loader Cover Left and Right Handles towards the outer side of the Ink
Loader Assembly and release the Handles.

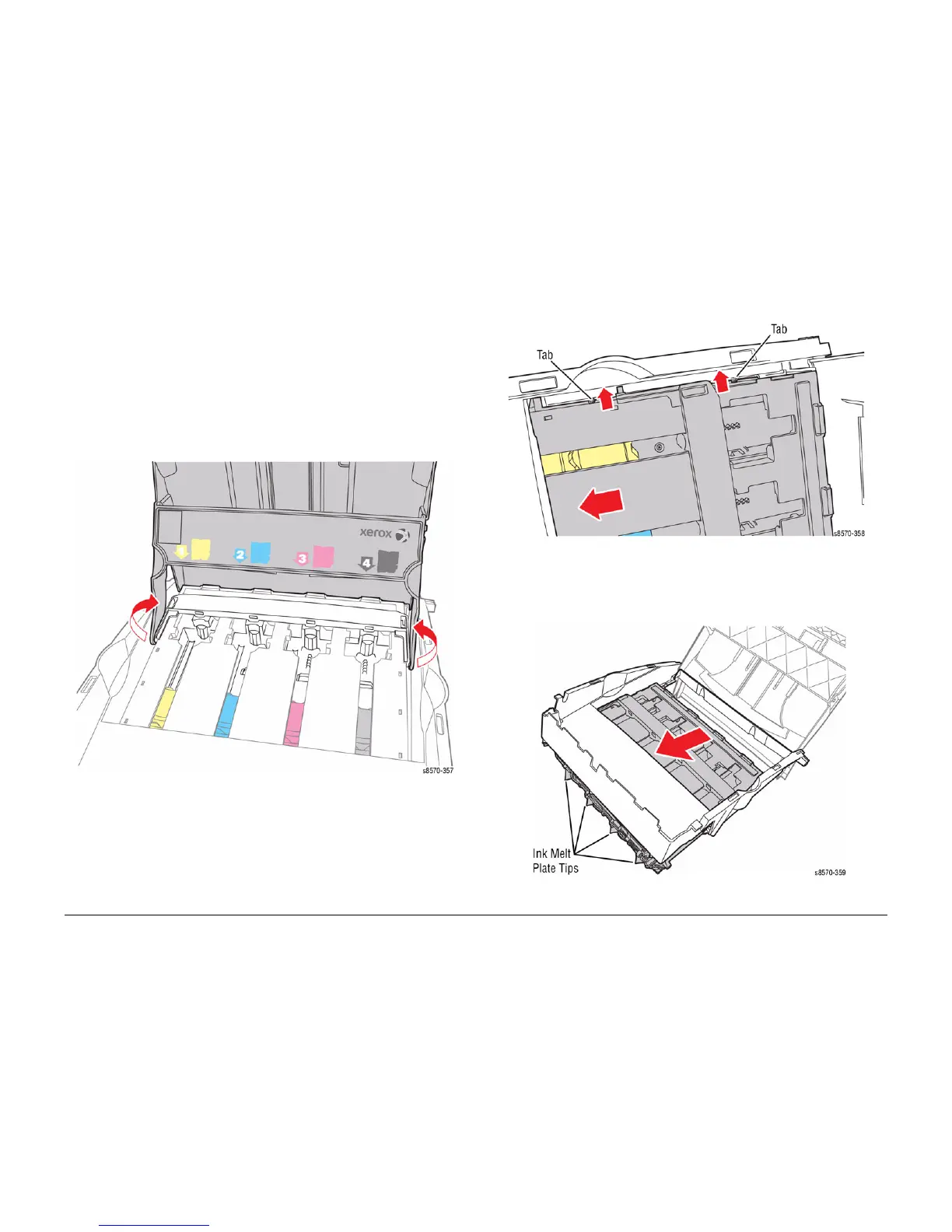

Figure 1 Releasing the Handles
8. Push the Ink Loader Bezel outward and the Ink Loader Assembly towards the open side
to release the tabs from the Ink Loader Assembly.
Figure 2 Removing the Ink Loader Assembly
CAUTION
Be careful not to damage the Ink Melt Plates.
9. Slide the Ink Loader Assembly out from the Bezel.
Figure 3 Removing the Ink Loader Bezel

Xerox COLORQUBE 8570 Specifications

General

Print Technology	Solid Ink
Monthly Duty Cycle	Up to 85, 000 pages
First Page Out Time (Color)	As fast as 5 seconds
First Page Out Time (B&W)	As fast as 5 seconds
Memory (Maximum)	1 GB
Output Capacity	350 sheets
Supported Operating Systems	Windows, Mac OS, Linux
Print Speed	Up to 40 ppm color / 40 ppm black
Connectivity	USB 2.0, Ethernet
Print Languages	PCL 6, PostScript 3, PDF
