Xerox COLORQUBE 8570 Service Manual

October 2012
4-87
ColorQube 8570/8870 Service Manual
REP 5.4
Repairs and Adjustments
Xerox Internal Use Only - Revised, 3rd Revision
REP 5.4 NVRAM
Parts List on PL 5.1 Item 4
Removal
CAUTION
NVRAM is vulnerable to ESD. Review the Electrostatic Discharge Precautions procedures in
the Introduction Chapter.
1. Remove the 2 thumbscrews on the Rear Panel of the Electronics Module and remove the
Rear Panel.

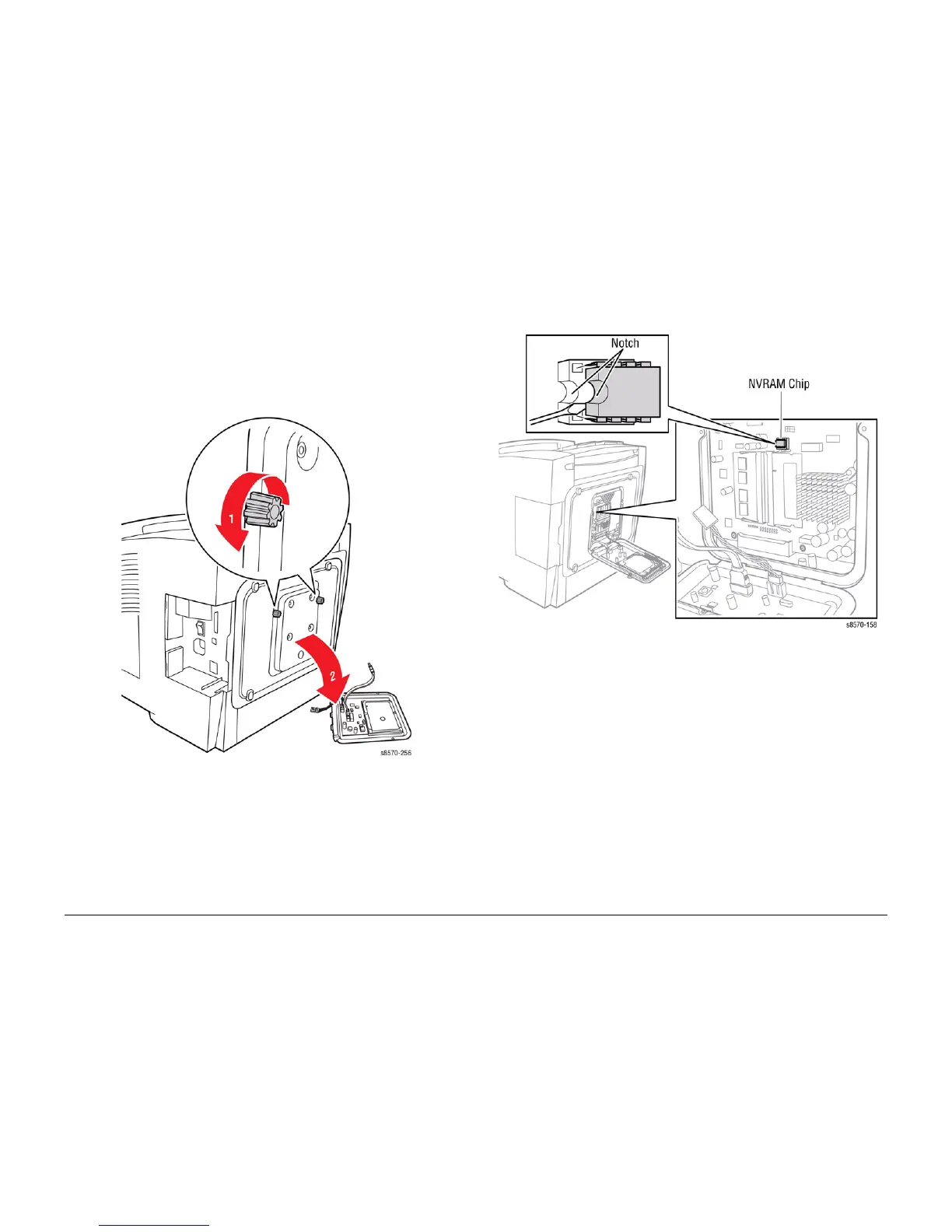

Figure 1 Removing the Back Cover
NOTE: Observe the orientation of the NVRAM devices before removing it from the Board.
2. Exchange the NVRAM.
Figure 2 Removing the NVRAM

Xerox COLORQUBE 8570 Specifications

General

Print Technology	Solid Ink
Monthly Duty Cycle	Up to 85, 000 pages
First Page Out Time (Color)	As fast as 5 seconds
First Page Out Time (B&W)	As fast as 5 seconds
Memory (Maximum)	1 GB
Output Capacity	350 sheets
Supported Operating Systems	Windows, Mac OS, Linux
Print Speed	Up to 40 ppm color / 40 ppm black
Connectivity	USB 2.0, Ethernet
Print Languages	PCL 6, PostScript 3, PDF
