Xerox COLORQUBE 8570 Service Manual

October 2012
4-74
ColorQube 8570/8870 Service Manual
REP 4.6
Revised, 3rd Revision - Xerox Internal Use Only
Repairs and Adjustments
REP 4.6 Tray 2 Lift Motor
Parts List on PL 4.1 Item 6
Removal
1. Remove the Control Panel Cover (REP 1.5).
2. Remove the Left Side Cover (REP 1.10).
3. Remove the Right Side Cover (REP 1.11).
4. Remove the Exit Cover (REP 1.7).
5. Remove the Ink Loader (REP 1.8).
6. Remove the Electronics Module (REP 5.1).
7. Remove Tray 2.
8. Remove the Lift Motor Gear by prying the Push Nut off the shaft.
NOTE: Replace the Push Nut with a new one when installing the gear.

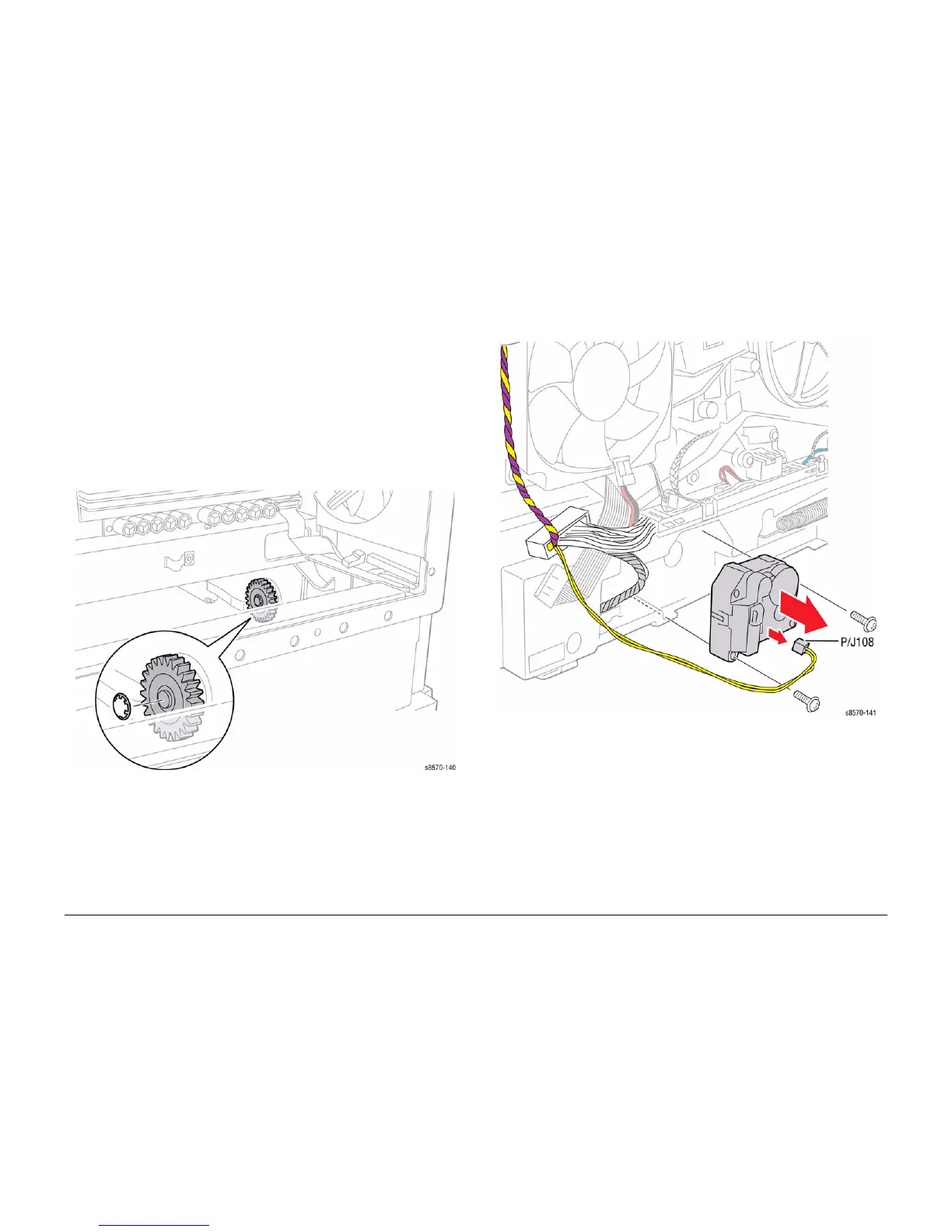

Figure 1 Removing the Lift Motor Gear
9. Disconnect the Tray 2 Lift Motor wiring harness connector P/J108 from the Motor.
10. Remove 2 screws that secure the Tray 2 Lift Motor to the chassis.
11. Remove the Tray 2 Lift Motor.
Figure 2 Removing the Tray 2 Lift Motor
Replacement
Check that the bushing tabs are properly seated in the chassis. To seat the new Push Nut,
position the Push Nut so the fingers point away from the shaft. Place a 3/8 in. nut driver over
the nut and press firmly to seat the nut on the shaft.
