ColorQube 8570/8870 Service Manual
REP 2.1, REP 2.2
Repairs and Adjustments
Xerox Internal Use Only - Revised, 3rd Revision
REP 2.1 Funnel Cap
Parts List on PL 2.1 Item 1
Removal
WARNING
Allow adequate time for the printer to cool before servicing. The Printhead could still be
hot.
1. Remove the Control Panel Cover (REP 1.5).
2. Remove the Left Side Cover (REP 1.10).
3. Remove the Right Side Cover (REP 1.11).
4. Remove the Exit Cover (REP 1.7).
5. Remove the Ink Loader (REP 1.8).
6. Release the Funnel Cap from the left and right pins.
7. Lift and remove the Funnel Cap.

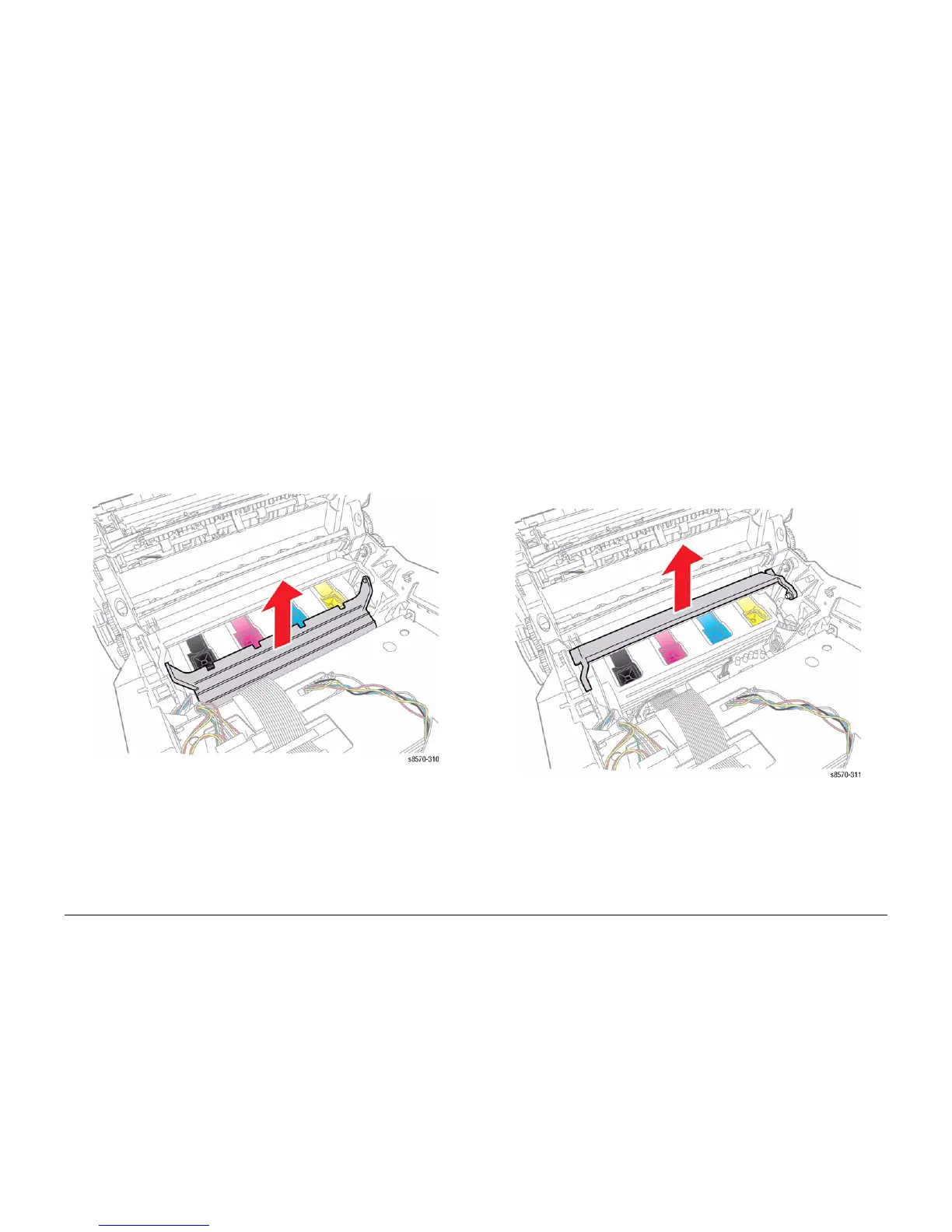

Figure 1 Removing the Funnel Cap
REP 2.2 Jetstack Cap
Parts List on PL 2.1 Item 2
Removal
WARNING
Allow adequate time for the printer to cool before servicing. The Printhead could still be
hot.
1. Remove the Control Panel Cover (REP 1.5).
2. Remove the Left Side Cover (REP 1.10).
3. Remove the Right Side Cover (REP 1.11).
4. Remove the Exit Cover (REP 1.7).
5. Remove the Ink Loader (REP 1.8).
6. Remove the Funnel Cap (REP 2.1).
7. Release the Jetstack Cap from the left and right pins.
8. Lift and remove the Jetstack Cap.
Figure 1 Removing the Jetstack Cap
