October 2012
4-34
ColorQube 8570/8870 Service Manual
REP 2.5, REP 2.6
Revised, 3rd Revision - Xerox Internal Use Only
Repairs and Adjustments
REP 2.5 Y-Axis Belt
Parts List on PL 2.1 Item 5
Removal
1. Remove the Control Panel Cover (REP 1.5).
2. Remove the Left Side Cover (REP 1.10).
3. Release tension on the Y-Axis Belt by pushing the end of the Spring Arm toward the front
of the printer.
4. Hold tension with one hand while removing the Y-Axis Belt with the other.

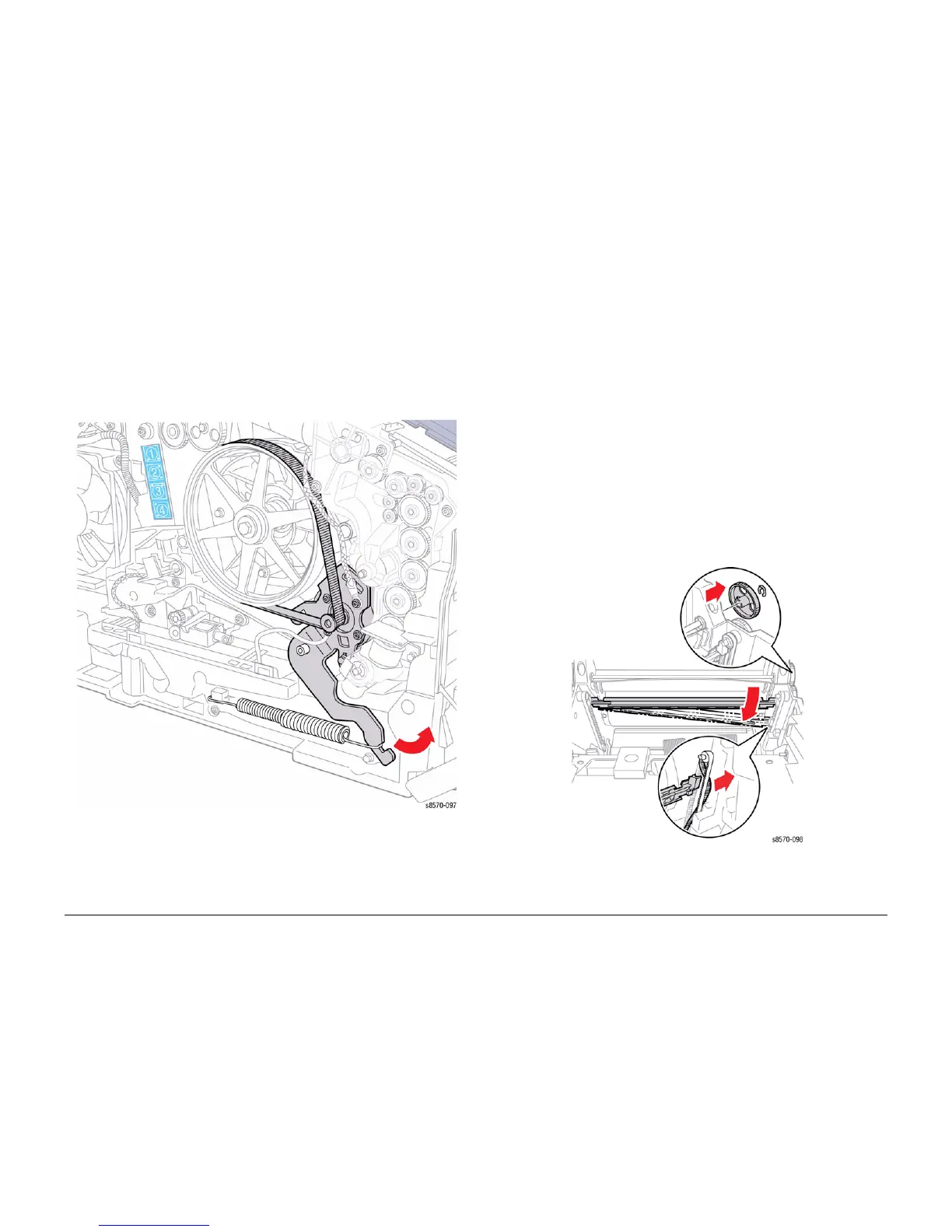

Figure 1 Removing the Y-Axis Belt
REP 2.6 Printhead Wiper and Wiper Drive Belt
Parts List on PL 2.1 Item 6, PL 2.1 Item 7
Removal
NOTE: Place several sheets of paper between the Printhead and Drum before servicing the
Printhead Wiper.
1. Remove the Control Panel Cover (REP 1.5).
2. Remove the Left Side Cover (REP 1.10).
3. Remove the Right Side Cover (REP 1.11).
4. Remove the Exit Cover (REP 1.7).
5. Remove the Ink Loader (REP 1.8).
6. Remove the Funnel Cap (REP 2.1).
7. Remove the Jetstack Cap (REP 2.2).
8. Remove the Printhead (REP 2.3).
9. Using the gears, position the Printhead Wiper Blade at the top of its travel.
10. Remove the KL-Clip and large drive gear on the left side of the printer.
11. Hold the Wiper while rotating the small drive gear. This lowers the left end of the wiper
producing slack in the Wiper Belt. Remove the Wiper Belt from the Wiper Clip to release
the Wiper.
Figure 1 Removing the Printhead Wiper Belt and Wiper Drive Belt
To Next Page
