Xerox COLORQUBE 8570 Service Manual

October 2012
4-10
ColorQube 8570/8870 Service Manual
REP 1.9, REP 1.10
Revised, 3rd Revision - Xerox Internal Use Only
Repairs and Adjustments
Replacement
Be sure to place the rail of the Ink Loader Assembly underneath the tab of the Bezel.

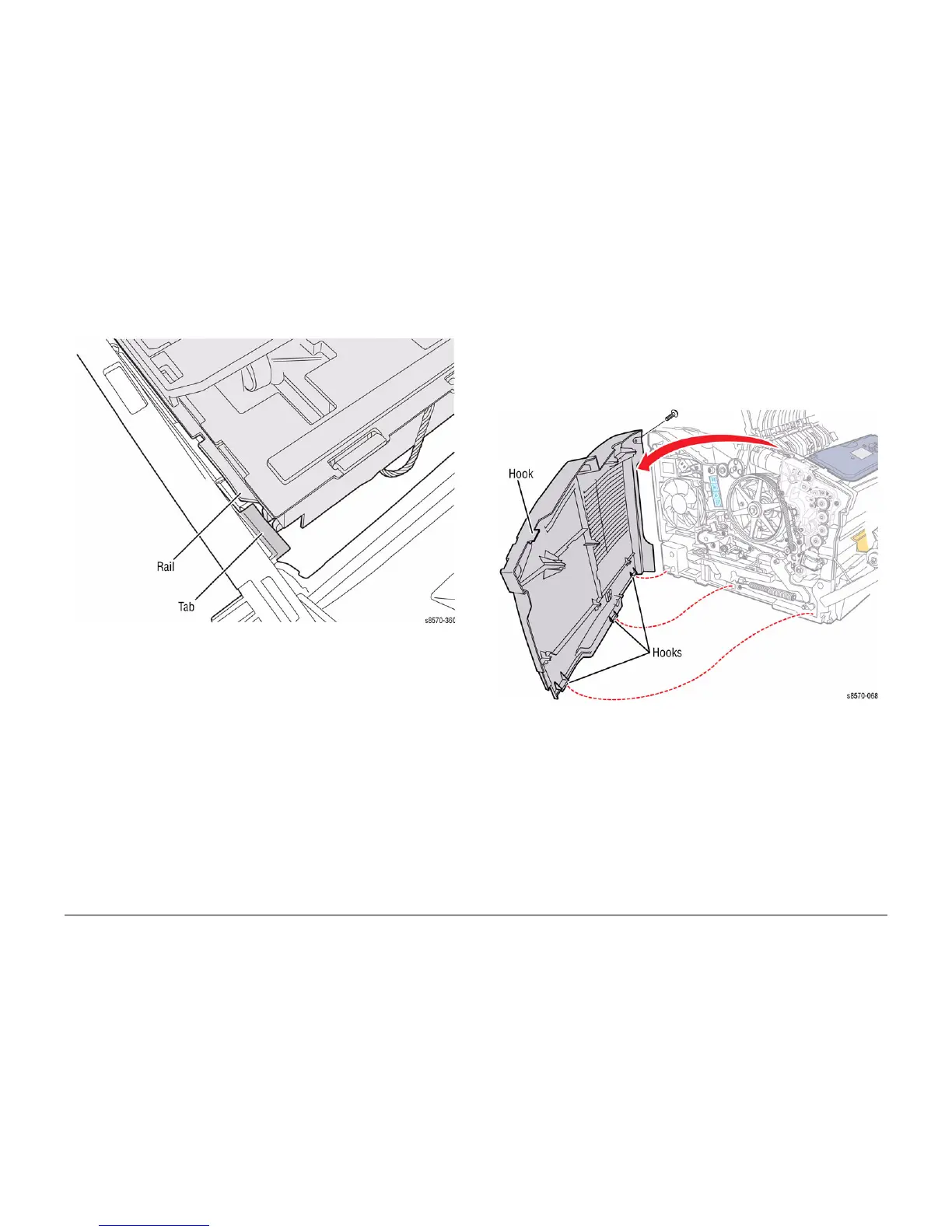

Figure 4 Aligning the Rail and Tab
REP 1.10 Left Side Cover
Parts List on PL 1.1 Item 10
Removal
1. Open the Exit Cover and Front Door.
2. Remove the Control Panel Cover (REP 1.5).
3. Remove 1 screw (metal, T-20) that secures the Left Side Cover.
4. Release the hooks on the Cover from the printer and remove the Left Side Cover.
Figure 1 Removing the Left Side Cover

Xerox COLORQUBE 8570 Specifications

General

Print Technology	Solid Ink
Monthly Duty Cycle	Up to 85, 000 pages
First Page Out Time (Color)	As fast as 5 seconds
First Page Out Time (B&W)	As fast as 5 seconds
Memory (Maximum)	1 GB
Output Capacity	350 sheets
Supported Operating Systems	Windows, Mac OS, Linux
Print Speed	Up to 40 ppm color / 40 ppm black
Connectivity	USB 2.0, Ethernet
Print Languages	PCL 6, PostScript 3, PDF
