October 2012
4-88
ColorQube 8570/8870 Service Manual
REP 5.5, REP 5.6
Revised, 3rd Revision - Xerox Internal Use Only
Repairs and Adjustments
REP 5.5 Configuration Card
Parts List on PL 5.1 Item 5
Removal
CAUTION
Handle the Configuration with care to prevent damaging the Card.
1. Remove the I/O Access Door (REP 1.13).
2. Press the Configuration Card towards the rear of the printer at angle and pull the Configu-
ration Card out from the Electronics Module.

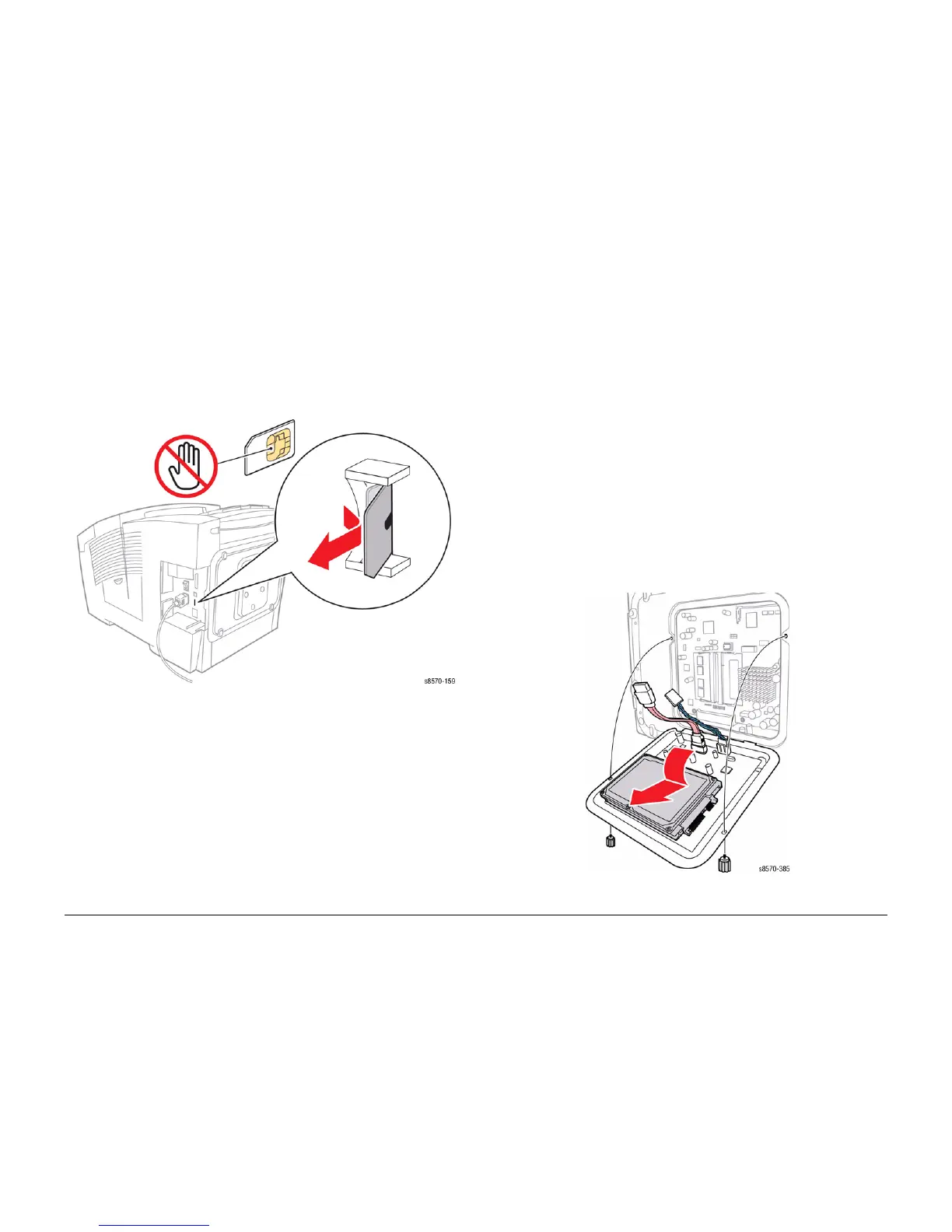

Figure 1 Removing the Configuration Card
REP 5.6 Circuit Boards (Power Supply, Main Controller,
Power Control)
Parts List on PL 5.1 Item 6, PL 5.1 Item 7, PL 5.1 Item 8
Removal
WARNING
Be sure to disconnect AC power prior to disassemble the Electronics Module.
CAUTION
Touch the Electronics Module to discharge any static electricity before servicing the printer.
CAUTION
The circuit board is vulnerable to ESD. Review the Electrostatic Discharge Precautions proce-
dures in the Introduction Chapter.
1. Remove the Control Panel Cover (REP 1.5).
2. Remove the Left Side Cover (REP 1.10).
3. Remove the Right Side Cover (REP 1.11).
4. Remove the Exit Cover (REP 1.7).
5. Remove the Ink Loader (REP 1.8).
6. Remove the Electronics Module (REP 5.1).
7. Remove 2 thumbscrews that secure the Rear Panel and remove the Rear Panel.
8. Disconnect the Hard Disk Drive wiring harness connectors from the Main Controller
Board (if a Hard Disk Drive is installed).
Figure 1 Removing the Rear Panel
To Next Page
