October 2012
4-101
ColorQube 8570/8870 Service Manual
REP 6.7
Repairs and Adjustments
Xerox Internal Use Only - Revised, 3rd Revision
REP 6.7 Waste Tray Detect Sensor
Parts List on PL 6.1 Item 7
Removal
CAUTION
Place a couple sheets of paper between the Wiper Assembly and the Drum to protect the
Drum while performing this procedure.
1. Remove the Control Panel Cover (REP 1.5).
2. Remove the Left Side Cover (REP 1.10).
3. Remove the Right Side Cover (REP 1.11).
4. Remove the Exit Cover (REP 1.7).
5. Remove the Ink Loader (REP 1.8).
6. Remove the Funnel Cap (REP 2.1).
7. Remove the Jetstack Cap (REP 2.2).
8. Remove the Printhead (REP 2.3).
9. Remove the Waste Tray (REP 1.15).
10. Remove the X-Axis Bias Spring (REP 2.24).
11. Remove 1 (metal, T-20) screw that secures the X-Axis Spring Retainer to the chassis.

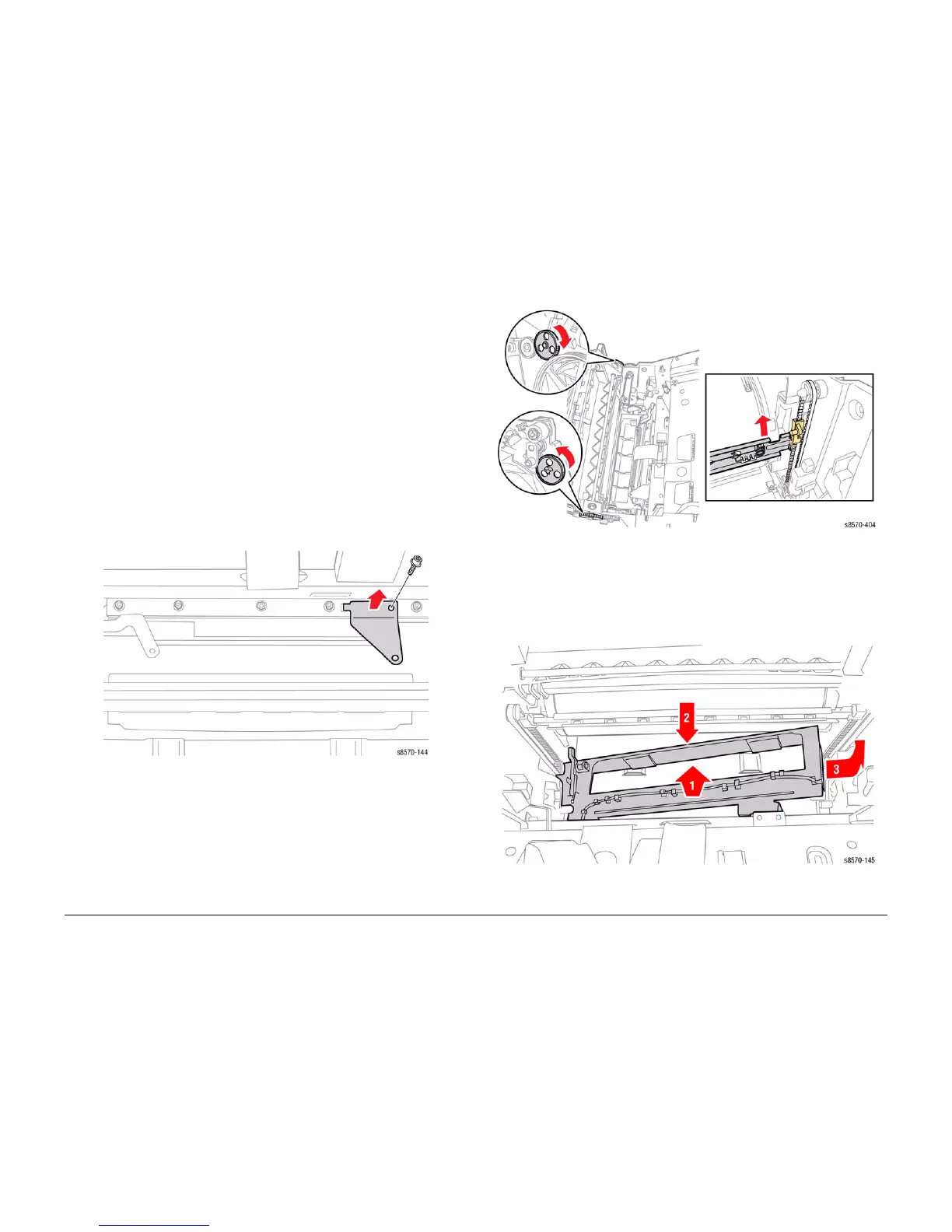

Figure 1 Removing the X-Axis Spring Retainer
12. Raise the Wiper Blade to the top of its travel.
Figure 2 Raising the Wiper Blade
13. Remove the Waste Tray Cover without disconnecting the Waste Tray Sensor harness.
a. Lift the center of the cover to release the right side hook.
b. Move the cover towards the rear to release the 2 tabs from the chassis.
c. Pull the cover to the right to release the left hook and position the cover out of the
way.
Figure 3 Removing the Waste Tray Cover
To Next Page
