Xerox COLORQUBE 8570 Service Manual

October 2012
4-85
ColorQube 8570/8870 Service Manual
REP 5.2, REP 5.3
Repairs and Adjustments
Xerox Internal Use Only - Revised, 3rd Revision
Replacement
1. Be sure to connect the Hard Disk Drive wiring harness connectors securely.

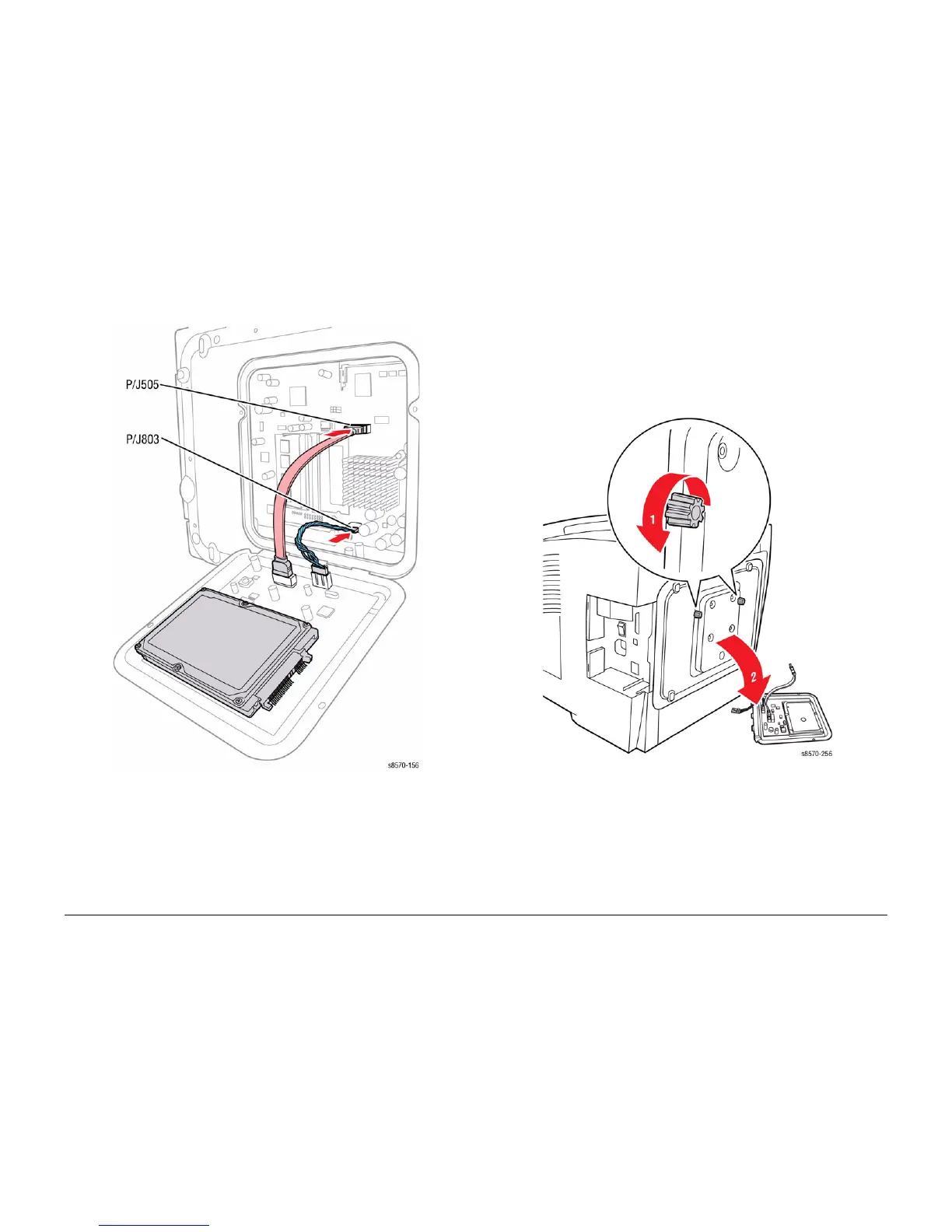

Figure 3 Installing the Hard Disk Drive
REP 5.3 RAM
Parts List on PL 5.1 Item 3
Removal
CAUTION
RAM is vulnerable to ESD. Review the Electrostatic Discharge Precautions procedures in the
Introduction Chapter.
1. Remove the 2 thumbscrews on the Rear Panel of the Electronics Module and remove the
Rear Panel.
Figure 1 Removing the Screws and Rear Panel

Xerox COLORQUBE 8570 Specifications

General

Print Technology	Solid Ink
Monthly Duty Cycle	Up to 85, 000 pages
First Page Out Time (Color)	As fast as 5 seconds
First Page Out Time (B&W)	As fast as 5 seconds
Memory (Maximum)	1 GB
Output Capacity	350 sheets
Supported Operating Systems	Windows, Mac OS, Linux
Print Speed	Up to 40 ppm color / 40 ppm black
Connectivity	USB 2.0, Ethernet
Print Languages	PCL 6, PostScript 3, PDF
