Xerox COLORQUBE 8570 Service Manual

October 2012
4-86
ColorQube 8570/8870 Service Manual
REP 5.3
Revised, 3rd Revision - Xerox Internal Use Only
Repairs and Adjustments
NOTE: Observe the orientation of the RAM device before removing it from the Board.
CAUTION
Be careful when releasing the clips to prevent damaging them.
2. Release the clips that secure the RAM module and remove the RAM from the Main Con-
troller Board.

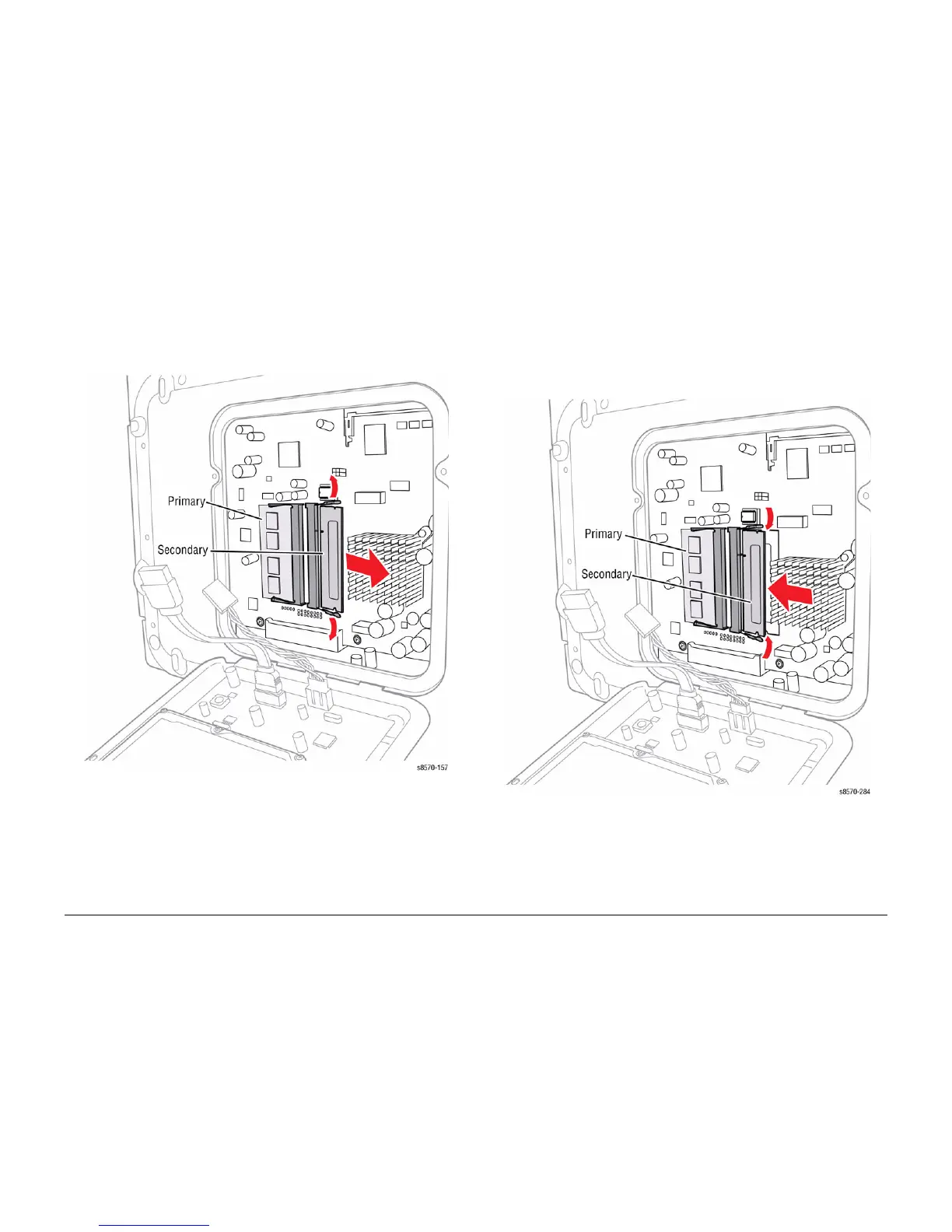

Figure 2 Removing the RAM
Replacement
NOTE: Memory should be installed in the primary socket before installing in the secondary
socket. The primary memory socket resides on the left side (away from the processor).
Upgrade memory should be added to the secondary memory slot residing on the right side
(close to the processor).
Be sure to secure the RAM in place.
Figure 3 Installing the RAM

Xerox COLORQUBE 8570 Specifications

General

Print Technology	Solid Ink
Monthly Duty Cycle	Up to 85, 000 pages
First Page Out Time (Color)	As fast as 5 seconds
First Page Out Time (B&W)	As fast as 5 seconds
Memory (Maximum)	1 GB
Output Capacity	350 sheets
Supported Operating Systems	Windows, Mac OS, Linux
Print Speed	Up to 40 ppm color / 40 ppm black
Connectivity	USB 2.0, Ethernet
Print Languages	PCL 6, PostScript 3, PDF
