Xerox COLORQUBE 8570 Service Manual

October 2012
5-4
ColorQube 8570/8870 Service Manual
PL 1.1
Revised, 3rd Revision - Xerox Internal Use Only
Parts List

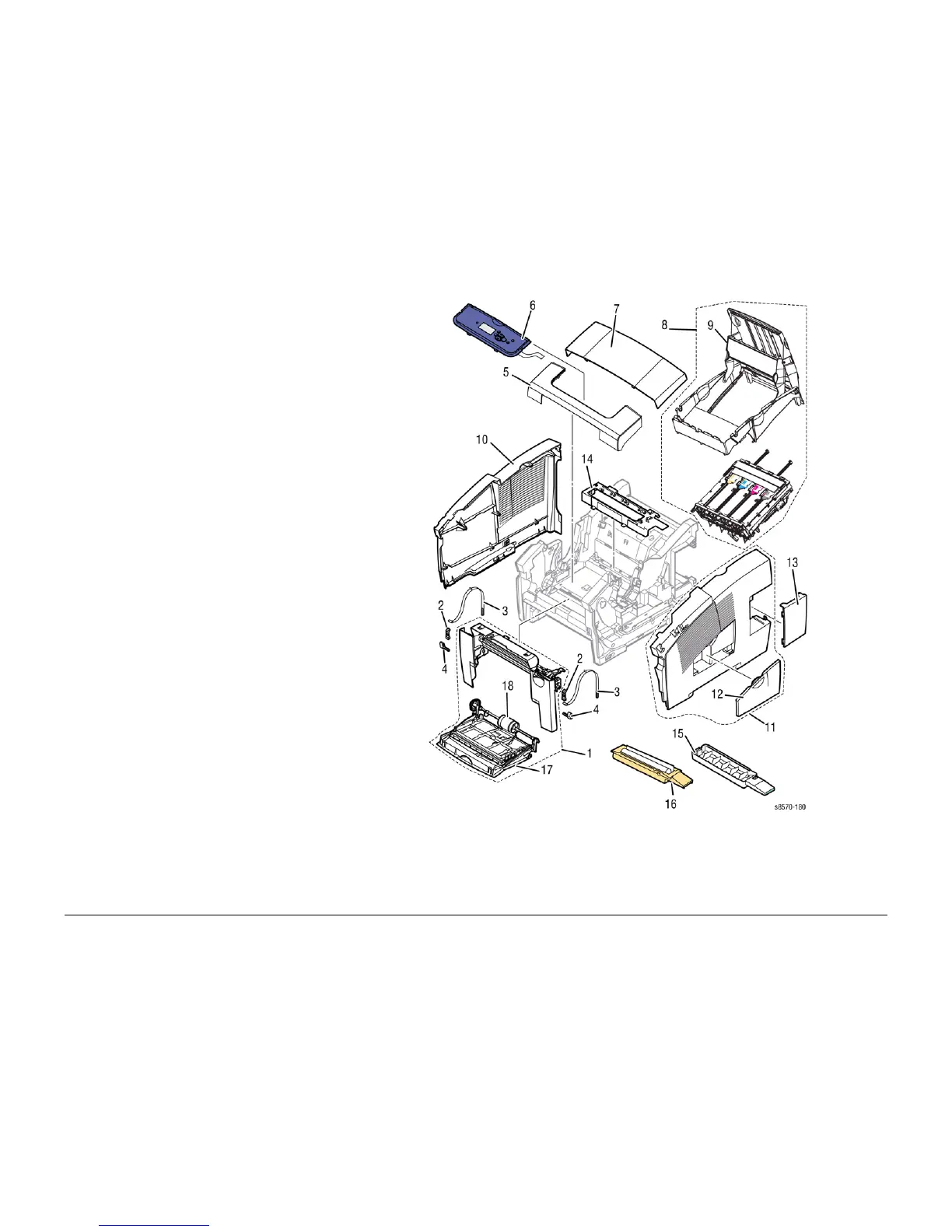

PL 1.1Covers
Item Part Description
1 848K48710 Front Door/ Tray 1 (MPT) Assembly
2 120E29140 Front Door Stay Retainer
3 009K02390 Front Door Stay with Spring
4 029E49330 Hinge Pins, Front Door
5 101E29410 Control Panel Cover
6 101K64840 Control Panel with Bezel
7 848E62810 Exit Cover
8 815K13120 Ink Loader & Bezel (8570)
– 815K13130 Ink Loader & Bezel (8870)
9 056E05490 Ink Loader Bezel
10 848E62700 Left Side Cover
11 848E62690 Right Side Cover with Doors
12 848E68810 Drum Maintenance Door (Side) (P/
O PL 1.1 Item 11)
13 101E29420 I/O Access Door (P/O PL 1.1 Item
11)
14 – Waste Tray Cover
15 109R00754 Waste Tray
16 109R00784 Drum Maintenance Unit, Standard
– 109R00783 Drum Maintenance Unit, Extended
17 050K68070 MPT Tray Arm (P/O PL 1.1 Item 1)
18 059K63590 MPT Pick Roller (P/O PL 1.1 Item
1)
