Xerox COLORQUBE 8570 Service Manual

October 2012
5-9
ColorQube 8570/8870 Service Manual
PL 6.1
Parts List
Xerox Internal Use Only - Revised, 3rd Revision

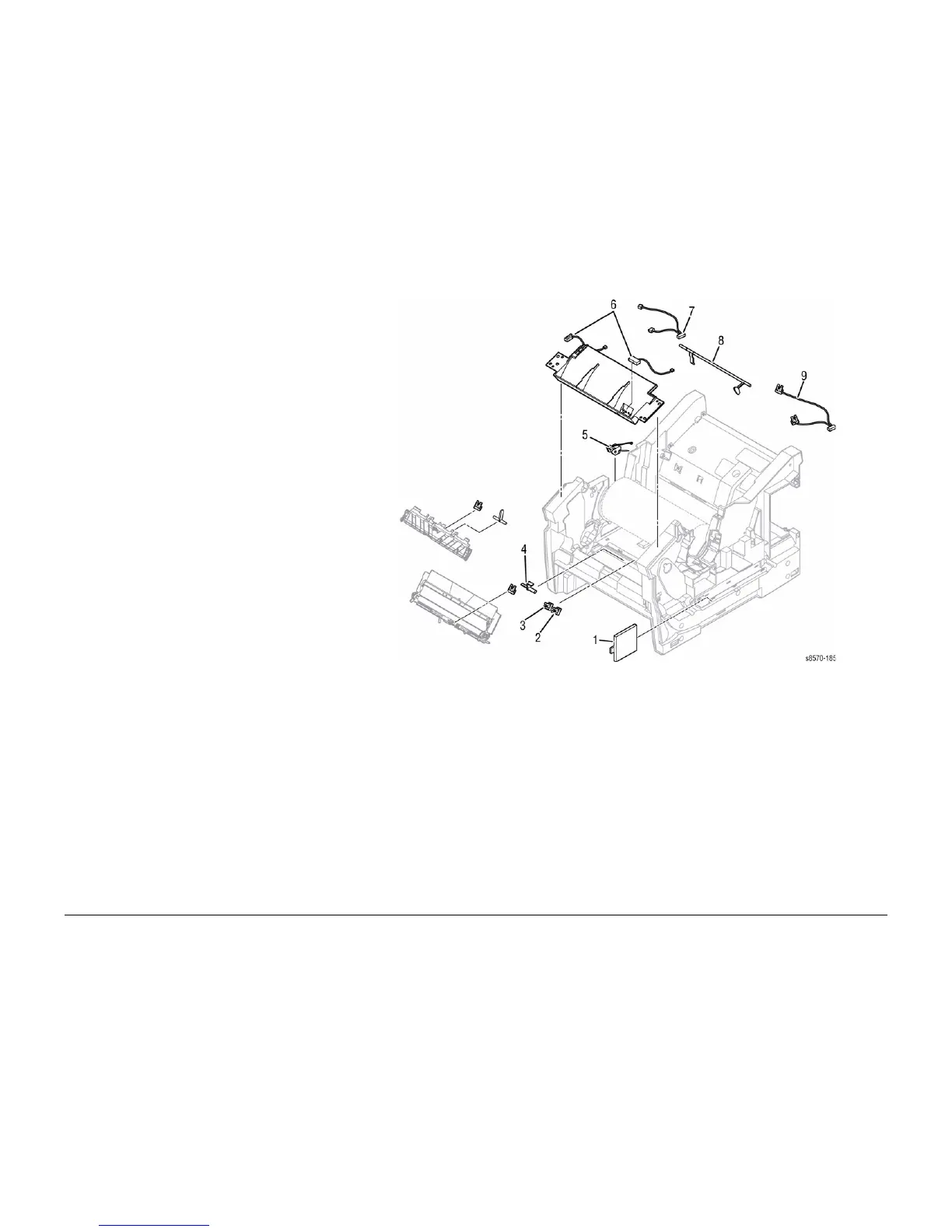

PL 6.1 Sensors and Actuators
Item Part Description
1 130K75230 Sensor, Paper Size Switch (Paper
Tray, Sensor Assembly)
2 130E11530 Optical Sensor Generic (Snap In)
(No Paper Sensor/ Paper Present
Sensor)
3 130E11530 Optical Sensor Generic (Snap In)
(Tray Lift/Paper Height Sensor)
4 130E11550 Paper Present Flag
5 930K01380 Sensor, Drum Temperature
6 110E20390 (Safety) Front Door/Exit Door
Interlock Switch
7 130E12620 Sensor, Waste Tray Opto
8 386732680 Engine Exit Flag
9 930K01500 Exit Module Sensor Assembly

Xerox COLORQUBE 8570 Specifications

General

Print Technology	Solid Ink
Monthly Duty Cycle	Up to 85, 000 pages
First Page Out Time (Color)	As fast as 5 seconds
First Page Out Time (B&W)	As fast as 5 seconds
Memory (Maximum)	1 GB
Output Capacity	350 sheets
Supported Operating Systems	Windows, Mac OS, Linux
Print Speed	Up to 40 ppm color / 40 ppm black
Connectivity	USB 2.0, Ethernet
Print Languages	PCL 6, PostScript 3, PDF
