Xerox COLORQUBE 8570 Service Manual

October 2012
4-56
ColorQube 8570/8870 Service Manual
REP 3.2, REP 3.3
Revised, 3rd Revision - Xerox Internal Use Only
Repairs and Adjustments
REP 3.2 Lower Inner Duplex Guide
Parts List on PL 3.1 Item 2
Removal
1. Open the Front Door.
2. Pull the tabs at the bottom of the Guide forward and let the Guide swing free.
3. Pry on the right, upper retainer inward, towards the center of the printer, to release it from
the boss and remove the Guide.

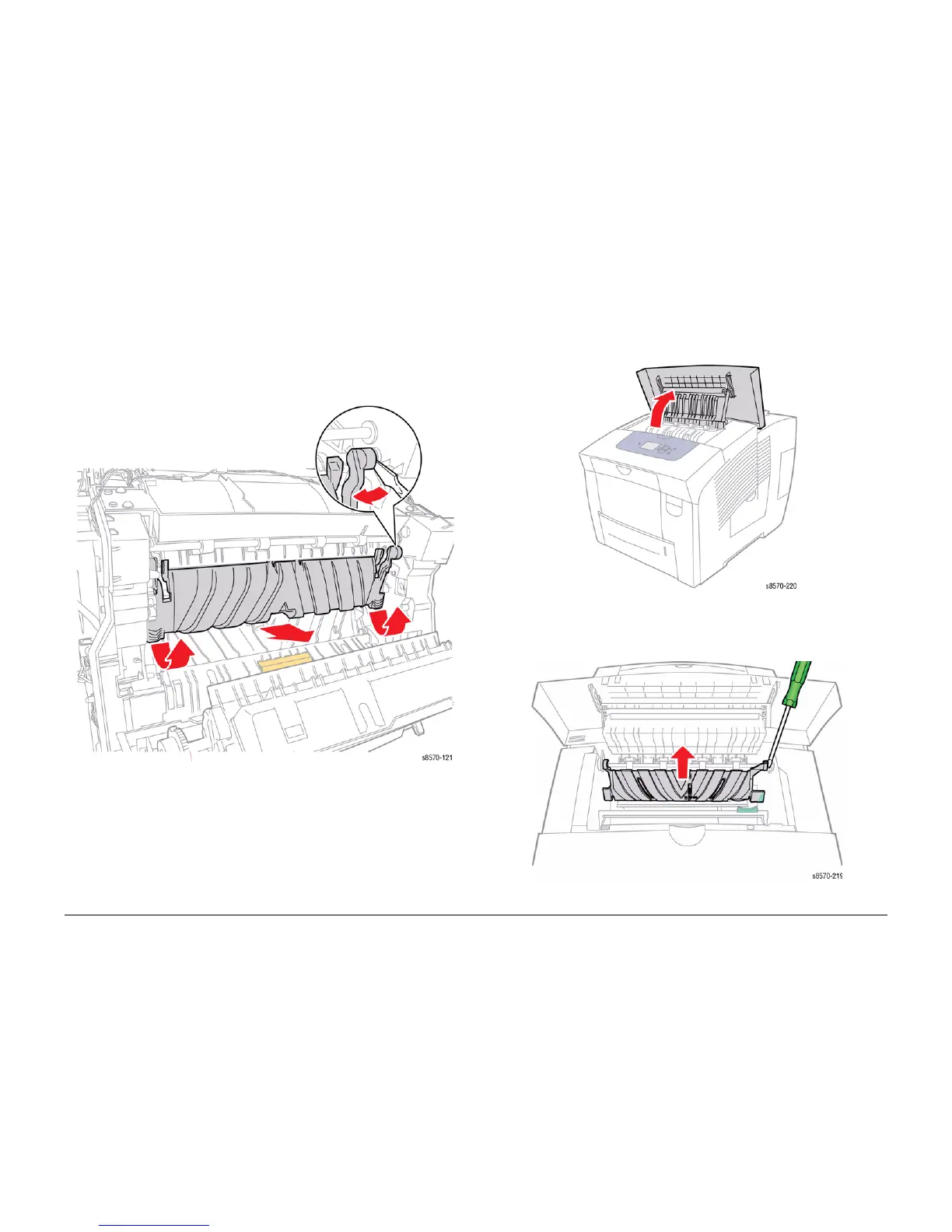

Figure 1 Removing the Lower Inner Duplex Guide
REP 3.3 Lower Exit Guide Assembly
Parts List on PL 3.1 Item 3
Removal
1. Open the Exit Cover.
Figure 1 Opening the Exit Cover
2. Release the Lower Exit Guide Assembly from the Exit Roller and remove the Lower Exit
Guide Assembly.
Figure 2 Removing the Lower Exit Guide Assembly

Xerox COLORQUBE 8570 Specifications

General

Print Technology	Solid Ink
Monthly Duty Cycle	Up to 85, 000 pages
First Page Out Time (Color)	As fast as 5 seconds
First Page Out Time (B&W)	As fast as 5 seconds
Memory (Maximum)	1 GB
Output Capacity	350 sheets
Supported Operating Systems	Windows, Mac OS, Linux
Print Speed	Up to 40 ppm color / 40 ppm black
Connectivity	USB 2.0, Ethernet
Print Languages	PCL 6, PostScript 3, PDF
