Xerox COLORQUBE 8570 Service Manual

October 2012
5-8
ColorQube 8570/8870 Service Manual
PL 5.1
Revised, 3rd Revision - Xerox Internal Use Only
Parts List

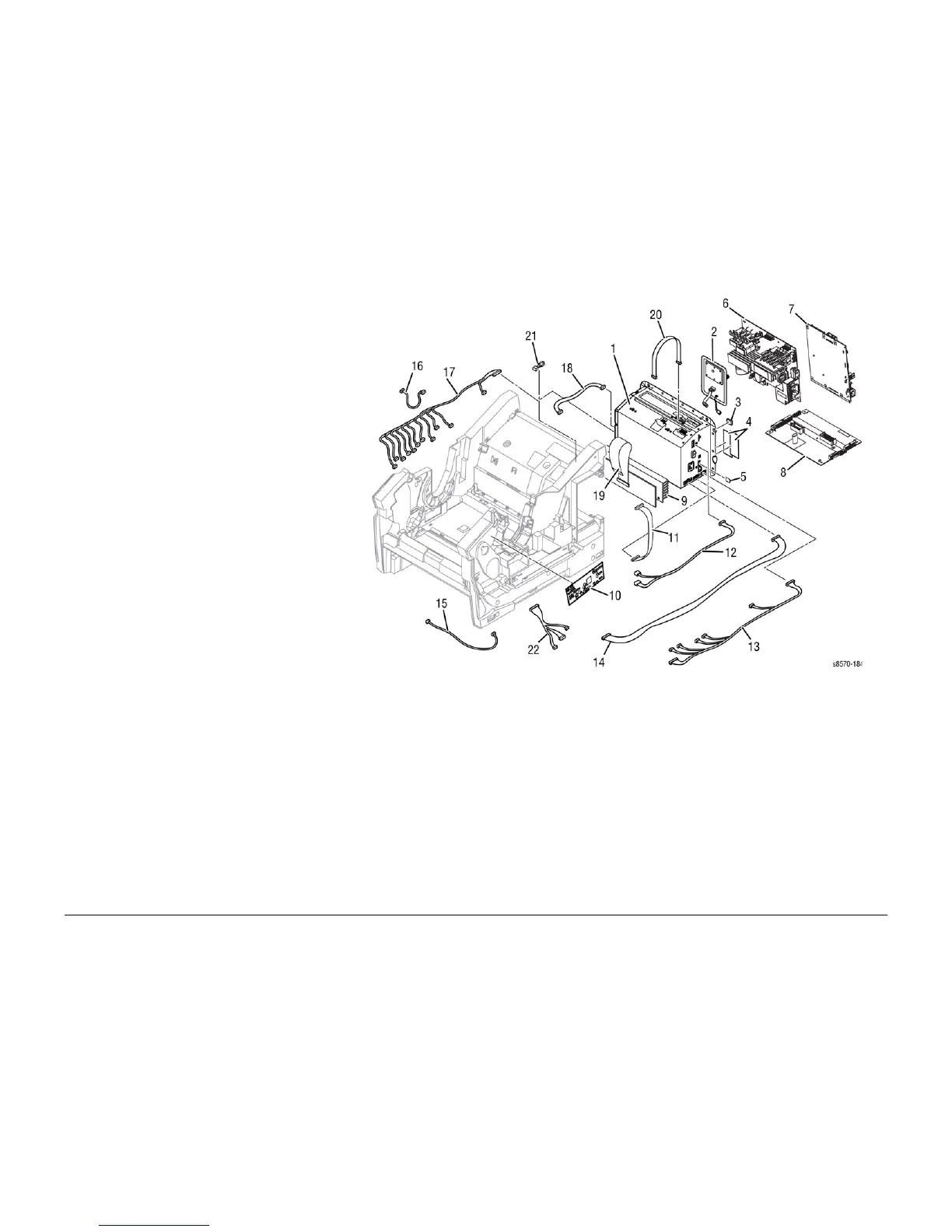

PL 5.1 Electrical
Item Part Description
1 084K37201 Electronics Module (w/o RAM,
Configuration Card, NVRAM)
2 121K50970 Hard Disk Drive
3 237E23660 8-pin NVRAM
4 237E24920 512 MB SDRAM, SO-DIMM, 200-
PIN DDR2
– 237E25600 1 GB SDRAM, SO-DIMM, 200-PIN
DDR2
5 069E00650 Configuration Card (8570DN)
– 069E00660 Configuration Card (8570N)
– 069E00670 Configuration Card (8870)
6 112E01180 Power Supply Board (P/O PL 5.1
Item 1)
7 160E02810 Main Controller Board (Image
Processor Main Board) (P/O PL 5.1
Item 1)
8 160E02800 Power Control Board (P/O PL 5.1
Item 1)
9 960K59601 Wave Amp Board
10 960K59610 I/O Board
11 117E36470 Cable, Ink Loader Data
12 117E36480 Cable, AC Heater, Drum, Preheater
13 117E36390 Harness, Right Side Power Control/
Drum Preheater AC Heater
14 117E29830 Cable, I/O Board Data
15 117E28780 Cable, Front Door
16 117E34880 Cable, Y-Axis Motor Ground Strap
17 117E36810 Harness, Left Side Power Control
18 117E36760 Cable, Wave Amp Signal
19 117E36970 Cable, ZIF, Wave Amp Drive
20 117E29840 Cable, Printhead Interface
21 952K00190 ASM, Jetstack Fuse
22 117E36740 Cable, Right Umbilical

Xerox COLORQUBE 8570 Specifications

General

Print Technology	Solid Ink
Monthly Duty Cycle	Up to 85, 000 pages
First Page Out Time (Color)	As fast as 5 seconds
First Page Out Time (B&W)	As fast as 5 seconds
Memory (Maximum)	1 GB
Output Capacity	350 sheets
Supported Operating Systems	Windows, Mac OS, Linux
Print Speed	Up to 40 ppm color / 40 ppm black
Connectivity	USB 2.0, Ethernet
Print Languages	PCL 6, PostScript 3, PDF
