Xerox COLORQUBE 8570 - REP 1.18 Tray 1 (MPT) Pick Roller Assembly

October 2012
4-16
ColorQube 8570/8870 Service Manual
REP 1.18
Revised, 3rd Revision - Xerox Internal Use Only
Repairs and Adjustments
REP 1.18 Tray 1 (MPT) Pick Roller Assembly
Parts List on PL 1.1 Item 18
Removal
1. Remove Tray 1 (REP 1.1).
2. Remove the 2 KL Clips on the left and right sides.
3. Remove the Gear.

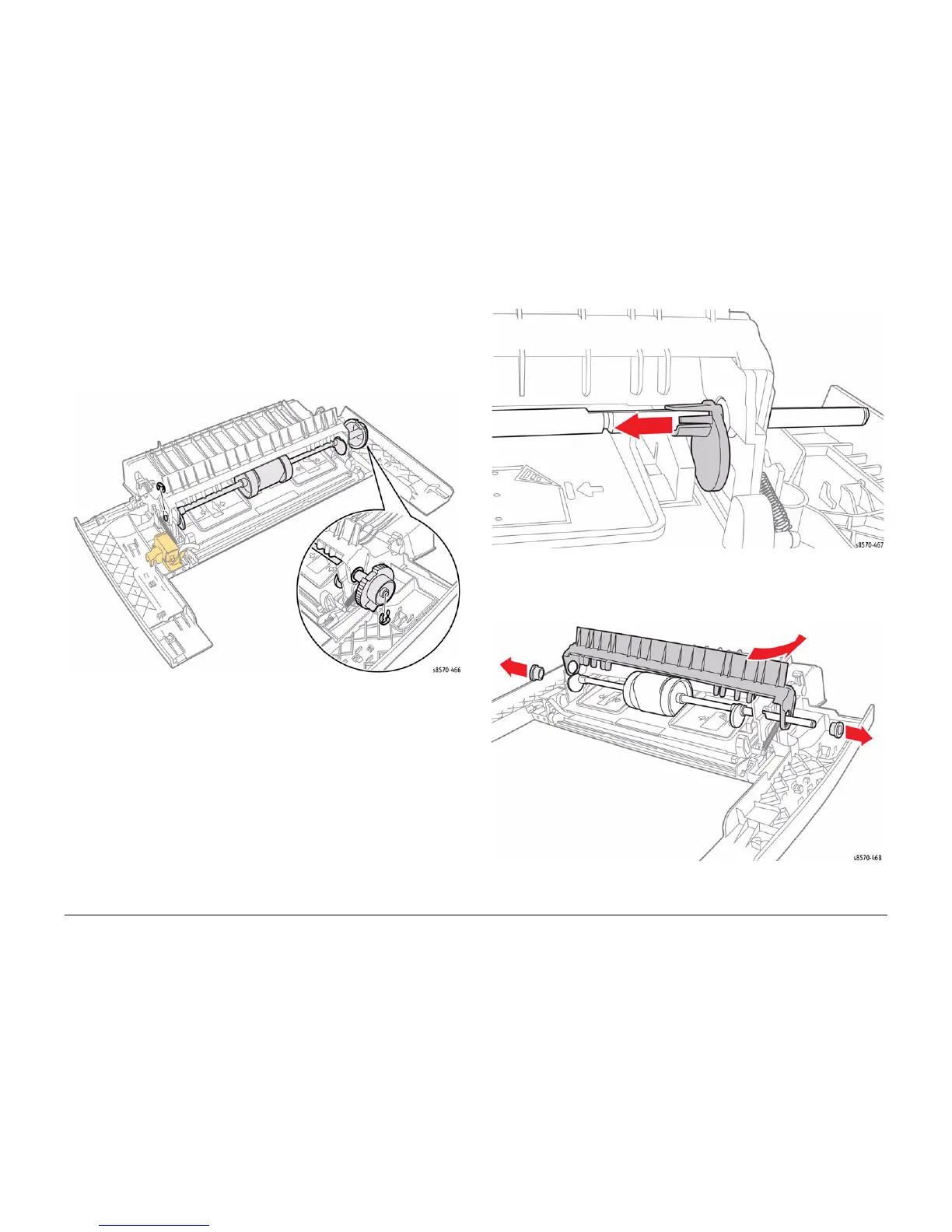

Figure 1 Removing the KL Clips and Gear
4. Lift the black Stopper and push towards the left side as shown in Figure 2.
Figure 2 Releasing the Stopper
5. Remove the 2 bearings on the left and right sides.
6. Slide the cover towards one side to remove it from the shaft.
Figure 3 Removing the Bearings and Cover
