October 2012
4-11
ColorQube 8570/8870 Service Manual
REP 1.11, REP 1.12
Repairs and Adjustments
Xerox Internal Use Only - Revised, 3rd Revision
REP 1.11 Right Side Cover
Parts List on PL 1.1 Item 11
Removal
1. Open the Exit Cover and Front Door.
2. Remove the Control Panel Cover (REP 1.5).
3. Remove 1 screw (metal, T-20) that secures the Right Side Cover.
4. Pull the Right Side Cover forward to release the hooks located near the AC connection
and release the front hook while pulling the Right Side Cover outward at the top.

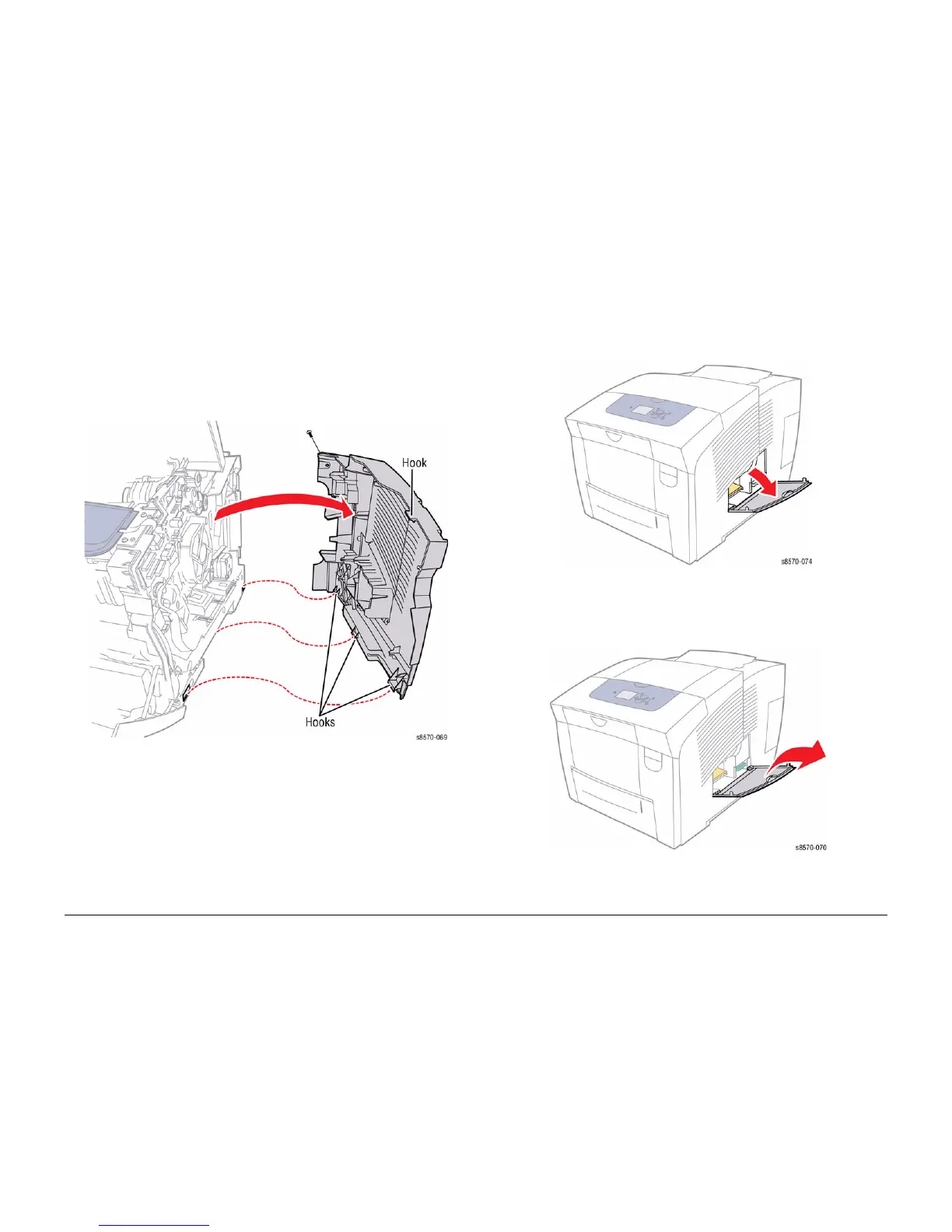

Figure 1 Removing the Right Side Cover
REP 1.12 Drum Maintenance Door
Parts List on PL 1.1 Item 12
Removal
1. Open the Drum Maintenance Door.
Figure 1 Opening the Drum Maintenance Door
2. Press the left and right sides of the Drum Maintenance Door towards the middle to
release the tabs from the Right Cover and pull the Drum Maintenance Door towards you
to remove it.
Figure 2 Removing the Drum Maintenance Door
