Xerox COLORQUBE 8570 Service Manual

October 2012
6-10
ColorQube 8570/8870 Service Manual
Service Diagnostics Menu Maps
Revised, 3rd Revision - Xerox Internal Use Only
General Troubleshooting
Service Diagnostics Menu Maps
The ColorQube 8570/8870 Service Diagnostics Menu Maps are not available from the Control
Panel. Figure 1 and Figure 2 contain the list of functions available in the Service Diagnostics
Menu.

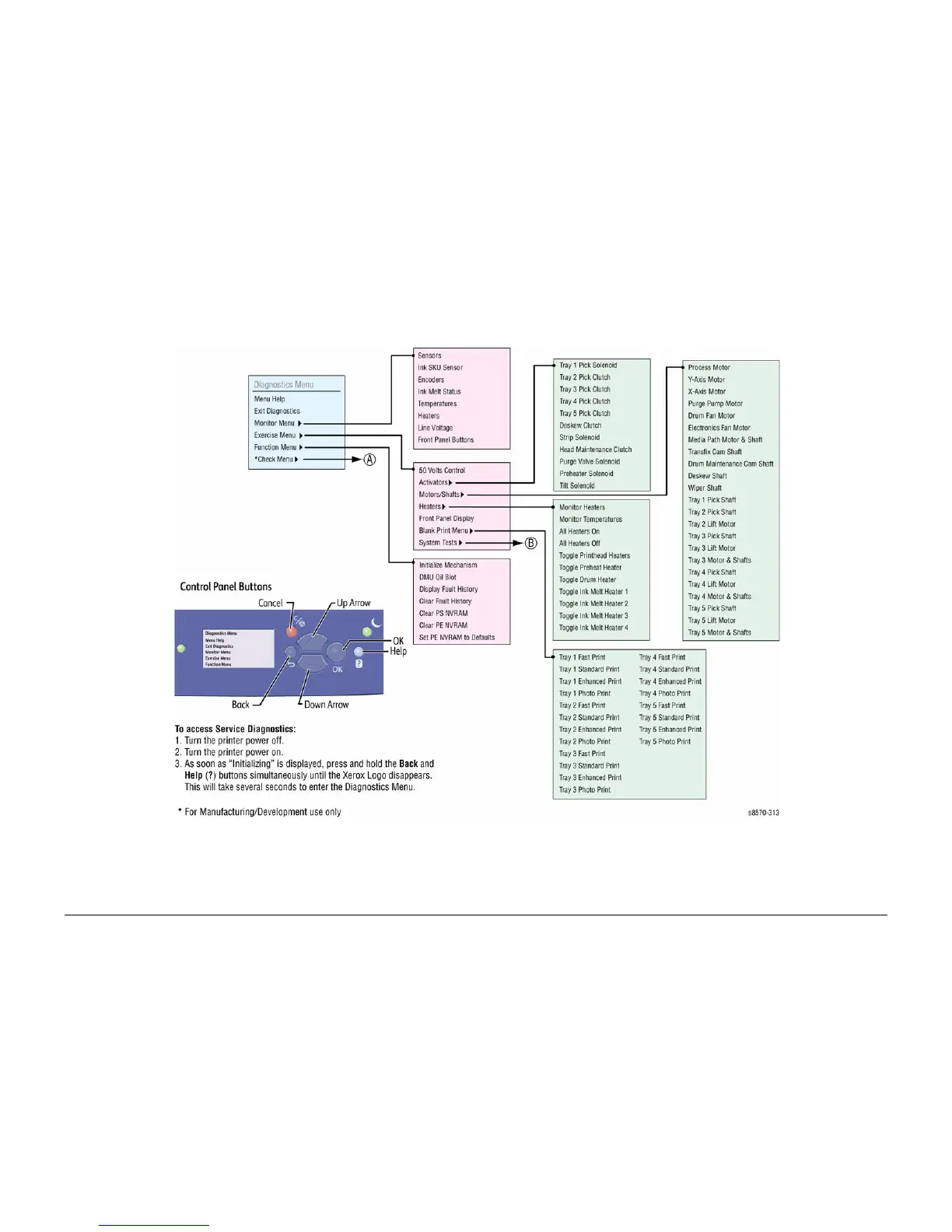

Figure 1 Service Diagnostics Menu Map (1 of 2)
